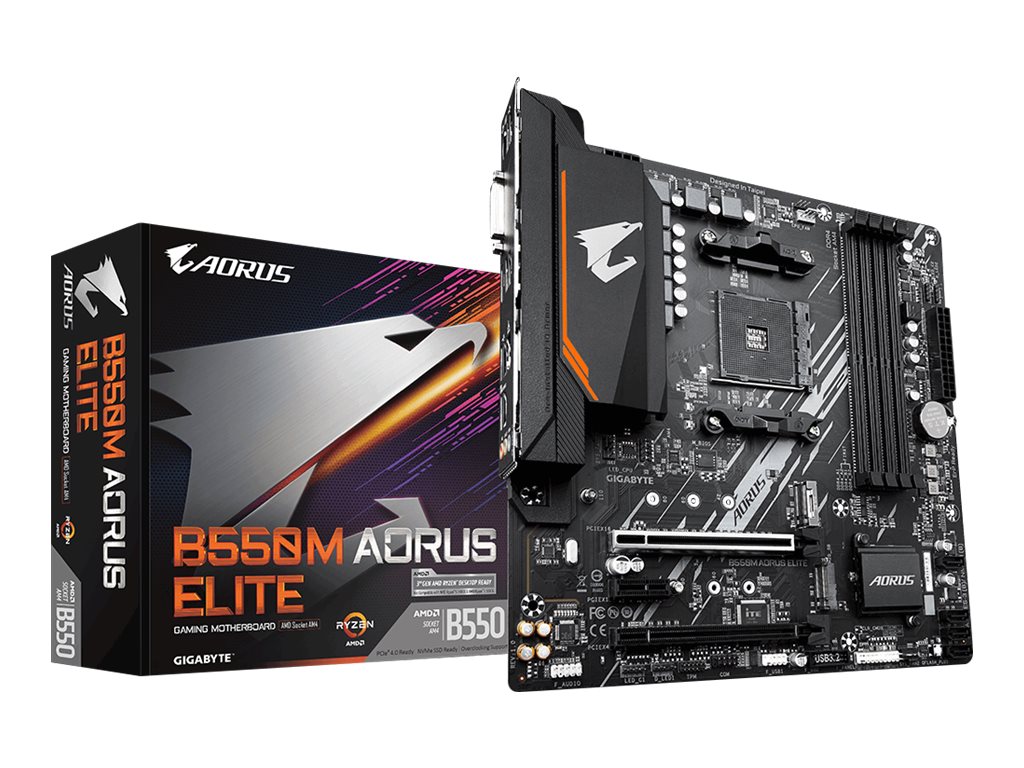

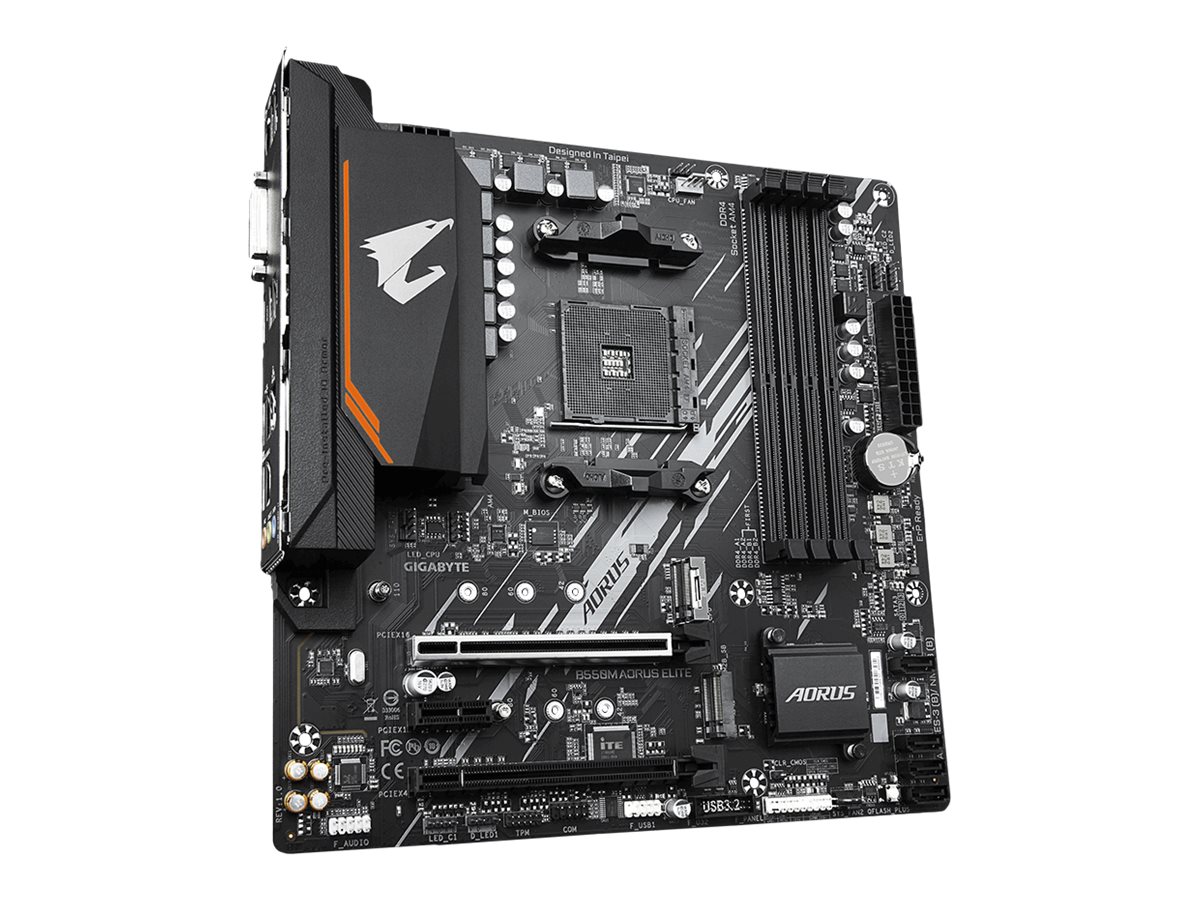

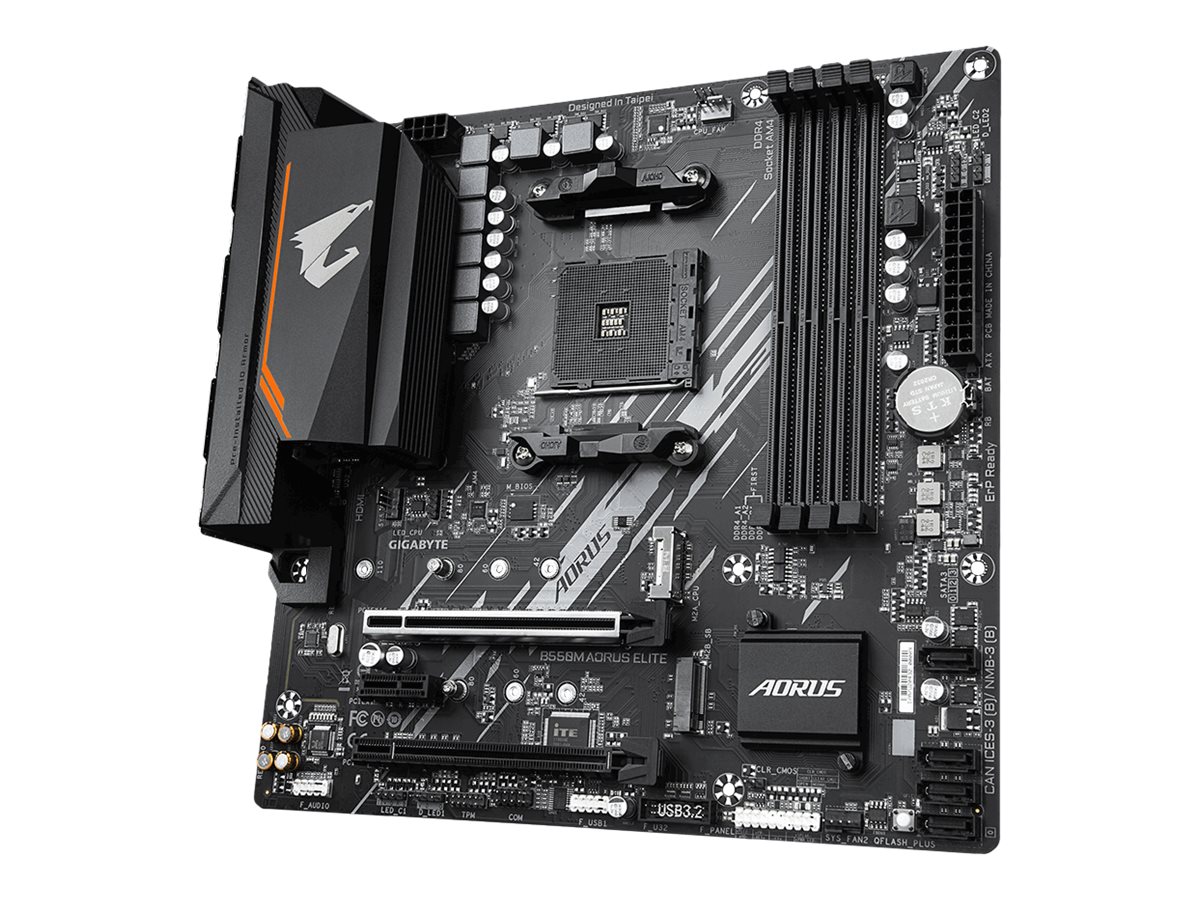

Gigabyte B550M AORUS ELITE Micro-ATX AM4 AMD B550

Gigabyte B550M AORUS ELITE - 1.0 - bundkort - micro-ATX - Socket AM4 - AMD B550 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
790,00DKK632,00DKK excl. VAT
  • Product no 996052608

    Model B550M AORUS ELITE

    Brand
    Go to brand's website

    EAN 4719331809546

    Weight 1.15 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Gigabyte B550M AORUS ELITE - 1.0 - bundkort - micro-ATX - Socket AM4 - AMD B550
Produkttype Bundkort - micro-ATX
Chipsættype AMD B550
Processor-socket 1 x Socket AM4
Kompatible processorer Ryzen (understøtter 3. Generation Ryzen and New Generation Ryzen med Radeon Graphics)
Max RAM-størrelse 128 GB
RAM understøttet 4 DIMM åbninger - DDR4, ikke-ECC, ECC, ikke bufferet
Lagringsporte 4 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte 4 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser)
Maks. allokeret RAM-størrelse 16 GB
Audio HD Audio (8-kanaler)
LAN Gigabit Ethernet
General
Chipset Type AMD B550
Compatible Processors Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics)
Max Processors Qty 1
Processor Socket Socket AM4
Product Type Motherboard - micro ATX
Supported RAM
Bus Clock 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4733 MHz (O.C.)
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size 128 GB
Registered or Buffered Unbuffered
Supported RAM Integrity Check Non-ECC, ECC
Technology DDR4
Graphics
Max Allocated RAM Size 16 GB
Audio
Audio Codec Realtek ALC887
Compliant Standards High Definition Audio
Type HD Audio (8-channel)
LAN
Network Interfaces Gigabit Ethernet
Expansion / Connectivity
Expansion Slots 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with 3nd Generation Ryzen with Radeon Graphics CPU)) | 1 x PCIe 3.0 x16 (x4 mode) | 1 x PCIe 3.0 x1

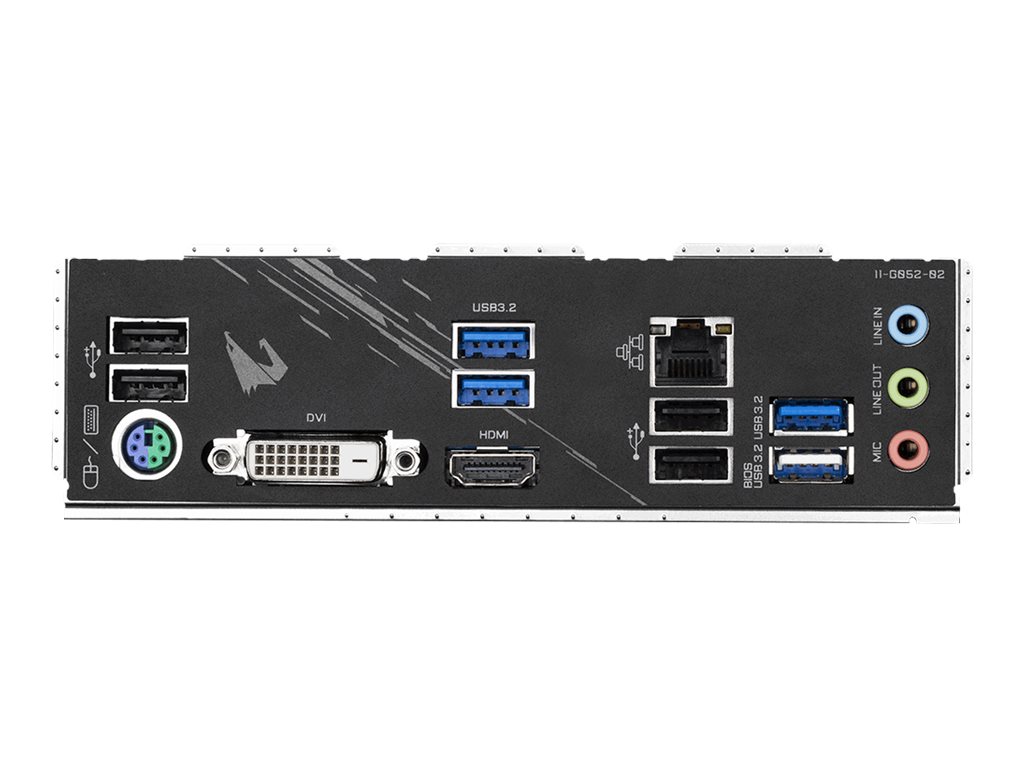

Interfaces 1 x LAN (Gigabit Ethernet) | 1 x PS/2 keyboard / mouse | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x DVI-D | 1 x HDMI | 4 x USB 3.2 Gen 1 | 4 x USB 2.0
Internal Interfaces 1 x USB 2.0 - header | 1 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x serial - header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2
Features
BIOS Features WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
BIOS Type AMI
Hardware Features On/Off Charge, Ultra Durable, Q-Flash Plus, Game Boost, Audio Noise Guard, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, GIGABYTE Smart Fan 5, Ultra Durable PCIe Armor, Solid Pin Power Connectors, RGB FUSION 2.0, 5+3 Phase Power Design
Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage
Miscellaneous
Depth 24.4 cm
Software Included Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control
Width 24.4 cm
