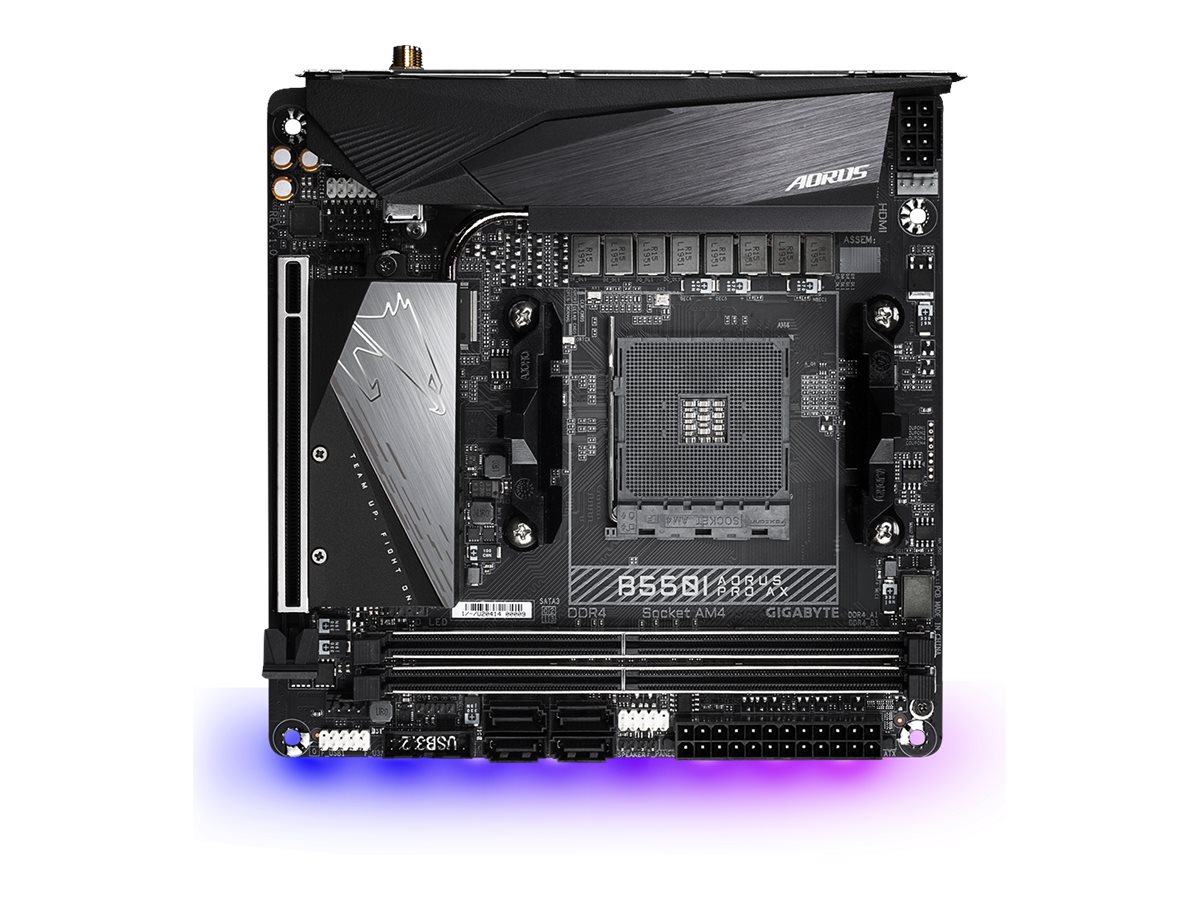

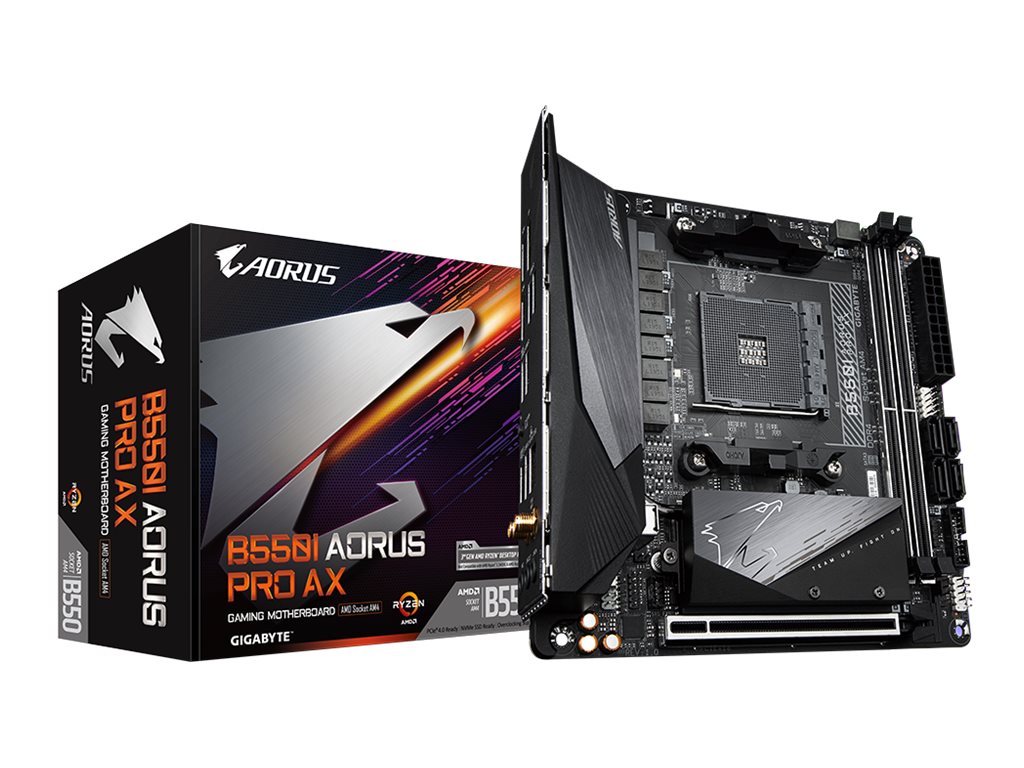

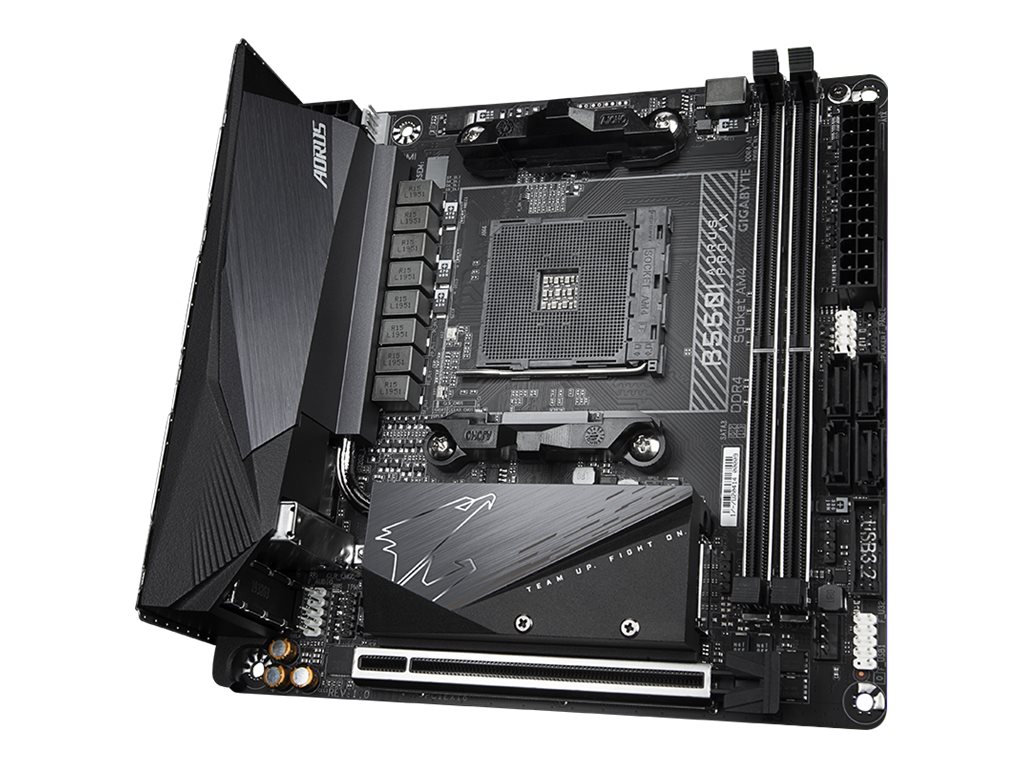

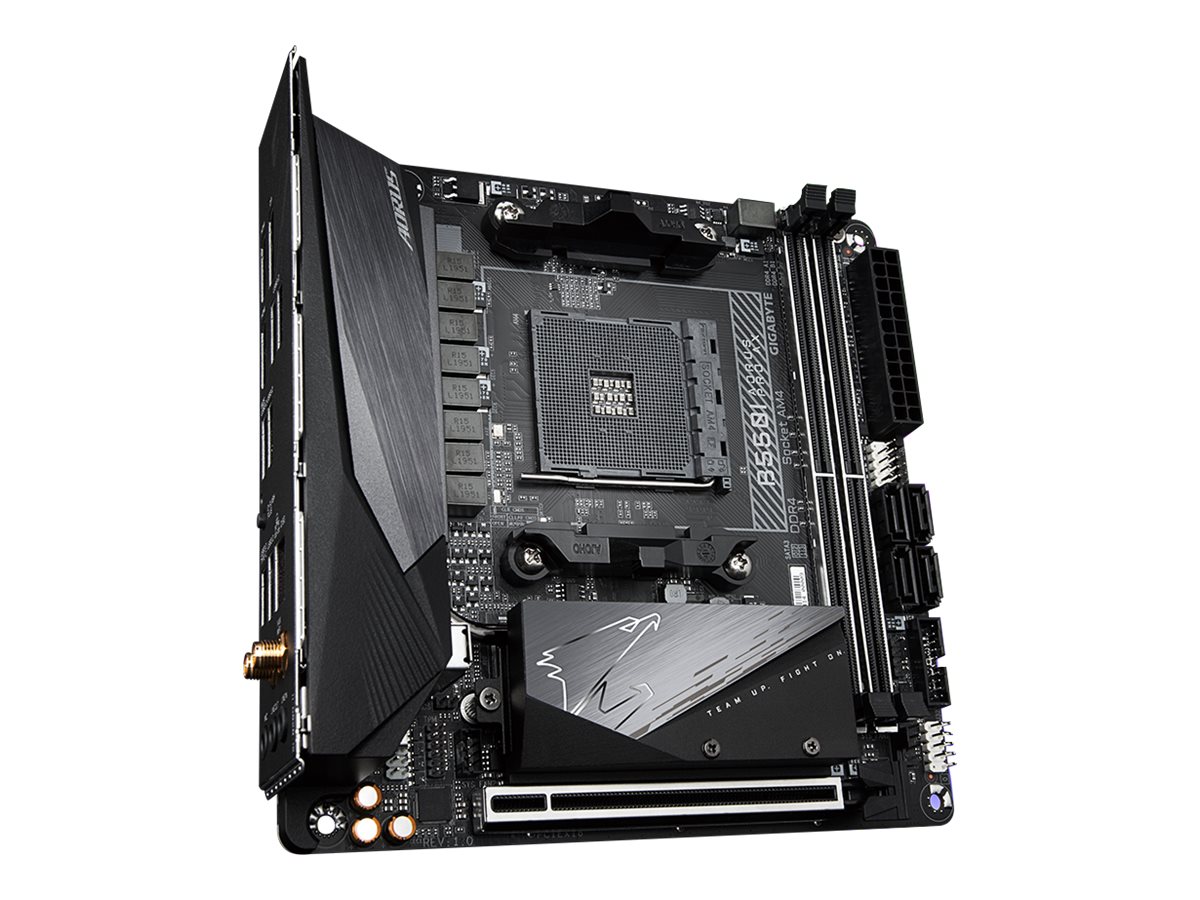

Gigabyte B550I AORUS PRO AX Mini ITX AM4 AMD B550

Gigabyte B550I AORUS PRO AX - 1.0 - bundkort - mini ITX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
1 322,00DKK1 057,60DKK excl. VAT
  • Product no 996103255

    Model B550 I AORUS PRO AX

    Brand
    Go to brand's website

    EAN 4719331809508

    Weight 1.3 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Gigabyte B550I AORUS PRO AX - 1.0 - bundkort - mini ITX - Socket AM4 - AMD B550
Produkttype Bundkort - mini ITX
Chipsættype AMD B550
Processor-socket 1 x Socket AM4
Kompatible processorer Ryzen (understøtter 3. Generation Ryzen and New Generation Ryzen med Radeon Graphics)
Max RAM-størrelse 64 GB
RAM understøttet 2 DIMM slots - DDR4, ikke-ECC, ECC, ikke bufferet
Lagringsporte 4 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser)
Maks. allokeret RAM-størrelse 16 GB
Audio HD Audio (8-kanaler)
LAN 2.5 Gigabit Ethernet, Bluetooth 5.0, 802.11a/b/g/n/ac Wave 2/ax
General
Chipset Type AMD B550
Compatible Processors Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics)
Max Processors Qty 1
Processor Socket Socket AM4
Product Type Motherboard - mini ITX
Supported RAM
Bus Clock 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4866 MHz (O.C.)
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size 64 GB
Registered or Buffered Unbuffered
Supported RAM Integrity Check Non-ECC, ECC
Technology DDR4
Graphics
Max Allocated RAM Size 16 GB
Audio
Audio Codec Realtek ALC1220-VB
Compliant Standards High Definition Audio
Type HD Audio (8-channel)
LAN
Network Interfaces 2.5 Gigabit Ethernet, Bluetooth 5.0, 802.11a/b/g/n/ac Wave 2/ax
Expansion / Connectivity
Expansion Slots 1 x CPU | 2 x DIMM 288-pin | 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with New Generation Ryzen with Radeon Graphics CPU))

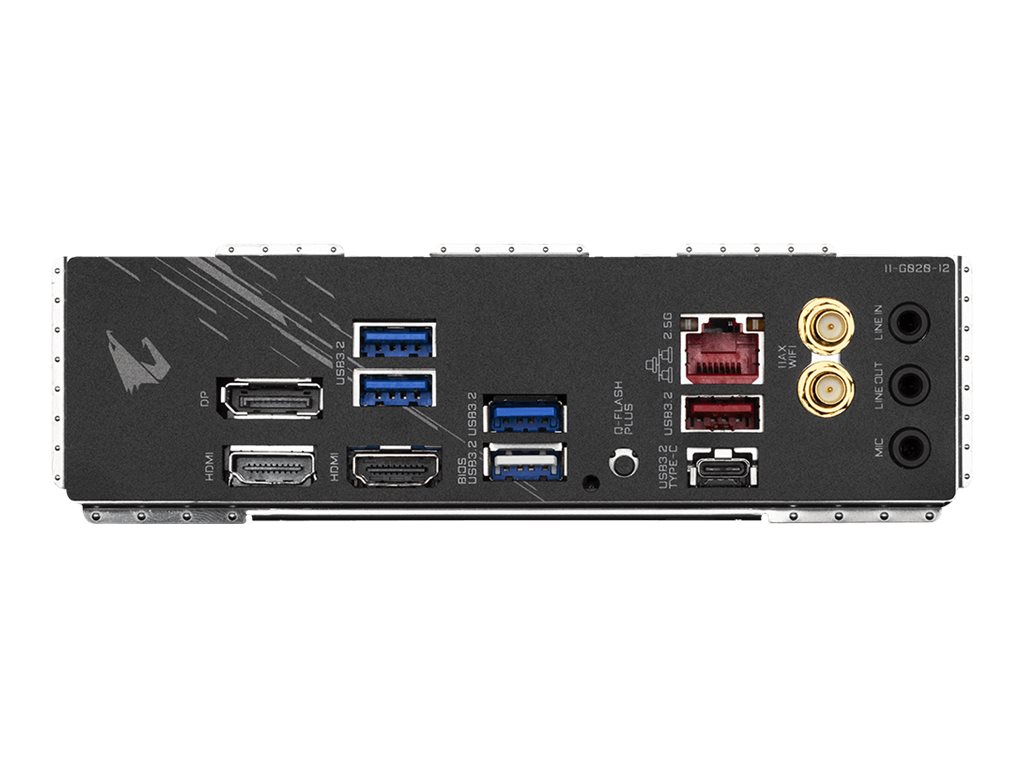

Interfaces 1 x LAN (2.5Gigabit Ethernet) | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 2 x HDMI | 4 x USB 3.2 Gen 1 | 1 x USB-C Gen2 | 1 x USB 3.2 Gen 2 | 1 x DisplayPort
Internal Interfaces 2 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x speaker - header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2
Features
BIOS Features WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
BIOS Type AMI
Hardware Features Q-Flash, 8 Phase Power Design, On/Off Charge, GIGABYTE AMP-UP Audio, 8 Layer PCB, Q-Flash Plus, Nichicon Fine Gold Series Audio Capacitors, Ultra Durable Memory Armor, GIGABYTE Smart Fan 5, Ultra Durable PCIe Armor, M.2 Thermal Guard, pre-mounted I/O
Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage
Miscellaneous
Depth 17 cm
Software Included Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, XSplit Gamecaster (1 year license), XSplit Broadcaster (1 year license), Realtek Gaming LAN Bandwidth Control
Width 17 cm
