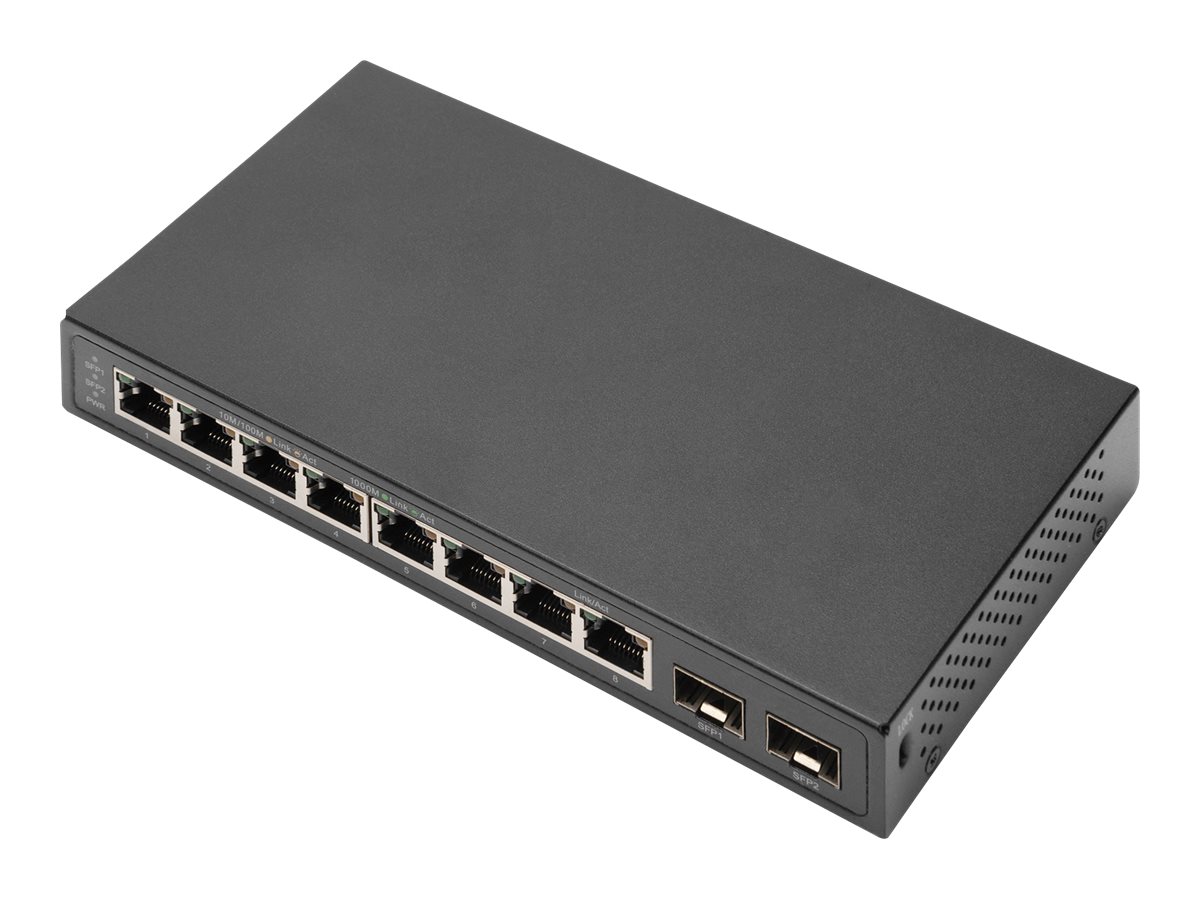

DIGITUS DN-80067 Switch 8-porte Gigabit
DIGITUS DN-80067 - Switch - ikke administreret - 8 x 10/100/1000 + 2 x SFP (mini-GBIC) (uplink) - desktop, væg-monterbar
825,00DKK660,00DKK excl. VAT
-
Product no 1000780810
Model DN-80067
Brand DIGITUS
EAN 4016032478706
Weight 0.378 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | DIGITUS DN-80067 - switch - 8 porte - ikke administreret |
| Enhedstype | Switch - 8 porte - ikke administreret |
| Undertype | Gigabit Ethernet |
| Porte | 8 x 10/100/1000 + 2 x SFP (mini-GBIC) (uplink) |
| Præstation | Bagplanshastighed: 20 Gbps<br>Bufferhukommelse: 1,5 Mbit<br>Pakkevideresendelseshastighed: 14,88 Mbps |
| MAC adresse table størrelse | 4K indtastningshukommelse |
| Jumborammesupport | 9216 byte |
| Egenskaber | Auto-uplink (auto MDI/MDI-X), gem og send, fuld dupleksmodus, RTL8370MB+RTL8231 chipset |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Effekt | DC 12 V |
| Dimensioner (B x D x H) | 19 cm x 10 cm x 2.8 cm |
| Vægt | 378 g |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Device Type | Switch - 8 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Features | Auto-uplink (auto MDI/MDI-X), store and forward, full duplex mode, RTL8370MB+RTL8231 chipset |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 4K entries |
| Performance | Backplane speed: 20 Gbps | Buffer memory: 1.5 Mbit | Packet forwarding rate: 14.88 Mbps |
| Ports | 8 x 10/100/1000 + 2 x SFP (mini-GBIC) (uplink) |
| Status Indicators | Active, speed, link |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 | 2 x 1000Base-T (uplink) SFP |
| Power | |
| Power Consumption Operational | 5.78 Watt |
| Voltage Required | DC 12 V |
| Dimensions & Weight | |
| Depth | 10 cm |
| Height | 2.8 cm |
| Weight | 378 g |
| Width | 19 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 15.8 cm |
| Shipping Height | 7.9 cm |
| Shipping Weight | 810 g |
| Shipping Width | 25.6 cm |
| Environmental Parameters | |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
