Cisco VoIP-telefonadapter Ethernet Fast Ethernet Sort

Cisco - VoIP-telefonadapter - 100Mb LAN - vægmonterbar - for ATA 191
932,00DKK745,60DKK excl. VAT

OBS: Kommer kun med UK-stik

  • Product no 994547143

    Model ATA191-3PW-K9

    Brand Cisco Systems

    EAN 0889728031622

    Weight 0.47 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Cisco - VoIP-telefonadapter
Enhedstype VoIP-telefonadapter
Formfaktor Vægmonterbar
Dataforbindelsesprotokol Ethernet, Fast Ethernet
VoIP-protokoller SIP, RTCP, RTP, SRTP
Grænseflader til telefoni 2 telefoner (FXS)
Effekt AC 120/230 V / DC 5 V
Dimensioner (B x D x H) 10 cm x 2.8 cm x 10 cm
Vægt 132.1 g
Producentgaranti 1 års garanti
Designet for ATA 191
General
Depth 2.8 cm
Device Type VoIP phone adapter
Height 10 cm
Weight 132.1 g
Width 10 cm
Networking
Compliant Standards IEEE 802.1Q, IEEE 802.1p, G.729a, G.729ab, G.726, G.711 (μ-law), G.711 (A-law)
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet
Encryption Algorithm TLS 1.1, TLS 1.2
Features NAT support, Syslog support, DiffServ support, SNTP support, Quality of Service (QoS), reset button, LLDP support, Type of Service (ToS), dual image support, AES encryption, Cisco Discovery Protocol, Zero-touch provisioning (ZTP), secure boot, VLAN T
Form Factor Wall mountable
Network / Transport Protocol TCP/IP, UDP/IP, PPPoE, ARP, DHCP, RTP, HTTP, HTTPs
Remote Management Protocol SNMP 3, TFTP, SSH, TR-069, ICMP, IPv4, IPv6
Status Indicators Power, phone
IP Telephony
IP Telephony Features Echo cancellation, comfort noise generation (CNG), voice activity detection (VAD), caller ID, call waiting, automatic fax/modem detection and pass-through, distinctive ringing, call transfer, silence suppression, dynamic jitter buffer, Do-not-disturb
Telephony Interfaces 2 phone (FXS)
Voice Codecs G.711, T.38
VoIP Protocols SIP, RTCP, RTP, SRTP
Expansion / Connectivity

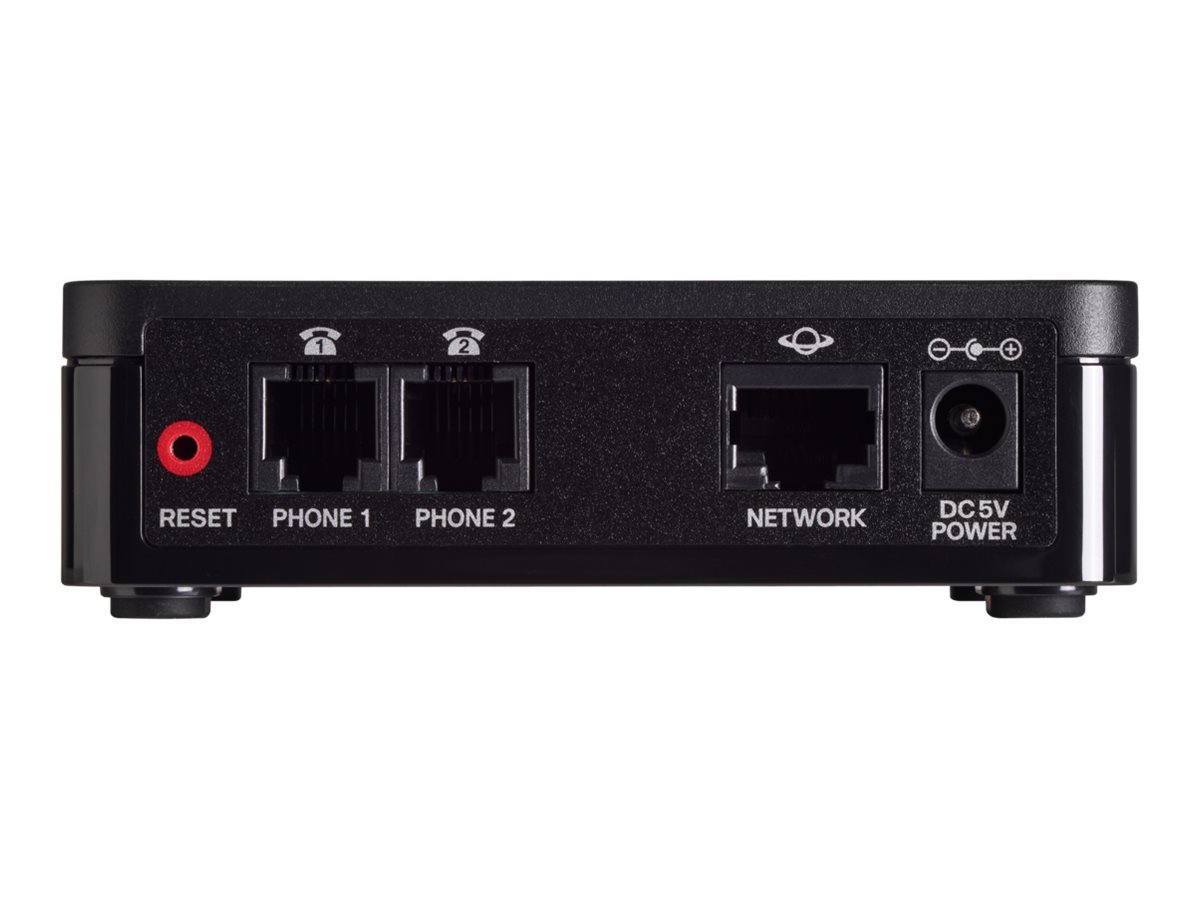

Interfaces 2 x FXS - RJ-11 | 2 x 100Base-TX - RJ-45
Miscellaneous
Compliant Standards ETSI, FCC Part 15 B, EN 61000-4-2:2009, EN 61000-4-11:2004, EN 61000-3-3:2013, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-8:2010, EN 61000-4-5:2014, EN 55024:2010+A1:2015, EN 61000-4.4:2012, UL 60950 Second Edition, CAN/CSA C22.2 No. 60950 Second
MTBF 300,000 hours
Power
Power Consumption Operational 5 Watt
Power Device External power adapter
Voltage Required AC 120/230 V / DC 5 V
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Environmental Parameters
Humidity Range Operating 10 - 90% (non-condensing)
Max Operating Temperature 40 °C
Min Operating Temperature 0 °C
Compatibility Information
Designed For Cisco ATA 191
