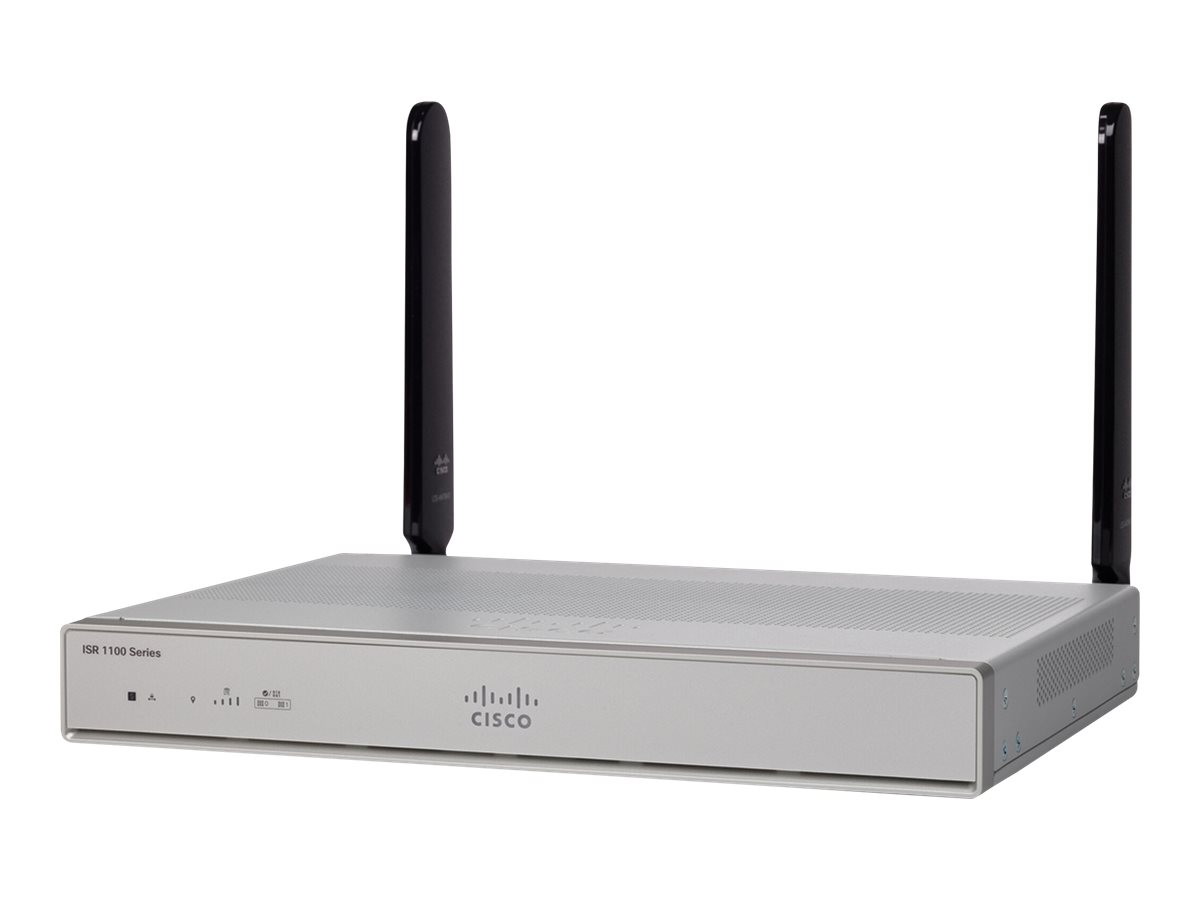

Cisco Integrated Services Router 1117 Router 4-port switch Kabling
Cisco Integrated Services Router kombinerer WAN, omfattende sikkerhed, kablet og trådløs adgang i en enkelt, højtydende platform.
-
Product no 993948957
Model C1117-4P
Brand Cisco Systems
EAN 0889728058995
Weight 3.15 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Cisco Integrated Services Router 1117 - router - DSL-modem - desktop |
| Enhedstype | Router - DSL-modem - 4-port switch (integreret) |
| Pakningstype | Desktop |
| Protokol for digital signaltransmission | ADSL2+, VDSL2+ |
| Antal WAN porte | 2 |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Præstation | Krypteringsgennemløb: 250 Mbps |
| Netværks/overføselsprotokol | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Protokol til fjernadministration | SNMP, RMON, CLI, TR-069 |
| Egenskaber | CBWFQ, WRED, ACL support, QoS, DMVPN, 2T2R MIMO teknologi, NetFlow, MRC, IPFIX, CSD, LISP, pakkesammenlægning A-MPDU, pakkesammenlægning A-MSDU, MIB II, AVC, AAA, DFS, ERSPAN, EEM |
| Overensstemmelsesstandarder | IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2 |
| Effekt | AC 120/230 V (50/60 Hz) |
| Dimensioner (B x D x H) | 32.3 cm x 23 cm x 4.2 cm |
| Vægt | 2.59 kg |
| Producentgaranti | 1 års garanti |
| General | |
|---|---|
| Authentication Method | RADIUS |
| Compliant Standards | IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Device Type | Router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Encryption Algorithm | DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA |
| Features | Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), 2T2R MIMO technology, NetFlow, Maximum Ratio Combining (MRC), IPFIX, cycli |
| Flash Memory | 4 GB |
| Network / Transport Protocol | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Performance | Encryption throughput: 250 Mbps |
| RAM | 4 GB |
| Remote Management Protocol | SNMP, RMON, CLI, TR-069 |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| Status Indicators | Status |
| Communications | |
| Digital Signaling Protocol | ADSL2+, VDSL2+ |
| Protocols & Specifications | ITU G.992.5 Annex M, ITU G.993.2, ITU G.992.3 Annex M |
| Type | DSL modem |
| Expansion / Connectivity | |
| Interfaces | WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP | LAN: 2 x 1000Base-T - RJ-45 | LAN: 1 x 1000Base-T (PoE+) - RJ-45 | LAN: 1 x 1000Base-T (PoE) - RJ-45 | USB 3.0: 1 x console | WAN: 1 x VDSL2 / ADSL2+ |
| Power | |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Dimensions & Weight | |
| Depth | 23 cm |
| Height | 4.2 cm |
| Weight | 2.59 kg |
| Width | 32.3 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | 0 °C |
Let, kompakt størrelse med lavt strømforbrug
Kan anvendes i mange forskellige miljøer, hvor plads, varmeafledning og lavt strømforbrug er kritiske faktorer.
Høj ydeevne til at køre samtidige tjenester
Høj ydeevne giver kunderne mulighed for at drage fordel af bredbåndsnetværkshastigheder, mens de kører sikre, samtidige data-, stemme-, video- og trådløse tjenester.
Konsekvente, høje applikationsydelsesniveauer
Routeren kan køre flere tjenester samtidigt med minimal forringelse af ydeevnen.
Samlet kontrol af kablede og trådløse netværk fra en fælles konsol
Forenkler og centraliserer konfiguration og administration af trådløse enheder. Understøtter WLAN-tjenester uden at kræve en trådløs LAN-controller.
