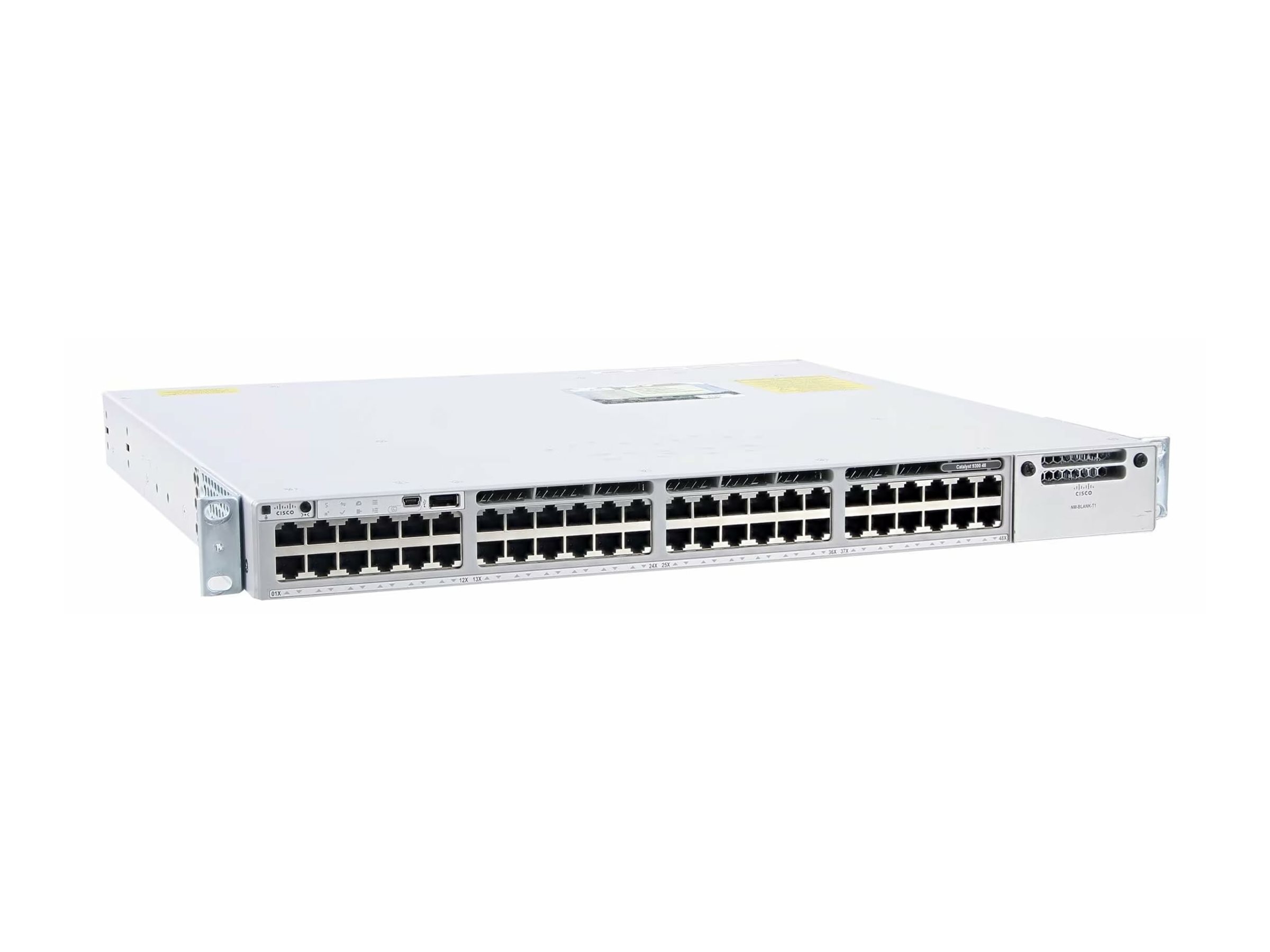

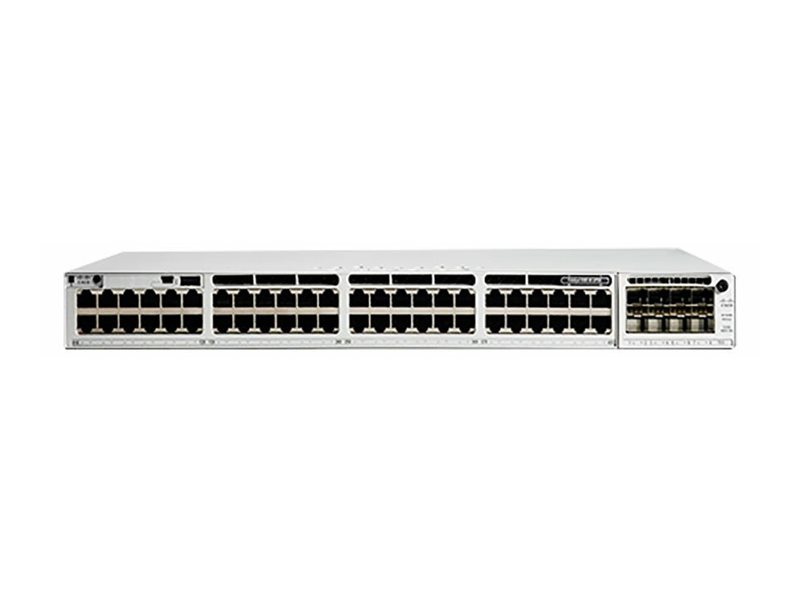

Cisco Catalyst 9300 Switch 48-porte Gigabit
Cisco Catalyst 9300 - Network Advantage - switch - L3 - Administreret - 48 x 10/100/1000 - monterbar på stativ
72 518,00 DKK
58 014,40 DKK excl. VAT
Catalyst 9300-serien er en avanceret stabelbar switching-platform. Disse netværksswitche er bygget til sikkerhed, IoT og cloud.
-
Product no 993095621
Model C9300-48T-A
Brand Cisco Systems
EAN 0889728051637
Weight 9.98 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Cisco Catalyst 9300 - Network Advantage - switch - 48 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 48 porte - L3 - Administreret - kan stables |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 48 x 10/100/1000 |
| Præstation | Omkoblingskapacitet: 128 Gbps<br>Stablende båndbredde: 480 Gbps<br>Videresendelseshastighed: 190,48 Mpps |
| Kapacitet | IPv4 indtastning i routing-tabel: 32000<br>IPv6 indtastning i routing-tabel: 16000<br>Flexible NetFlow entries: 64000<br>VLAN ID'er: 4000<br>Switched virtual interfaces (SVIs): 2000 |
| MAC adresse table størrelse | 32.000 optegnelser |
| Jumborammesupport | 9198 byte |
| Routingprotokol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, police-baseret routing (PBR), RIPng |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Egenskaber | DHCP-understøttelse, trunking, Syslog understøttet, fuld dupleksmodus, SSO, CBWFQ, WRED, STP support, ACL support, QoS, NSR, RSPAN, MIB, Cisco StackWise-480 teknologi, Cisco StackPower-teknologi, FNF, MSDP, 802.1x autentificering, 16 MB pakkebuffer, FTP klient, MACsec support, 3 blæsere, CoPP, VXLAN, AVC, SSM, integreret Wireshark, VLAN Double Tagging (Q-in-Q), EoMPLS, H-VPLS, Private VLAN, L3VPN support, ERSPAN, SGT caching, SGACL, ITSM integration, tredjeparts IPAM-integrering |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Effekt | AC 120/230 V (50 - 60 Hz) |
| Overskudsspænding | Valgfri |
| Dimensioner (B x D x H) | 44.5 cm x 44.5 cm x 4.4 cm |
| Vægt | 7.45 kg |
| Systemkrav | Cisco IOS Universal |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Capacity | IPv4 routing table entries: 32000 | IPv6 routing table entries: 16000 | Flexible NetFlow entries: 64000 | VLAN IDs: 4000 | Switched virtual interfaces (SVIs): 2000 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | 128-bit AES |
| Features | DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality o |
| Flash Memory | 16 GB |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32000 entries |
| Performance | Switching capacity: 128 Gbps | Stacking bandwidth: 480 Gbps | Forwarding rate: 190.48 Mpps |
| Ports | 48 x 10/100/1000 |
| RAM | 8 GB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng |
| Status Indicators | Status |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 expansion slot |
| Interfaces | 48 x 1000Base-T RJ-45 | 1 x USB 2.0 |
| Power | |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 350 Watt |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSM |
| MTBF | 305,870 hours |
| Software / System Requirements | |
| OS Required | Cisco IOS Universal |
| Software Included | Cisco ONE C9300 DNA Advantage 48-port Term license, 25 x Cisco ONE ISE BASE Licenses Term, 25 x Cisco ONE ISE PLUS Licenses Term, Cisco ONE StealthWatch License Term - 25 Flow Licenses, Cisco ONE C9300 Advantage Add-On Term |
| Dimensions & Weight | |
| Depth | 44.5 cm |
| Height | 4.4 cm |
| Weight | 7.45 kg |
| Width | 44.5 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day | Technical support - consulting - 90 days |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -5 °C |
| Min Storage Temperature | -40 °C |
Klar til skyen
Forenkl, sikr og transformer dit cloud-miljø. Cisco leverer en digital-klar tilgang, der starter ved kanten og strækker sig til der, hvor applikationerne befinder sig.
Optimeret til mobilitet
Catalyst 9300-seriens access-switches giver dig smart, enkel og meget sikker unified access.
