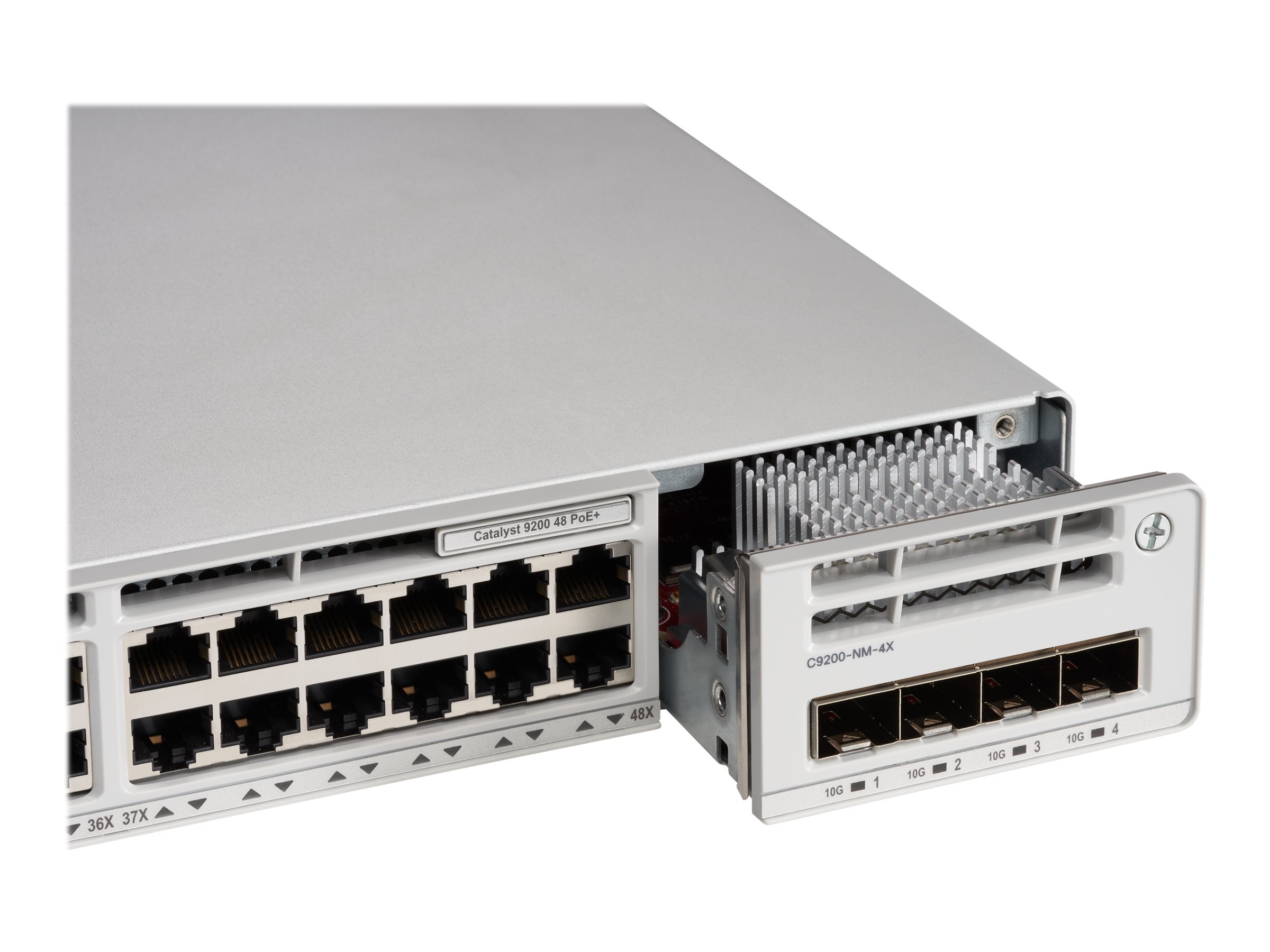

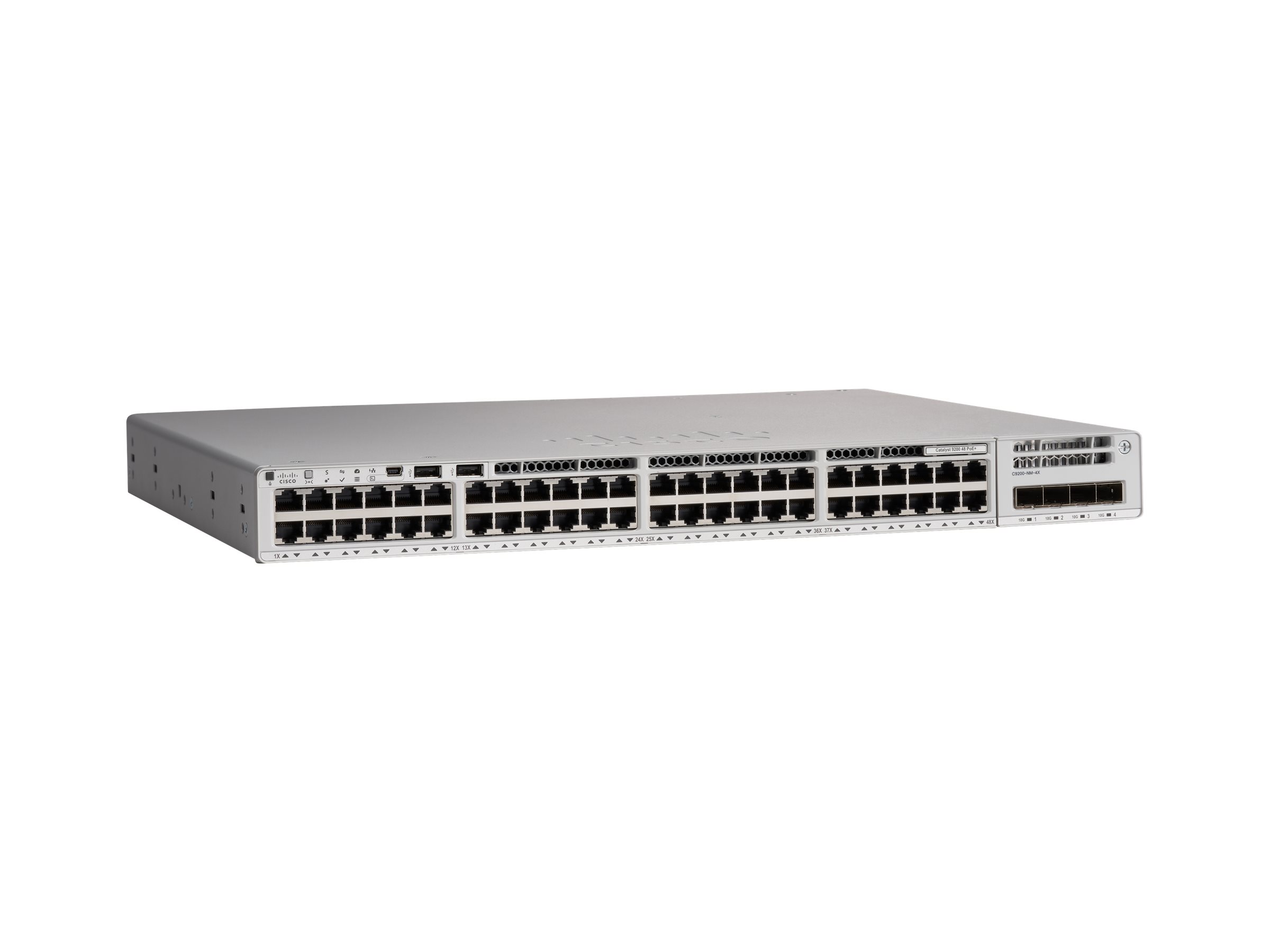

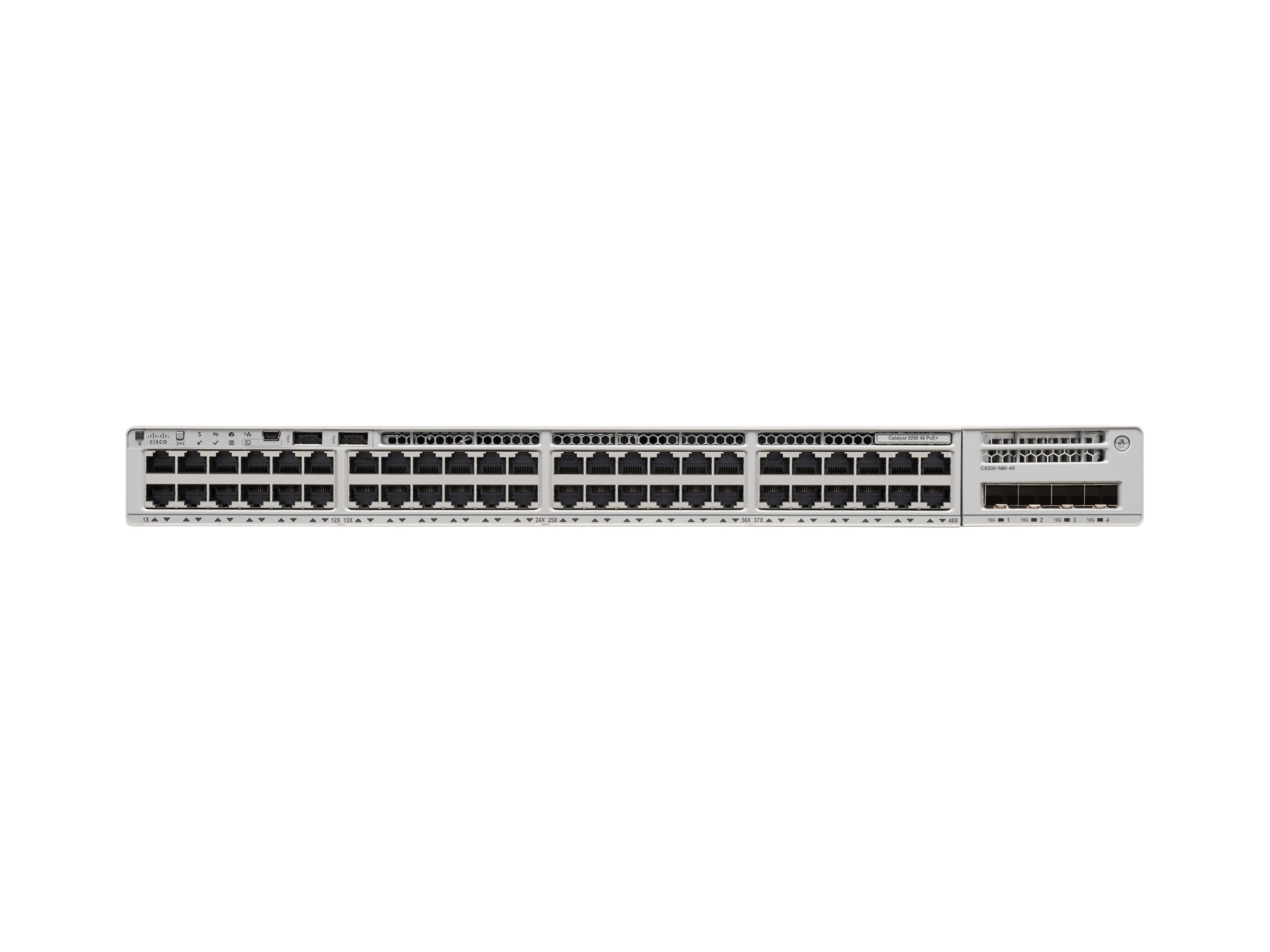

Cisco Catalyst 9200 Switch 48-porte Gigabit PoE+
Catalyst 9200-serien leverer de bedste funktioner. Den er meget sikker og altid tændt, og den giver IT-enkelhed, hvilket resulterer i en fantastisk oplevelse hver gang.
-
Product no 994250594
Model C9200-48P-E
Brand Cisco Systems
EAN 0889728168250
Weight 7.78 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Cisco Catalyst 9200 - Essential Edition - switch - 48 porte - smart - monterbar på stativ |
| Enhedstype | Switch - 48 porte - smart - kan stables |
| Pakningstype | Monterbar på stativ |
| Undertype | Gigabit Ethernet |
| Porte | 48 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 740 W |
| Præstation | Trådløs båndbredde: op til 48 Gbps<br>Omkoblingskapacitet: 176 Gbps<br>Videresendelseshastighed: 261,9 Mpps |
| Kapacitet | Virtuelle netværk: 4<br>MAC adresser: 32000<br>IPv4 router: 14000<br>Indirekte IPv4-ruter: 4000<br>Direkte IPv4 ruter: 10000<br>IPv4 indtastning i routing-tabel: 4000<br>IPv6 indtastning i routing-tabel: 2000<br>Multicast-skala: 1000<br>ACL-skalaposteringer: 16000<br>Pakkebufferstørrelse: 6 MB<br>Flexible NetFlow entries: 16000<br>VLAN ID'er: 1000 |
| Jumborammesupport | 9198 byte |
| Routingprotokol | OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, police-baseret routing (PBR), RIPng, MSTP |
| Protokol til fjernadministration | NETCONF, RESTCONF |
| Egenskaber | QoS, RSPAN, FNF, MACsec support, CoPP, Sampled NetFlow, SPAN, EEM, FHS, DNA support |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz |
| Effekt | AC 100-240 V |
| Overskudsspænding | Valgfri |
| Dimensioner (B x D x H) | 44.5 cm x 4.4 cm x 35 cm |
| Vægt | 5.5 kg |
| Systemkrav | Cisco IOS XE 16.9.2 eller senere |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Capacity | Virtual networks: 4 | MAC addresses: 32000 | IPv4 routes: 14000 | Indirect IPv4 routes: 4000 | Direct IPv4 routes: 10000 | IPv4 routing table entries: 4000 | IPv6 routing table entries: 2000 | Multicast scale: 1000 | ACL scale entries: 16000 | Packet |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz |
| Device Type | Switch - 48 ports - smart - stackable |
| Enclosure Type | Rack-mountable |
| Features | Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Flexible NetFlow (FNF), MACsec support, Control plane protection (CoPP), Sampled NetFlow, Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), First Hop Security (FHS), DNA suppor |
| Flash Memory | 4 GB |
| Jumbo Frame Support | 9198 bytes |
| Performance | Wireless bandwidth: up to 48 Gbps | Switching capacity: 176 Gbps | Forwarding rate: 261.9 Mpps |
| PoE Budget | 740 W |
| Ports | 48 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 4 GB |
| Remote Management Protocol | NETCONF, RESTCONF |
| Routing Protocol | OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ - 30 W |
| Power | |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 1000 Watt |
| Power Redundancy | Optional |
| Voltage Required | AC 100-240 V |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 C |
| MTBF | 375,570 hours |
| Software / System Requirements | |
| OS Required | Cisco IOS XE 16.9.2 or later |
| Dimensions & Weight | |
| Depth | 4.4 cm |
| Height | 35 cm |
| Weight | 5.5 kg |
| Width | 44.5 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day | Technical support - phone consulting - 90 days |
| Environmental Parameters | |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -5 °C |
| Min Storage Temperature | -40 °C |
Super sikker
Få avancerede sikkerhedsfunktioner, der beskytter integriteten af din hardware, software og alle data, der flyder gennem switchen.
Altid på
Catalyst 9200-seriens switche giver modstandsdygtighed, analyse og sikkerhed på virksomhedsniveau, så din virksomhed kan køre problemfrit.
