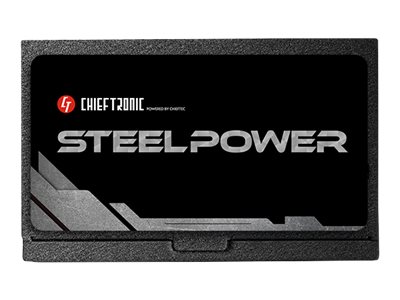

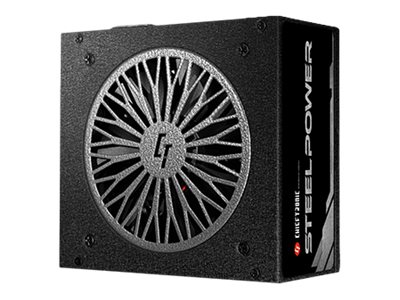

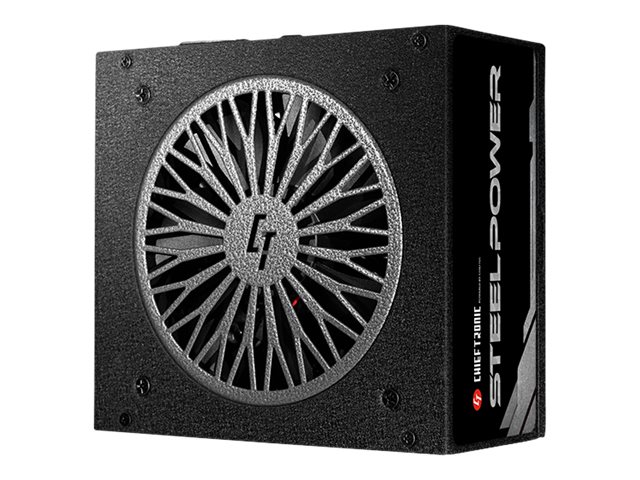

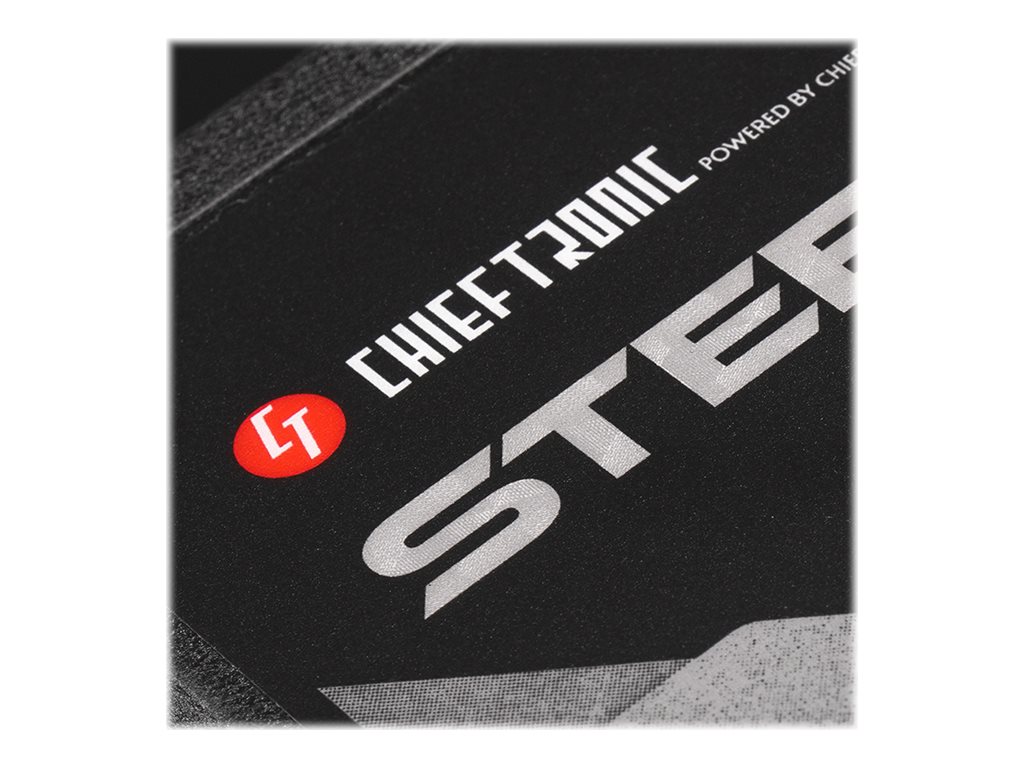

Chieftronic SteelPower Series BDK-650FC Strømforsyning 650Watt
Chieftronic SteelPower Series BDK-650FC - Strømforsyning (intern) - ATX12V 2.3/ EPS12V - 80 PLUS Bronze - AC 100-240 V - 650 Watt - aktiv PFC
649,00DKK519,20DKK excl. VAT
-
Product no 999376142
Model BDK-650FC
Brand Chieftec Industrial
EAN 0753263077424
Weight 1.65 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Chieftronic SteelPower Series BDK-650FC - strømforsyning - 650 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V 2.3/ EPS12V |
| 80 PLUS certificering | 80 PLUS Bronze |
| Vægt | 1.65 kg |
| Indgangspænding | AC 100-240 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 650 Watt |
| Output Current | +5V - 20 A<br>+3.3V - 20 A<br>+12V - 54 A<br>-12V - 0.3 A<br>+5VSB - 2.5 A |

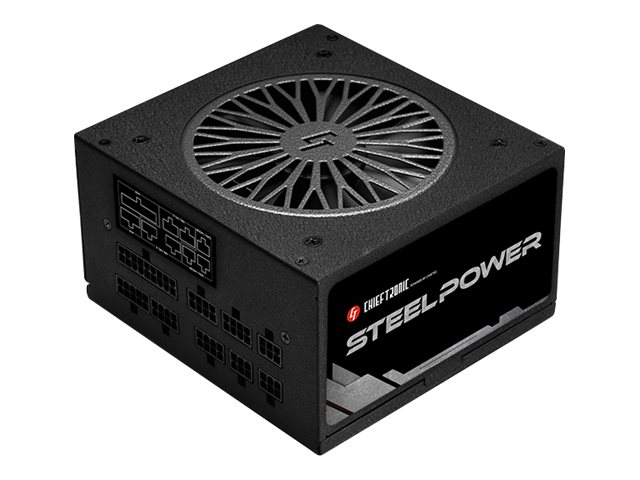

| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>3 x 4-PIN intern strøm<br>6 x 15 pin Serial ATA strøm<br>4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>1 x 4-PIN mini-strømforsyningsforbinder |
| Modulær Kabel Administration | Ja |
| Kølesystem | 120 mm ventilator |
| Dimensioner (B x D x H) | 15 cm x 14 cm x 8.6 cm |
| Producentgaranti | 5 års garanti |
| General | |
|---|---|
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V 2.3/ EPS12V |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Bronze |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 100-240 V |
| Modular Cable Management | Yes |
| Output Current | +5V - 20 A | +3.3V - 20 A | +12V - 54 A | -12V - 0.3 A | +5VSB - 2.5 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 650 Watt |
| Power Factor (PF) | 0.9 |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 3 x 4 pin internal power | 6 x 15 pin Serial ATA power | 4 x 8 pin PCI Express power with detachable 2 pin section | 1 x 4 pin mini-pow |
| Miscellaneous | |
| Compliant Standards | CB, FCC, RoHS, ErP Ready, EAC, Interseroh, TUV Rheinland |

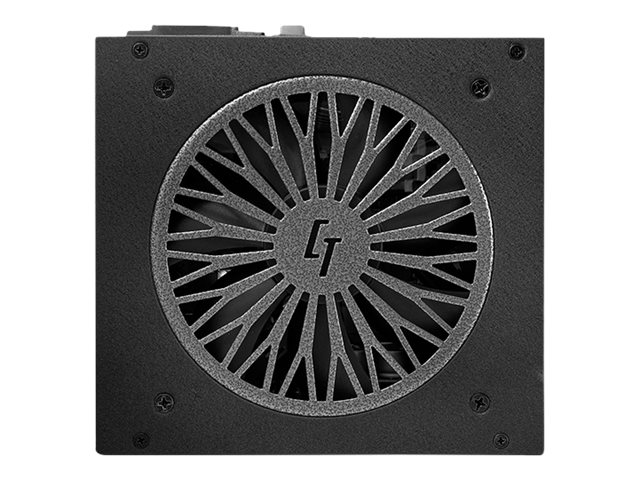

| Cooling System | 120 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, DC-DC technology, fully modular, Automatic Fanspeed Control (AFC), Surge & Inrush Protection (SIP), LLC |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Dimensions & Weight | |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 1.65 kg |
| Width | 15 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.2 kg |
