Chieftec Polaris Series 750W Strømforsyning 750Watt

Chieftec Polaris Series 750W - Strømforsyning (intern) - ATX12V 2.4/ EPS12V - 80 PLUS Gold - AC 100-240 V - 750 Watt - aktiv PFC
632,00DKK505,60DKK excl. VAT
  • Product no 995421930

    Model PPS-750FC

    Brand Chieftec Industrial

    EAN 0753263076441

    Weight 2.48 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Chieftec Polaris Series 750W - strømforsyning - 750 Watt
Specifikationsoverensstemmelse ATX12V 2.4/ EPS12V
80 PLUS certificering 80 PLUS Gold
Vægt 2.285 kg
Indgangspænding AC 100-240 V
Udgangspænding +3.3, +5, ±12 V
Strømkapacitet 750 Watt
Output Current +5V - 22 A<br>+3.3V - 22 A<br>+12V1 - 62.5 A<br>+5VSB - 3 A<br>-12V - 0.3 A
Output-stikforbindelser 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>3 x 4-PIN intern strøm<br>8 x 15 pin Serial ATA strøm<br>1 x 4-PIN mini-strømforsyningsforbinder
Modulær Kabel Administration Ja
Kølesystem 120 mm ventilator
Dimensioner (B x D x H) 15 cm x 14 cm x 8.7 cm
Producentgaranti 2 års garanti
General
Device Type Power supply - active Power Factor Correction (PFC) - internal
PSU Form Factor ATX
Specification Compliance ATX12V 2.4/ EPS12V
Power Device
80 PLUS Certification 80 PLUS Gold
Frequency Required 50 - 60 Hz
Input Voltage AC 100-240 V
Modular Cable Management Yes
Output Current +5V - 22 A | +3.3V - 22 A | +12V1 - 62.5 A | +5VSB - 3 A | -12V - 0.3 A
Output Voltage +3.3, +5, ±12 V
Power Capacity 750 Watt

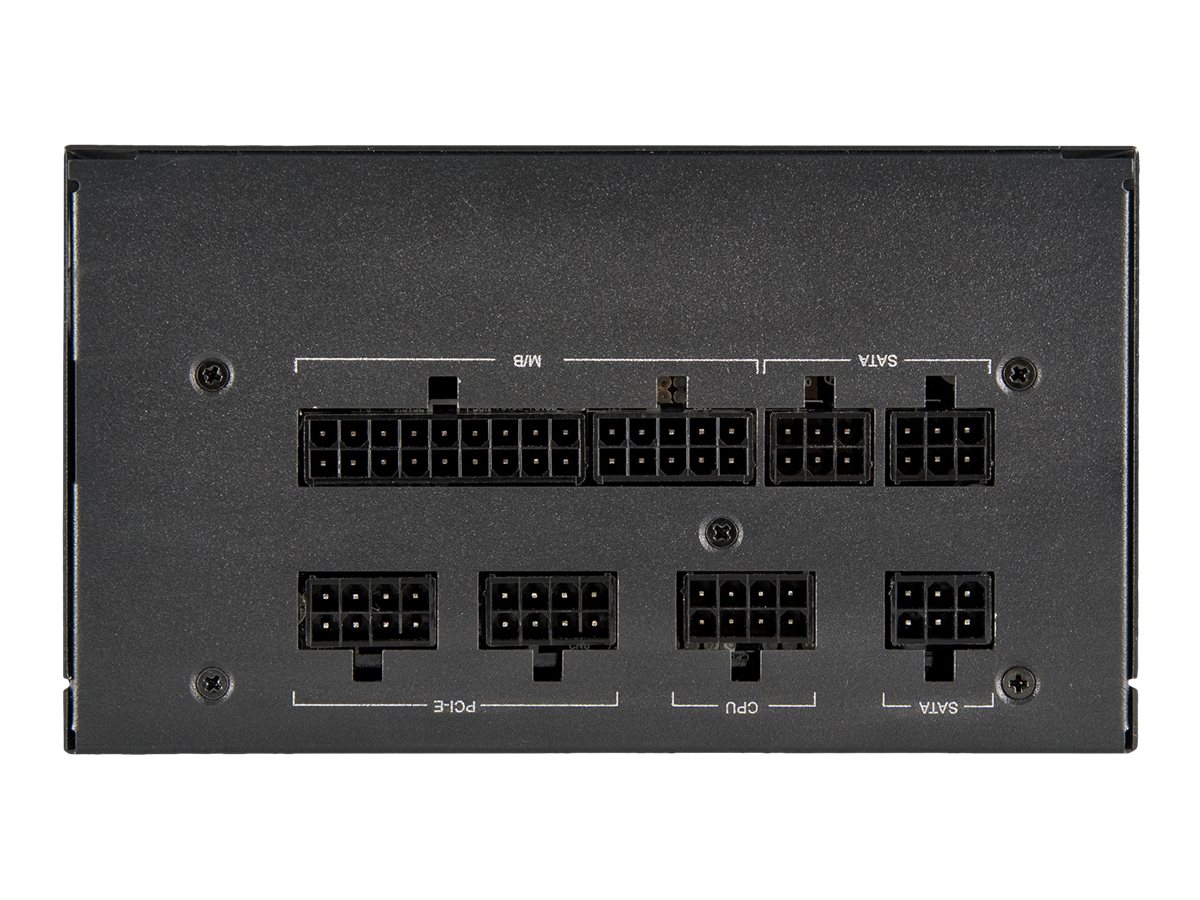

Power Output Connectors Details 1 x power 24 pin ATX with detachable 4 pin section | 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 4 x 8 pin PCI Express power with detachable 2 pin section | 3 x 4 pin internal power | 8 x 15 pin Serial ATA power | 1 x 4 pin mini-pow
Miscellaneous
Compliant Standards CB, RoHS, ErP Ready, EAC, TUV Rheinland
Cooling System 120 mm fan
Features Overheat protection, overcurrent protection, overvoltage protection, overload protection, undervoltage protection, short-circuit protection, DC-DC technology, fully modular, Automatic Fanspeed Control (AFC), Surge &amp; Inrush Protection (SIP)
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Dimensions & Weight
Depth 14 cm
Height 8.7 cm
Weight 2.285 kg
Width 15 cm
Dimensions & Weight (Shipping)
Shipping Weight 2.59 kg
