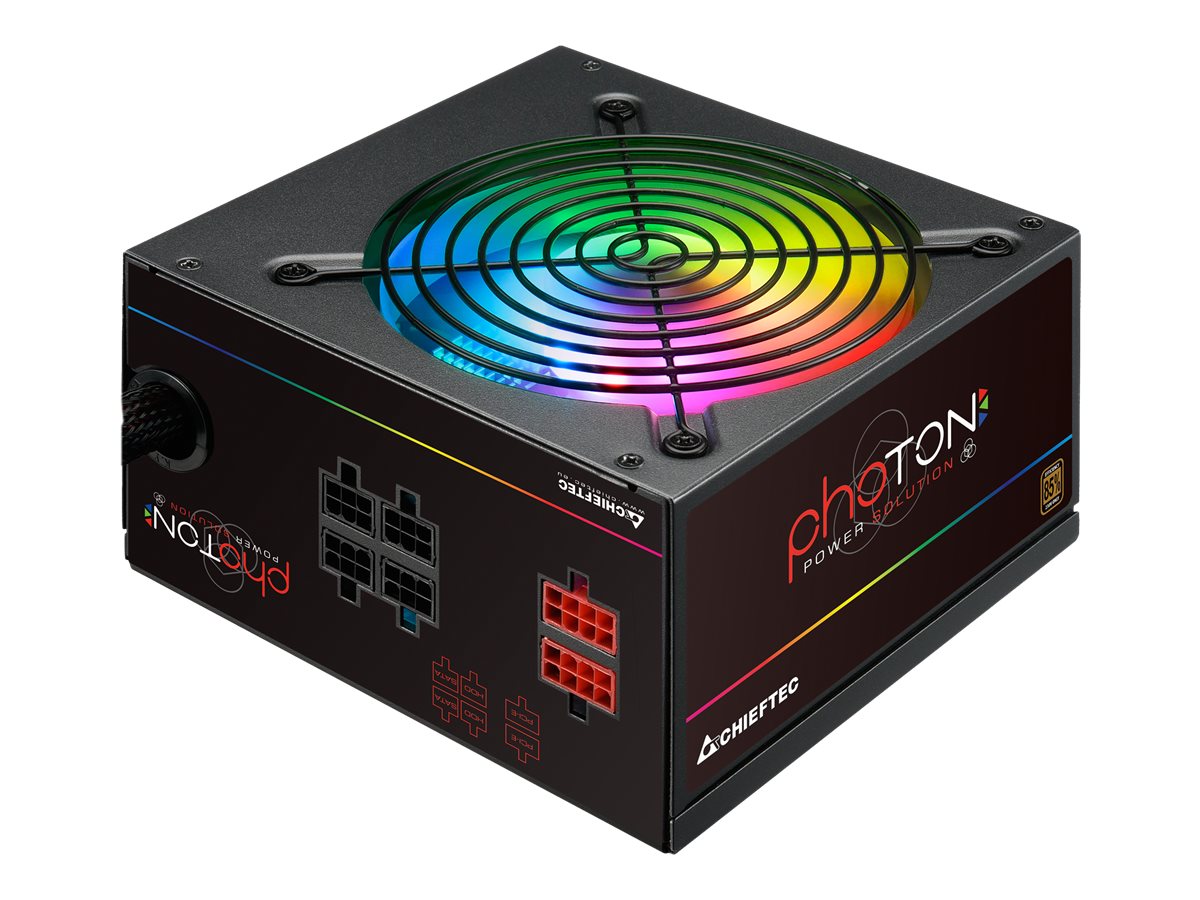

Chieftec Photon Series CTG-650C-RGB Strømforsyning 650Watt
Chieftec Photon Series CTG-650C-RGB - Strømforsyning (intern) - ATX12V 2.3/ EPS12V - AC 230 V - 650 watt - aktiv PFC
800,00 DKK
640,00 DKK excl. VAT
-
Product no 994416411
Model CTG-650C-RGB
Brand Chieftec Industrial
EAN 0753263075918
Weight 2.43 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Chieftec Photon Series CTG-650C-RGB - strømforsyning - 650 watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V 2.3/ EPS12V |
| Vægt | 2.14 kg |
| Indgangspænding | AC 230 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 650 watt |
| Output Current | +5V - 22 A<br>+3.3V - 22 A<br>+12V1 - 26 A<br>+12V2 - 26 A<br>+5VSB - 2.5 A<br>-12V - 0.3 A |
| Output-stikforbindelser | 1 x strøm 24 pin ATX<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>4 x 4-PIN intern strøm<br>6 x 15 pin Serial ATA strøm<br>2 x 4-PIN mini-strømforsyningsforbinder<br>1 x RGB LED controller |
| Modulær Kabel Administration | Ja |
| Kølesystem | 120 mm ventilator |
| Dimensioner (B x D x H) | 15 cm x 14 cm x 8.7 cm |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V 2.3/ EPS12V |
| Power Device | |
| Efficiency | 85% |
| Frequency Required | 50 Hz |
| Input Voltage | AC 230 V |
| Modular Cable Management | Yes |
| Output Current | +5V - 22 A | +3.3V - 22 A | +12V1 - 26 A | +12V2 - 26 A | +5VSB - 2.5 A | -12V - 0.3 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 650 Watt |
| Power Factor (PF) | 0.9 |
| Power Output Connectors Details | 1 x power 24 pin ATX | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 4 x 8 pin PCI Express power with detachable 2 pin section | 4 x 4 pin internal power | 6 x 15 pin Serial ATA power | 2 x 4 pin mini-power connector | 1 x RGB LED con |
| Miscellaneous | |
| Compliant Standards | CB, RoHS, ErP Ready, EAC, TUV Rheinland |
| Cooling System | 120 mm fan |
| Features | Overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, surge & inrush protection, fan speed control, semi-modular, 16.8 million colors RGB fan |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Depth | 14 cm |
| Height | 8.7 cm |
| Weight | 2.14 kg |
| Width | 15 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.54 kg |
