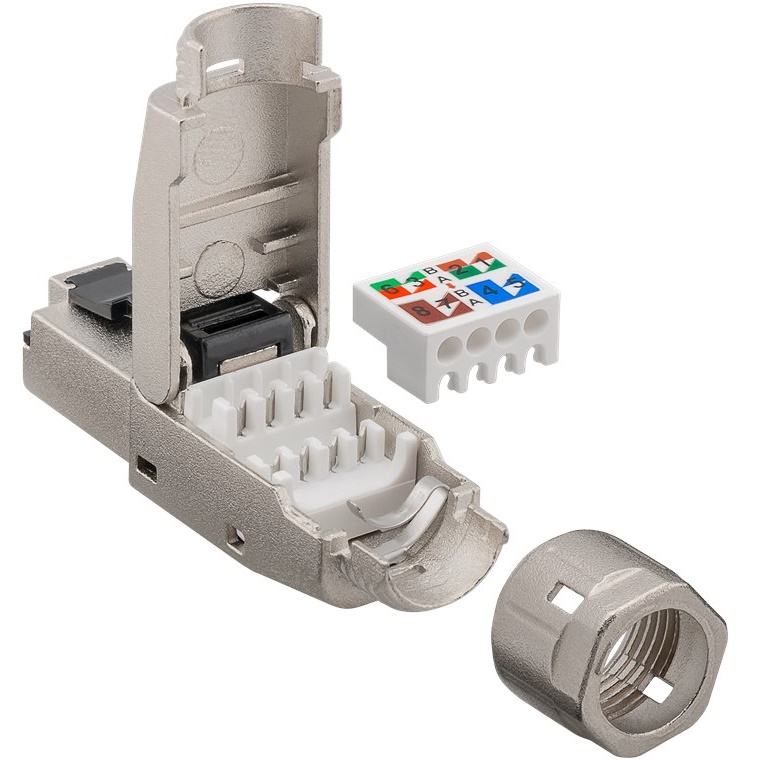

Goobay RJ45 CAT 8.1 STP Connector IDC toolless
Goobay 61130. Stik: RJ-45, Produktfarve: Metallic, Stik køn: Hanstik. Bredde: 11,6 mm, Dybde: 48,2 mm, Højde: 12,8 mm. Pakketype: Bulk
49,00 DKK
39,20 DKK excl. VAT
-
Product no 1001026391
Model 61130
Brand
EAN 4040849611308
Weight 0.02 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Connection | RJ45 male (8P8C) -> IDC connection (toolless) |
| Specification | CAT 8.1 |
| Shielding class | STP |
| Max. transmission rate | 40 Gbit/s |
| Max. bandwidth | 2000 MHz |
| Dimensions (L x W x H) | 48.2 x 12.8 x 13.8 mm |
| Cable diameter supported | 5.0mm - 8.5mm |
| Diameter of insulated conductor | 1.1 - 1.6 mm |
| PoE | PoE per IEEE 802.3af, PoE+ per IEEE 802.3at |
| Funktioner | |
|---|---|
| Forbindelsesformfaktor | Lige |
| Kabelafskærmning | S/UTP (STP) |
| Kontaktmodstand | 20 mΩ |
| Levetid (cyklusser) | 750 |
| Materiale | Zink |
| Produktfarve | Metallic |
| Standard for kabler | Cat8.1 |
| Stik | RJ-45 |
| Stik køn | Hanstik |
| Stikforbindelse kontakter plettering | Guld |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | -10 - 60 °C |
| Opbevaringstemperatur (T-T) | -40 - 70 °C |
| Vægt & størrelser | |
| Bredde | 11,6 mm |
| Dybde | 48,2 mm |
| Højde | 12,8 mm |
| Emballeringsdata | |
| Pakketype | Bulk |
