Product no 993723879
Model PL-E430H00A-EU
Brand Cambium Networks
EAN 5704174209249
Weight 0.39 kg

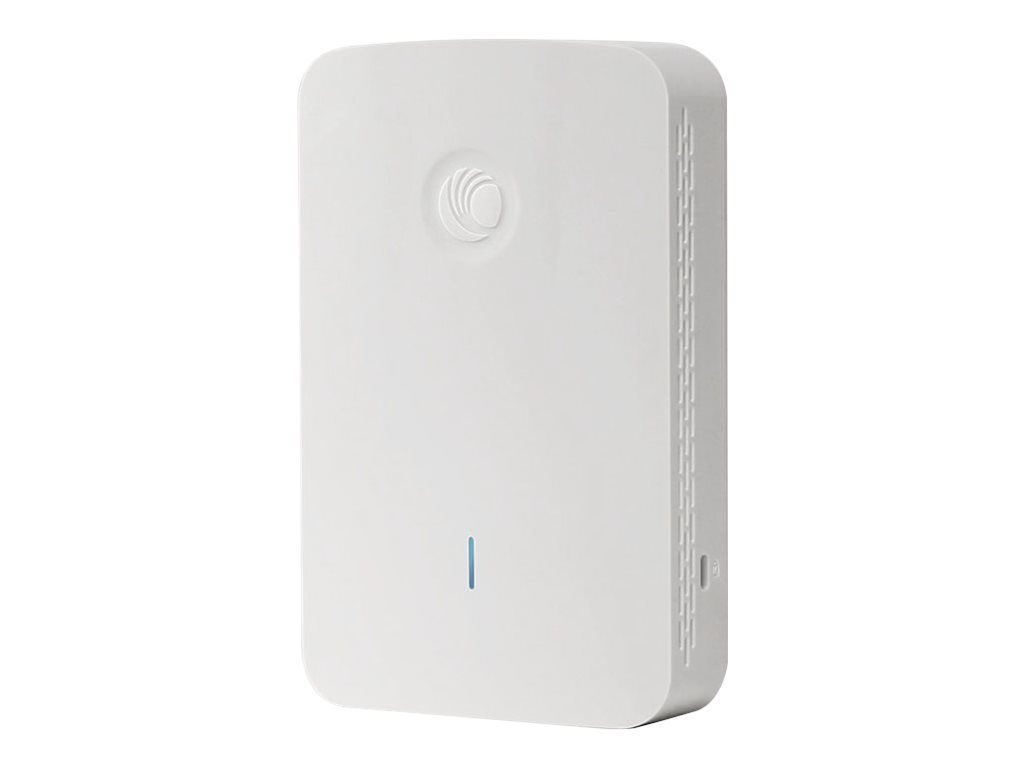

Produktbeskrivelse | Cambium Networks cnPilot E430H - trådløs forbindelse - Bluetooth, Wi-Fi 5 - cloud-administreret |
Enhedstype | Trådløs forbindelse |
Formfaktor | Ekstern - indendørs |
Lokalisering | Europa |
Dataforbindelsesprotokol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
Frekvensbånd | 2.4 GHz, 5 GHz |
Præstation | Maksimum datahastighed (2,4 GHz): 400 Mbps<br>Maksimum datahastighed (5 GHz): 867 Mbps |
Kapacitet | SSIDs total: 16<br>Maksimum antal klienter: 256 |
Udstyr inkluderet | Monteringsbøjle |
Power Over Ethernet (PoE) understøttet | PoE+ |
Dimensioner (B x D x H) | 9.4 cm x 3.4 cm x 14.7 cm |
Vægt | 390 g |
Producentgaranti | 5 års garanti |
General | |
---|---|
Depth | 3.4 cm |
Device Type | Wireless access point |
Height | 14.7 cm |
Localization | Europe |
Ruggedized Design | Indoor |
Weight | 390 g |
Width | 9.4 cm |
Networking | |
Authentication Method | RADIUS, LDAP, MS-CHAP v.2 |
Capacity | SSIDs total: 16 | Maximum number of clients: 256 |
Cloud-Managed | Yes |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, Bluetooth 4.0, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11a |
Connectivity Technology | Wireless |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
Encryption Algorithm | AES, PEAP, TKIP, WPA, WPA-PSK, WPA2-PSK, WPA2-Enterprise, EAP-SIM, EAP-AKA, EAP-FAST |
Features | NAT support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, MAC address filtering, Wireless Distribution System (WDS) support, wall mountable, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) suppo |
Form Factor | External |
Frequency Band | 2.4 GHz, 5 GHz |
Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM |
Network / Transport Protocol | L2TP, PPPoE, DHCP, DNS |
Performance | Maximum data rate (2.4 GHz): 400 Mbps | Maximum data rate (5 GHz): 867 Mbps |
Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
Routing Protocol | IGMPv2, IGMP, IGMPv3 |
Spread Spectrum Method | OFDM, DSSS |
Antenna | |
Antenna | Internal |
Directivity | Omni-directional |
Expansion / Connectivity | |
Interfaces | 3 x 1000Base-T - RJ-45 | 1 x 1000Base-T (PoE output) - RJ-45 | 2 x pass-through - RJ-45 |
Miscellaneous | |
Compliant Standards | UL, IC, FCC, RoHS, WEEE |
Included Accessories | Mounting bracket |
MTBF | 2,828,686 hours |
Power | |
Power Consumption Operational | 25 Watt |
Power Over Ethernet (PoE) Supported | PoE+ |
Manufacturer Warranty | |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | |
Humidity Range Operating | 5 - 95% (non-condensing) |
Max Operating Temperature | 45 °C |
Min Operating Temperature | 5 °C |
