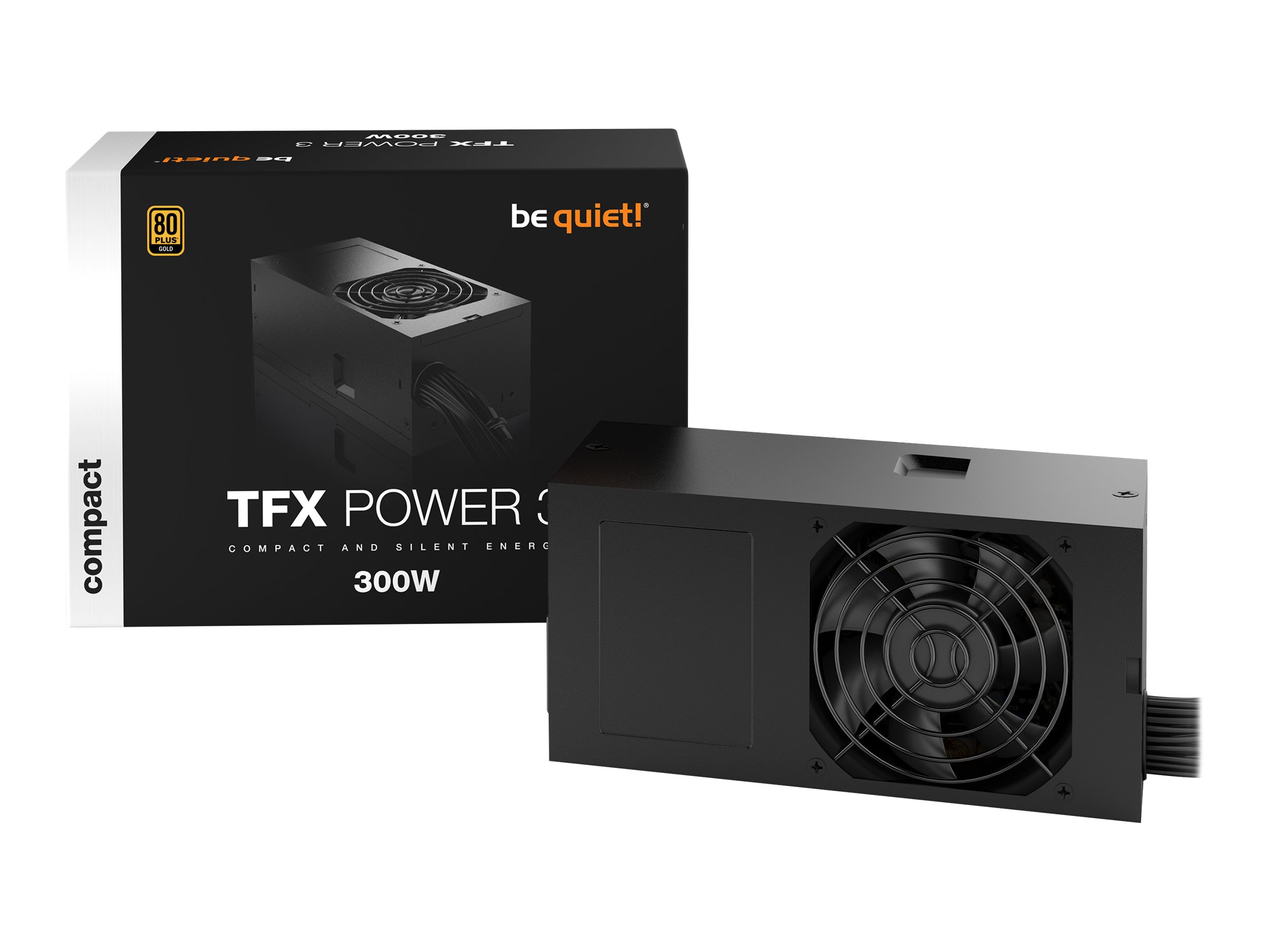

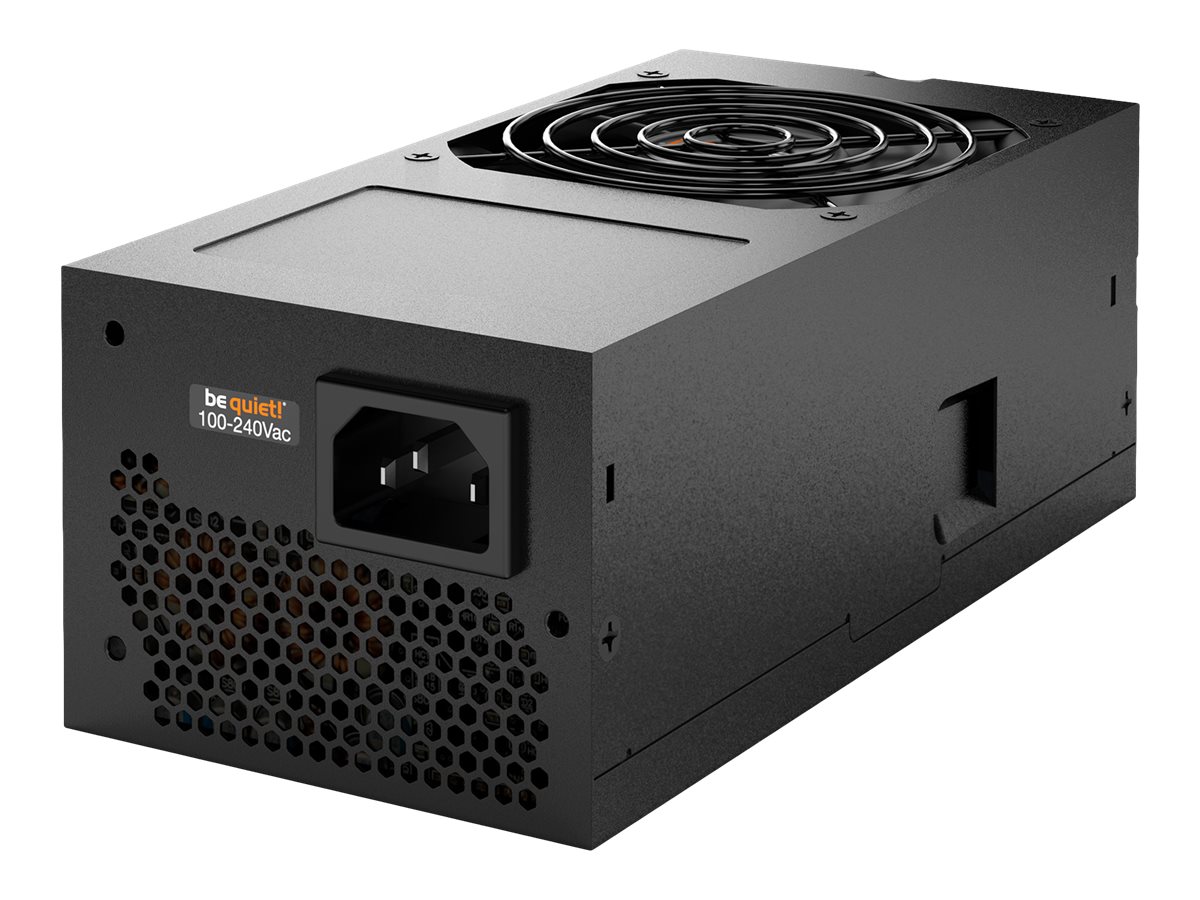

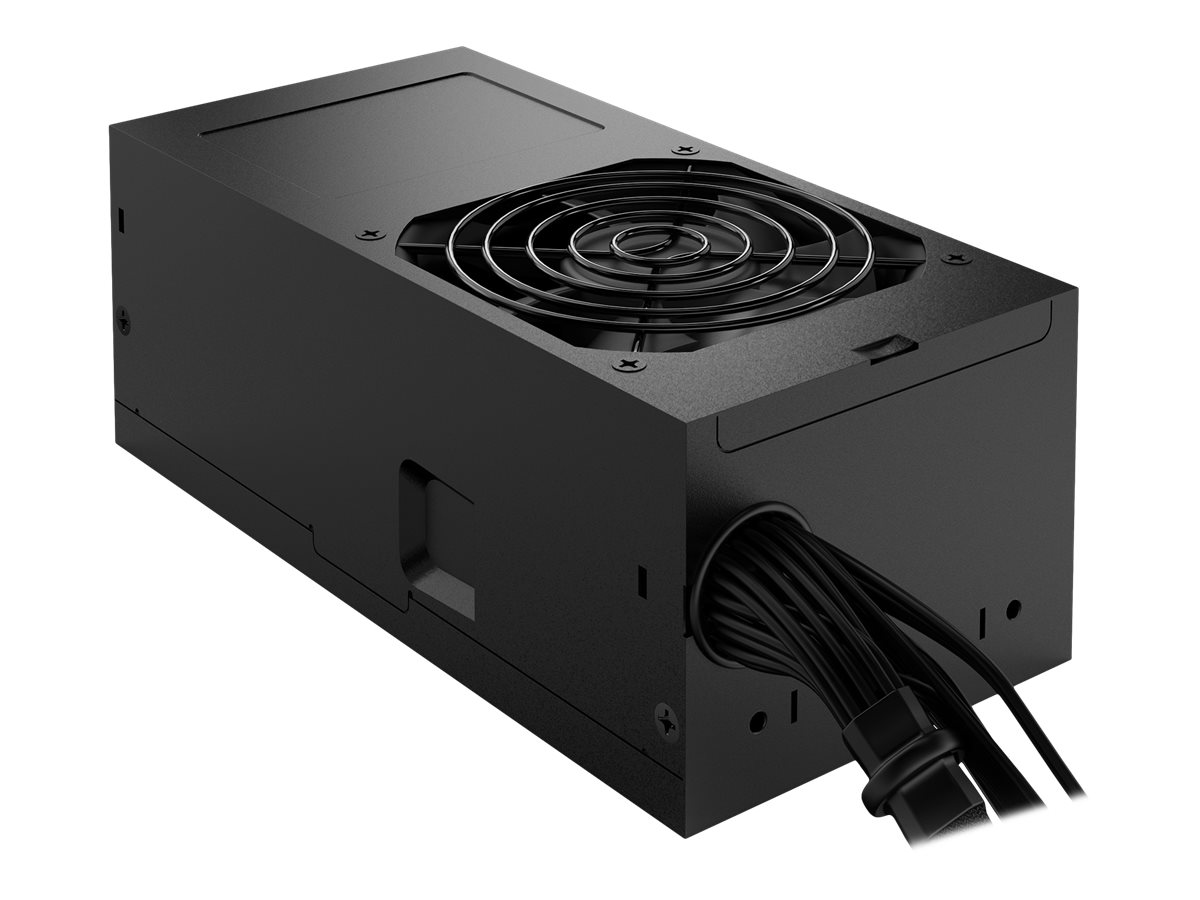

be quiet! TFX Power 3 300Watt
be quiet! TFX Power 3 - Strømforsyning (intern) - TFX12V 2.52/ EPS12V 2.92 - 80 PLUS Gold - AC 100-240 V - 300 Watt - aktiv PFC - Europa
516,00DKK412,80DKK excl. VAT
-
Product no 998700793
Model BN323
Brand Listan
EAN 4260052188293
Weight 1.48 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | be quiet! TFX Power 3 - strømforsyning - 300 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | TFX12V 2.52/ EPS12V 2.92 |
| 80 PLUS certificering | 80 PLUS Gold |
| Lokalisering | Europa |
| Indgangspænding | AC 100-240 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 300 Watt |
| Output Current | +3.3V - 18 A<br>+5V - 18 A<br>+12V1 - 13 A<br>+12V2 - 13 A<br>-12V - 0.3 A<br>+5VSB - 3 A |
| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>2 x 4-PIN intern strøm<br>3 x 15 pin Serial ATA strøm<br>1 x 4-PIN mini-strømforsyningsforbinder<br>1 x effekt ATX12V 4-pin stik |
| Kølesystem | 80 mm ventilator |
| Dimensioner (B x D x H) | 8.5 cm x 17.5 cm x 6.5 cm |
| Miljømæssige standarder | ENERGY STAR |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Localization | Europe |
| PSU Form Factor | TFX |
| Specification Compliance | TFX12V 2.52/ EPS12V 2.92 |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Gold |
| Efficiency | 91.7% |
| Frequency Required | 50 - 60 Hz |
| Input Voltage | AC 100-240 V |
| Output Current | +3.3V - 18 A | +5V - 18 A | +12V1 - 13 A | +12V2 - 13 A | -12V - 0.3 A | +5VSB - 3 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 300 Watt |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 1 x 8 pin PCI Express power with detachable 2 pin section | 2 x 4 pin internal power | 3 x 15 pin Serial ATA power | 1 x 4 pin mini-power connector | 1 x power 4 pin ATX12V connector |
| Miscellaneous | |
| Compliant Standards | ErP Ready, EAC, TUV Rheinland |
| Cooling System | 80 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, dual 12V rails, short-circuit protection |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Sound Emission | 21.7 dBA |
| Dimensions & Weight | |
| Depth | 17.5 cm |
| Height | 6.5 cm |
| Width | 8.5 cm |
