Product no 1000853680
Model 02340-001
Brand Axis Communications
EAN 7331021076105
Weight 1.2 kg

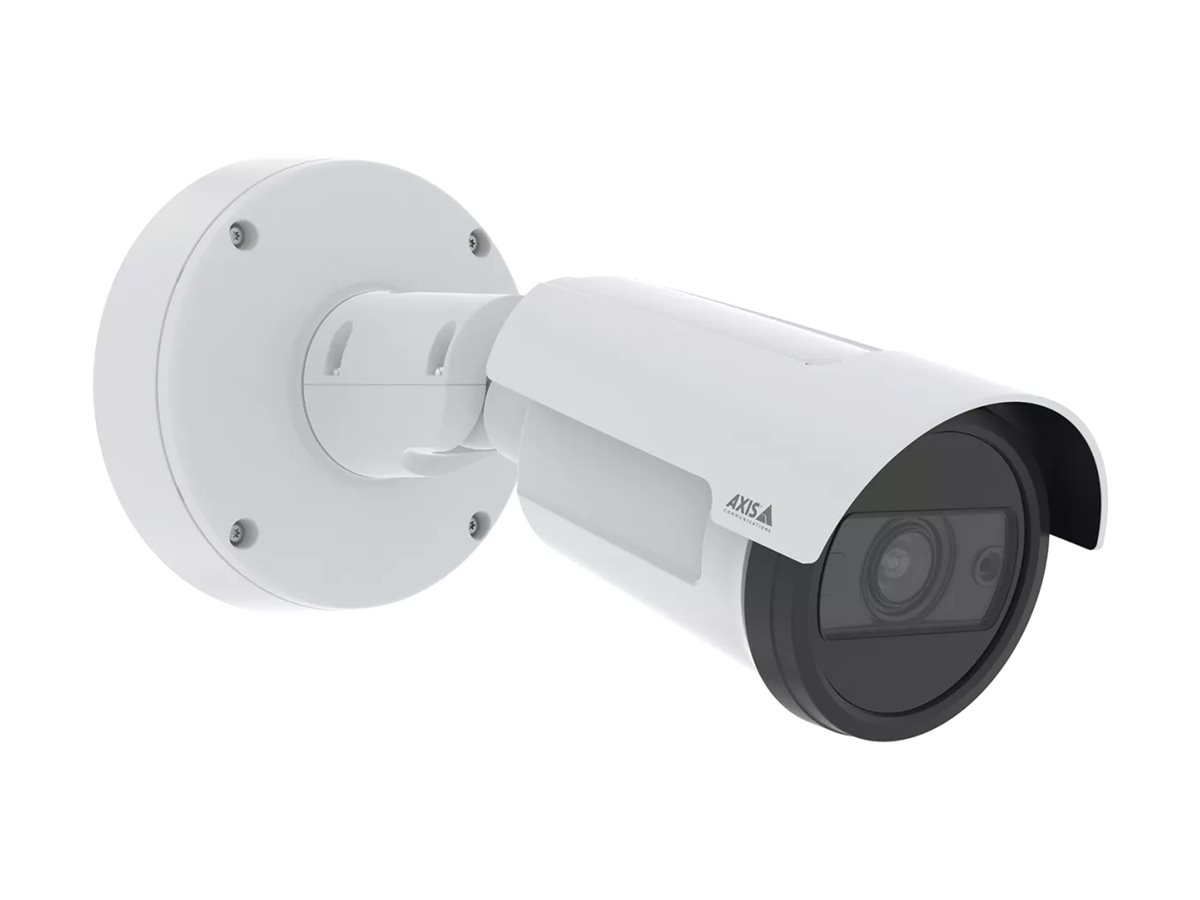

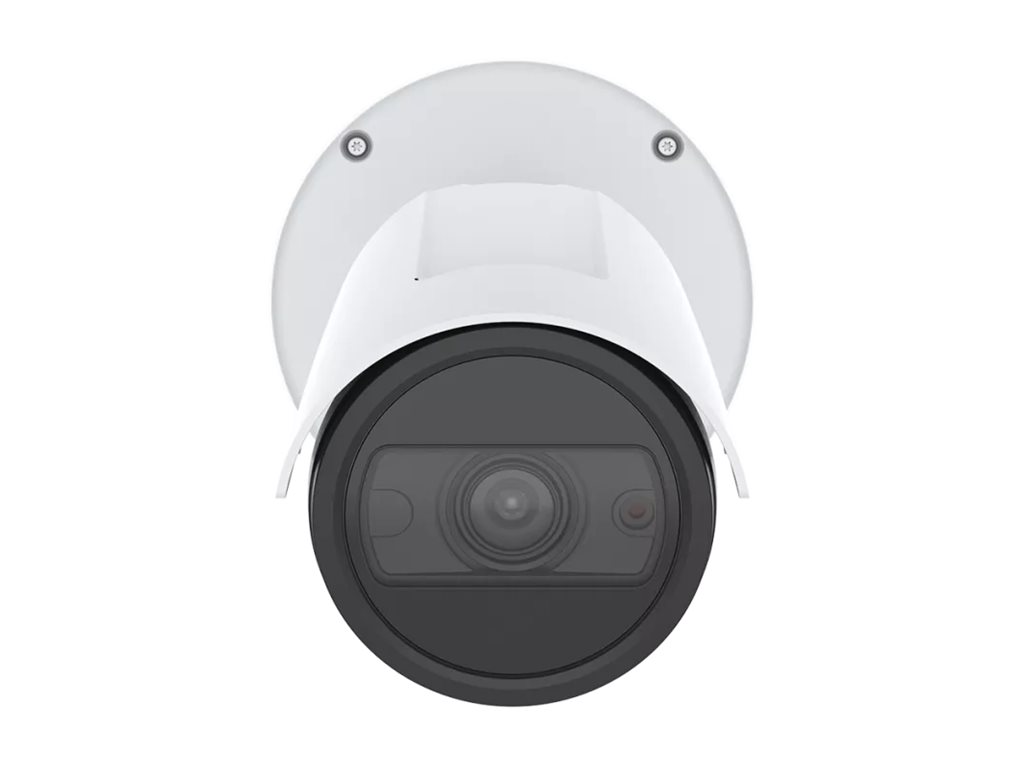

Produktbeskrivelse | AXIS P1465-LE - netværksovervågningskamera - kugle - TAA-kompatibel |
Enhedstype | Netværksovervågningskamera - fast - kugle - udendørs - vejrresistent/stødresistent |
Audio | Ja: tovejs audio via kant til kant-teknologi |
Dimensioner (B x D x H) | 13.2 cm x 28 cm x 13.2 cm |
Vægt | 1.2 kg |
Farve | Hvid, NCS S 1002-B |
Connectivity teknologi | Med ledning |
Kamera | Farve - Dag/nat |
Optisk zoom | 2.7 x |
Maksimum opløsning | 1920 x 1080 |
Billedhastighed (maks.) | 60 frames pr. sekund |
Bevægelsesdetektion | Ja |
Billedsensortype | PS RGB CMOS - 1/2.8" - 2 MP |
Minimumbelysning | 0.06 lux - farve - F1.7 - 50 IRE<br>0.01 lux - S/H - F1.7 - 50 IRE<br>0 lux - IR |
Brændviddekontrol | Forskellige brændvidder |
Brændvidde | 10.9 mm - 29 mm |
Fokusindstilling | (mindsteafstand 2.5 m) |
Objektiv Iris | F/1.7-1.7 - automatisk irisblænder (P-Iris) |
Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
Spænding | DC 10 - 28 V / PoE Class 3 |
Egenskaber | Skarphedskontrol, hvidbalance, mætningskontrol, lysstyrkekontrol, kontrastkontrol, spejlbillede, 2D Noise Reduction Technology, 3D Noise Reduction teknologi, fuld duplex audio, aktiv pillealarm, digital PTZ-funktion, kodeordsbeskyttelse, støddetektion, IR-korrigeret objektiv, Variable Bitrate (VBR), OptimizedIR, auto-kontroltilegnelse, Zipstream-teknologi, fjernfokus, ONVIF (Profil S) support, ONVIF (Profile G) support, billedskabelon, Pixel Counter Support, infrarødt skåret filter, digest-autentificering, Forensic WDR, IP-adressefiltrering, elektronisk billedstabilisering, eksponeringszone, halv duplex audio, simplex audio, digital zoom, underskrevet firmware, sikker støvle, Corridor-tilstand, ONVIF (Profile T) support, Adaptive Bitrate (ABR), VAPIX support, Lightfinder 2.0 teknologi, dag/nat-tærskel, afrimning, kompression, polygon-fortrolighedsmaske, 180° billedrotation, 90° billedrotation, 270° billedrotation, lav latens-tilstand, hukommelseskortkryptering, råstyrkeforsinkelsesbeskyttelse, ONVIF (Profile M) support, fjernzoom, Axis Edge Vault, 16:9 formatforhold, Multi-Bitrate (MBR), Axis-enheds-ID, videostreaming-indikator, op til 8 visningsområder, dynamisk tekst, signeret video, dyb læring-behandlingsenhed (DLPU), eksponeringstilstand, tromleforvrængningskorrektion, netværkshøjttalerparring, 16:10 formatforhold, 4:3 formatforhold, hybrid IR filter |
TAA kompatibel | Ja |
Producentgaranti | 5 års garanti |
Miljømæssige parametre (operativ) | -40 °C - 60 °C; 10 - 100% RH (condensing) relativ luftfugtighed |
General | |
---|---|
Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
Audio Support | Yes: two-way audio via edge-to-edge technology |
Connectivity Technology | Wired |
Depth | 28 cm |
Device Type | Network surveillance camera |
Form Factor | Bullet |
Height | 13.2 cm |
Localization | Argentina, Australia, China, Japan, Korea, Brazil, United Kingdom, United States, European Union |
Weight | 1.2 kg |
Width | 13.2 cm |
Camera | |
Digital Video Format | MJPEG, H.265, H.264B, H.264H, H.264M |
Exposure Range | 2 sec - 1/37000 (with WDR), 1/71500 sec |
Features | Sharpness control, white balance, saturation control, brightness control, contrast control, image mirror, 2D Noise Reduction Technology, 3D Noise Reduction Technology, full duplex audio, active tampering alarm, digital PTZ function, password protecti |
Flash Memory | 8 GB |
Infrared Distance | 80 m |
Infrared LEDs | Yes |
Max Digital Video Resolution | 1920 x 1080 |
Minimum Illumination | 0.06 lux - color - F1.7 - 50 IRE | 0.01 lux - B&W - F1.7 - 50 IRE | 0 lux - IR |
Motion Detection | Yes |
RAM | 1 GB |
Type | Color - Day&Night - fixed - outdoor - weather resistant / impact resistant |
Video Capture | 1920 x 1080, WDR off @ 50/60 fps | 1920 x 1080 @ 25/30 fps |
Image Sensor | |
Type | 2 MP PS RGB CMOS 1/2.8" |
Lens Construction | |
Focal Length | 10.9 mm - 29 mm |
Horizontal Field of View (degree) | 11 - 29 |
Lens Iris | F/1.7-1.7 auto iris (P-Iris) |
Min Focus Distance | 2.5 m |
Optical Zoom | 2.7 x |
Type | Vari-focal |
Vertical Field of View (degree) | 6 - 16 |
Interfaces | |
Alarm Inputs Qty | 1 |
Alarm Outputs Qty | 1 |
Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT, CDP, Syslog, NTS, R |
Expansion / Connectivity | |
Ports | LAN/power - RJ-45 | Audio line-in/microphone - 3.5 mm jack |
Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Miscellaneous | |
Color | White, NCS S 1002-B |
Compliant Standards | CSA, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, EAL 4+, X.509, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, KC, EN 50121-4, IEC 62236-4, VCCI Class A, EAC, RoHS 2011/ |
Included Accessories | Cable gaskets, connector guard, torx L-keys, terminal block connector, AXIS weather shield L, owner authentication key |
TAA Compliant | Yes |
Power | |
Power Requirements | DC 10 - 28 V / PoE Class 3 |
Software / System Requirements | |
Software Included | AXIS Video Motion Detection, AXIS Object Analytics, AXIS Live Privacy Shield |
Manufacturer Warranty | |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | |
Max Operating Temperature | 60 °C |
Min Operating Temperature | -40 °C |
Relative Humidity (operating) | 10 - 100% RH (condensing) |
