Product no 988796252
Model 20002639
Brand AVM Computersysteme
EAN 4023125026393
Weight 0.83 kg

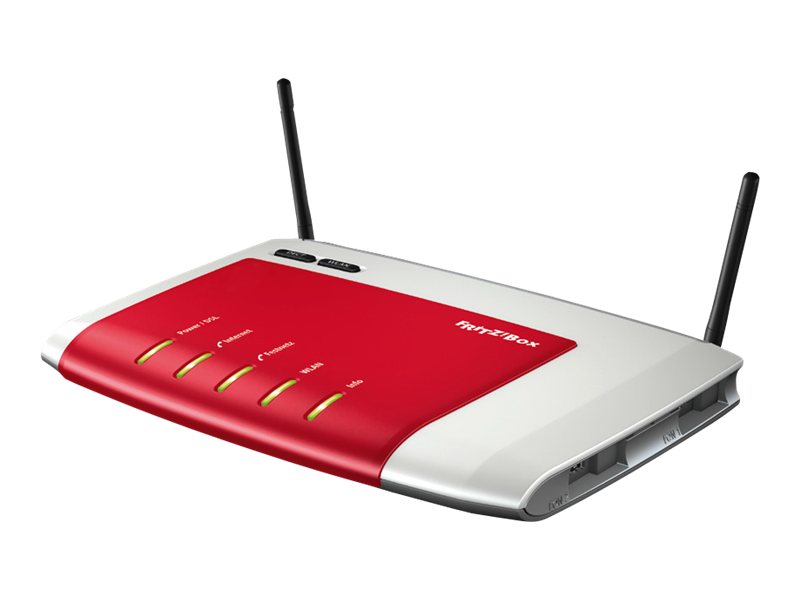

Produktbeskrivelse | AVM FRITZ!Box 7272 - trådløs router - DSL-modem - Wi-Fi - desktop |
Enhedstype | Trådløs router - DSL-modem - 4-port switch (integreret) |
Pakningstype | Desktop |
Protokol for digital signaltransmission | ADSL, ADSL2+ |
Antal WAN porte | 1 |
Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Frekvensbånd | 2,4 GHz |
Dataoverførselshastighed | 450 Mbps |
Netværks/overføselsprotokol | IPSec, FTP, DHCP, SMB, DDNS |
Protokol til fjernadministration | HTTP |
VoIP-funktionalitet | VoIP telefon adapter (DECT) |
VoIP-protokoller | SIP |
Grænseflader til telefoni | 2 telefoner (FXS), DECT, 1 telefon (ISDN BRI) |
Egenskaber | Firewallbeskyttelse, NAT-understøtning, VPN support, WOL, printserver, IPv6 understøttet, til vægmontering, indbygget DECT telefon base station, WPS, DHCP server, UPnP Media Server, 3G USB Dongle Support, SPIF |
Overensstemmelsesstandarder | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, UPnP |
Dimensioner (B x D x H) | 21 cm x 15.5 cm x 2.5 cm |
Systemkrav | Apple MacOS X 10.3.3 eller nyere, SuSE Linux 9.0 eller nyere, Microsoft Windows 98/2000/ME/XP/Vista/7, Windows 8.1 |
Producentgaranti | 5 års garanti |
General | |
---|---|
Built-in Devices | LED panel, print server, wireless access point, NAS server |
Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, UPnP |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Data Transfer Rate | 450 Mbps |
Device Type | Wireless router - 4-port switch (integrated) |
Enclosure Type | Desktop |
Encryption Algorithm | WPA2 |
Features | Firewall protection, NAT support, VPN support, wake on LAN (WOL), print server, IPv6 support, wall mountable, built-in DECT phone base station, Wi-Fi Protected Setup (WPS), DHCP server, UPnP Media Server, 3G USB Dongle Support, Stateful Packet Inspec |
Frequency Band | 2.4 GHz |
Network / Transport Protocol | IPSec, FTP, DHCP, SMB, DDNS |
Remote Management Protocol | HTTP |
Communications | |
Digital Signaling Protocol | ADSL, ADSL2+ |
Max Transfer Rate | 24 Mbps |
Protocols & Specifications | ITU G.992.1 (G.DMT), ITU G.992.3 (G.DMT.bis), ITU G.992.5 Annex A, ITU G.992.5 Annex B |
Type | DSL modem |
IP Telephony | |
Telephony Interfaces | 2 phone (FXS), DECT, 1 phone (ISDN BRI) |
VoIP Functionality | VoIP phone adapter (DECT) |
VoIP Protocols | SIP |
Expansion / Connectivity | |
Interfaces | LAN: 2 x 10Base-T/100Base-TX - RJ-45 | USB 2.0: 1 x 4 pin USB Type A | WAN: 1 x ADSL2+ | Phone line: 2 x RJ-11 | Phone line: 1 x ISDN - RJ-45 | LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
Antenna | |
Antenna Qty | 2 |
Power | |
Power Consumption Operational | 6 Watt |
Power Device | External power adapter |
Miscellaneous | |
Cables Included | 1 x phone cable - 4.25 m | 1 x network cable - 1.5 m |
Software / System Requirements | |
OS Provided | FRITZ!OS |
OS Required | Apple MacOS X 10.3.3 or later, SuSE Linux 9.0 or later, Microsoft Windows 98/2000/ME/XP/Vista/7, Windows 8.1 |
Software Included | Drivers & Utilities |
Dimensions & Weight | |
Depth | 15.5 cm |
Height | 2.5 cm |
Width | 21 cm |
Manufacturer Warranty | |
Service & Support | Limited warranty - 5 years |
