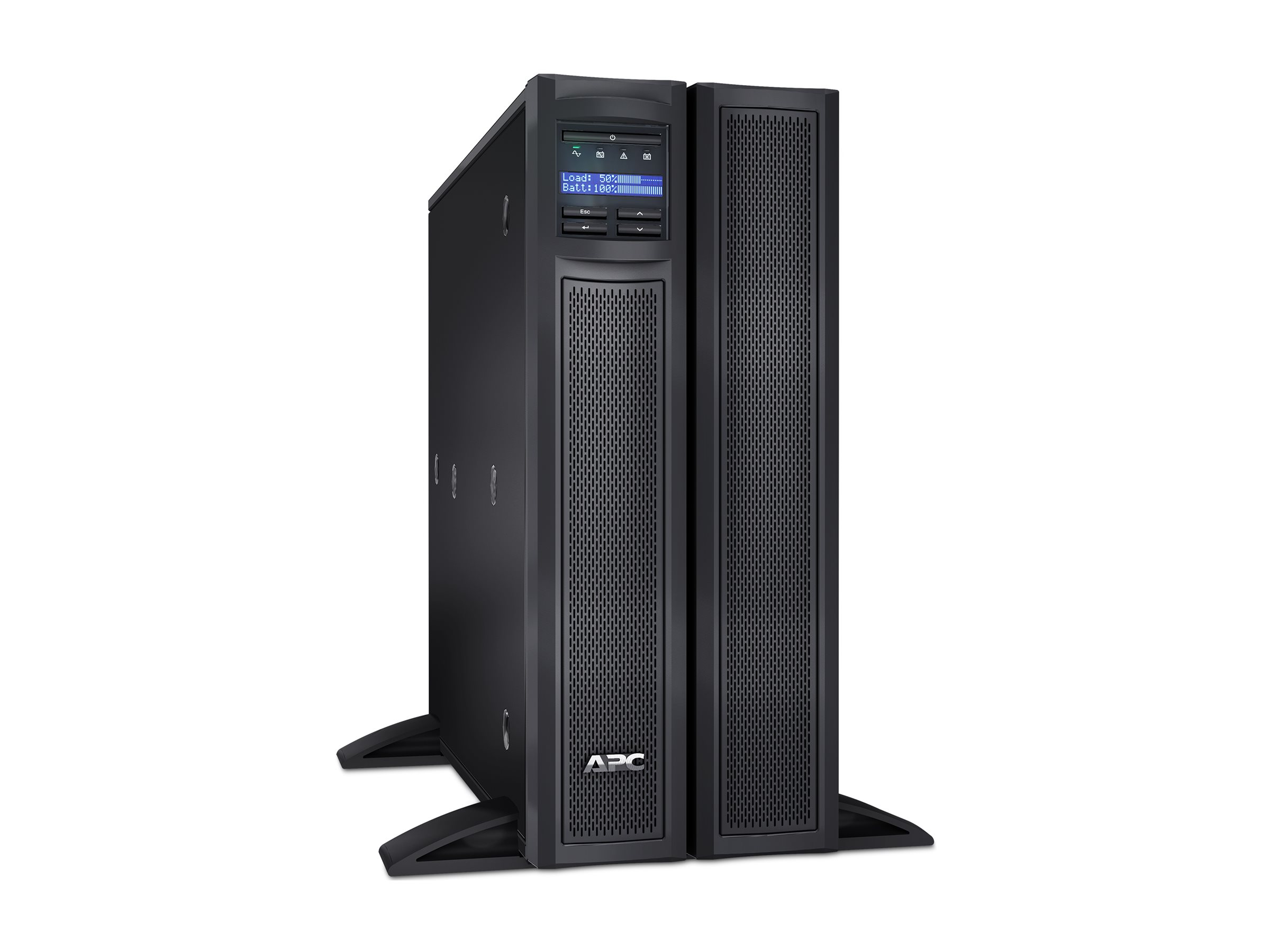

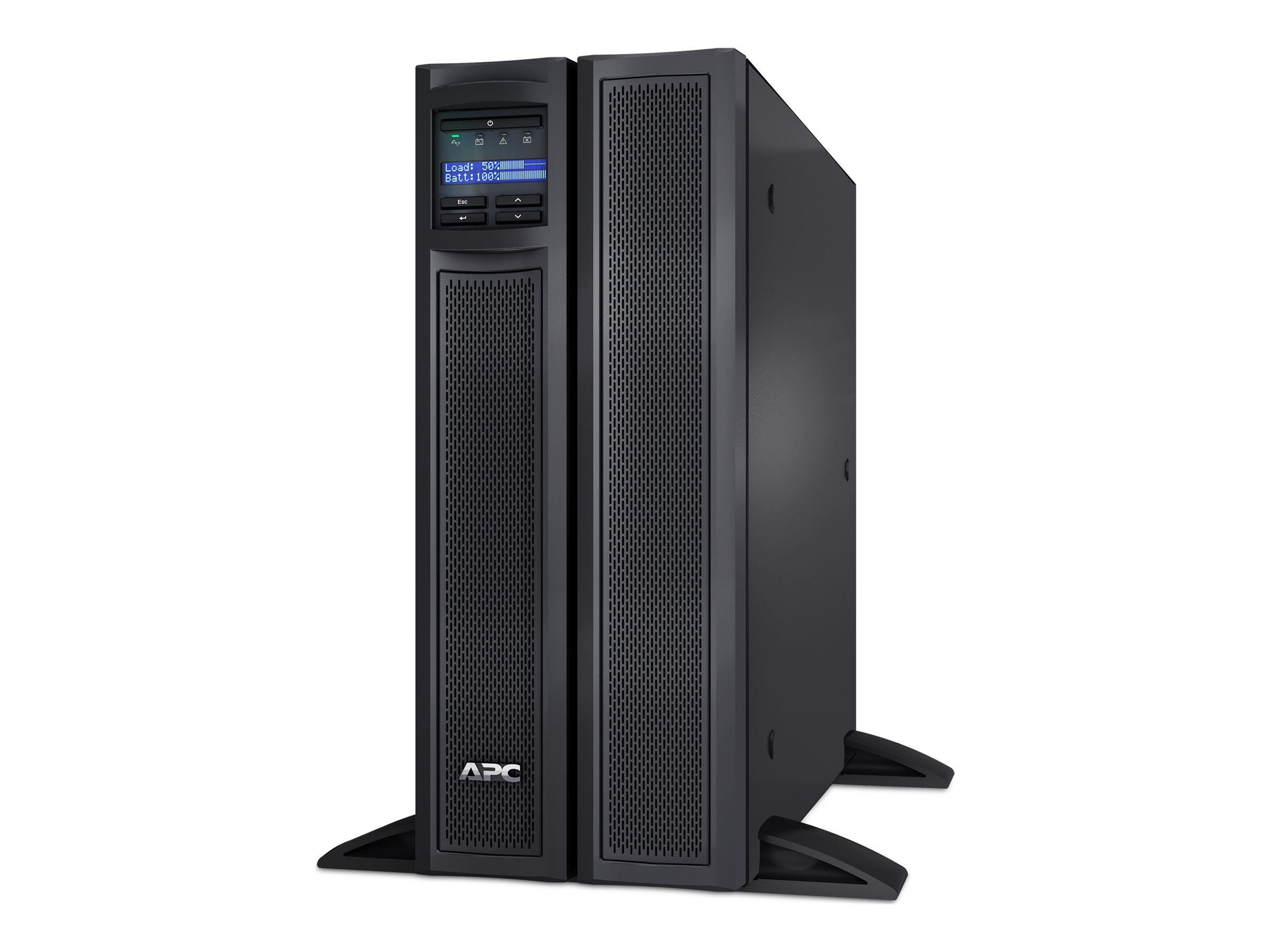

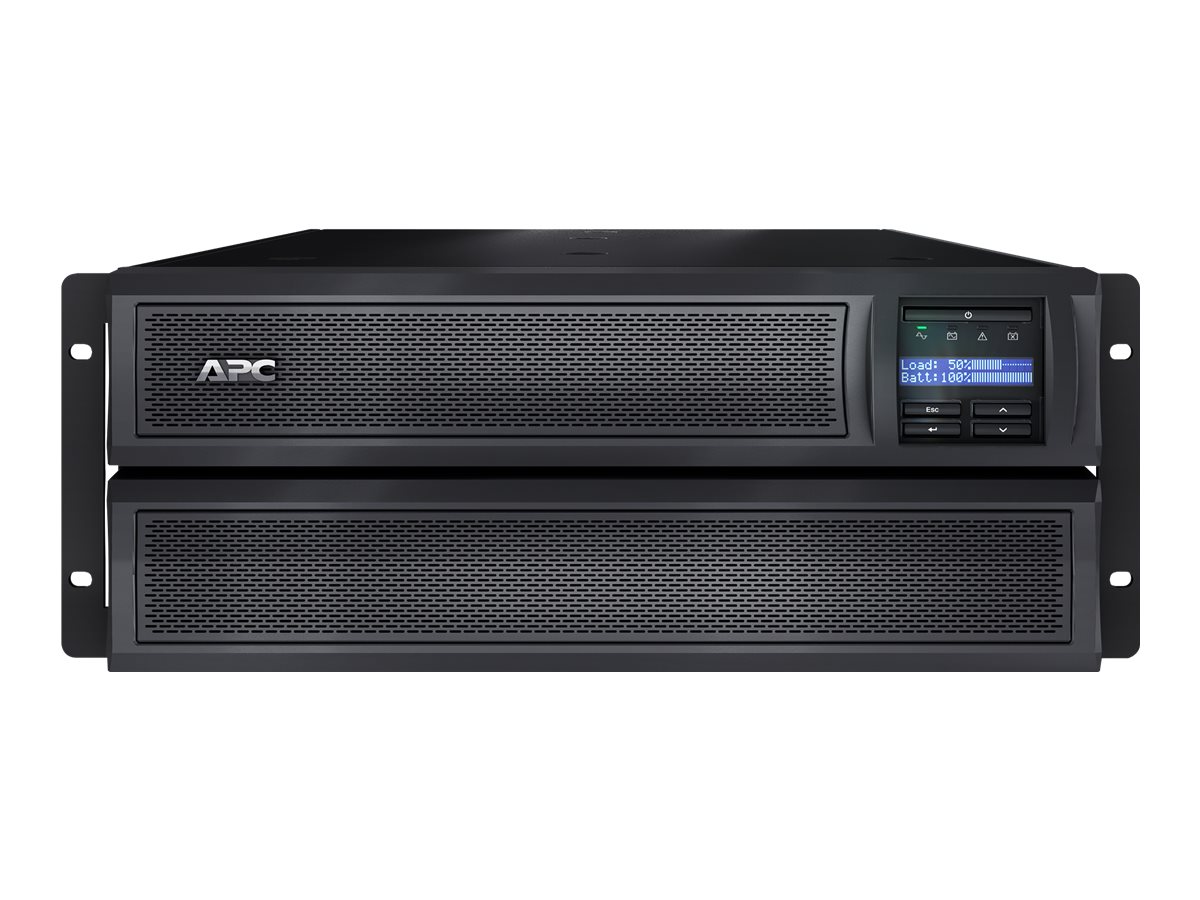

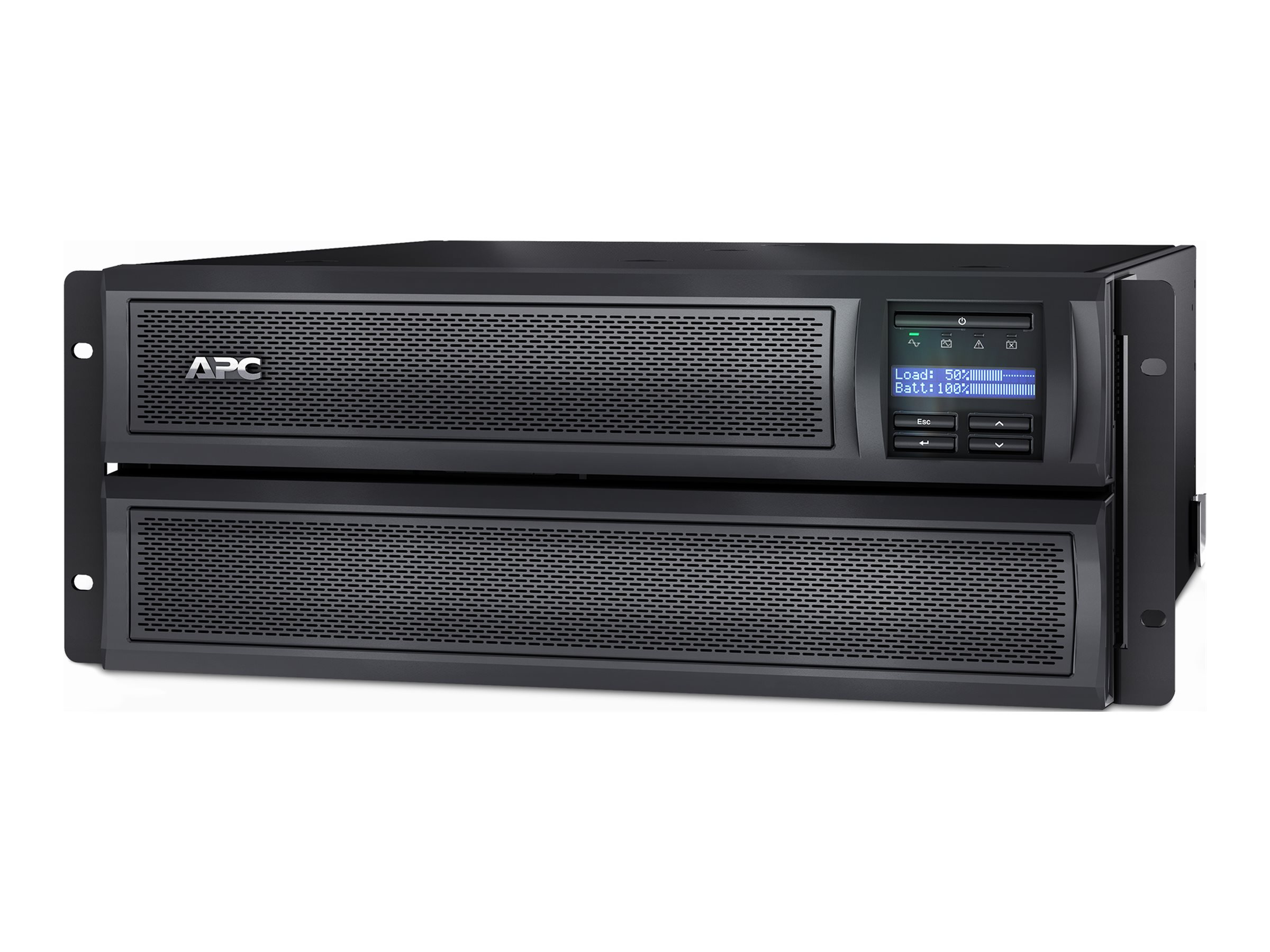

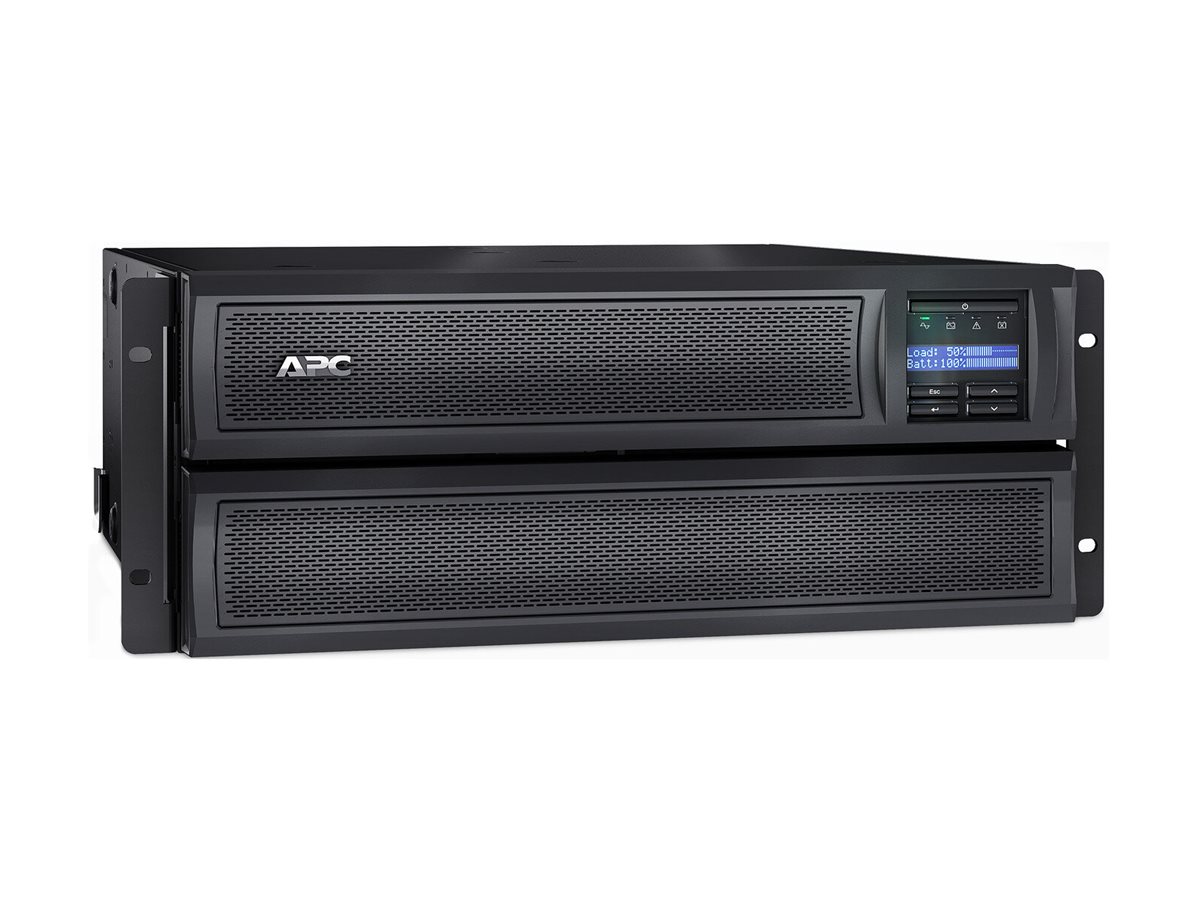

APC Smart-UPS X 2200 Rack/Tower LCD UPS
APC Smart-UPS X 2200 Rack/Tower LCD - UPS (stativ-monterbar / ekstern) - AC 208/240 V - 1980 watt - 2200 VA - 1-faset - Ethernet 10/100, RS-232, USB - output-stikforbindelser: 12 - 4U - sort - APC Take-Back - med APC UPS Network Management Card
Beskyt servere, switche, netværksenheder og kasseterminaler med APC Smart-UPS X 2200VA. APC Smart-UPS giver backupstrøm under strømafbrydelser og beskytter konstant enheder mod svingende strømforhold og udsving i strømstyrken. Med førsteklasses beskyttelse og forenklet administration sikrer 2200VA UPS konsistente og pålidelige tilslutningsmuligheder på de mest kritiske tidspunkter. Med 12 udgange og kompatibilitet med eksterne batterienheder giver denne serverUPS uafbrudt og skalerbar batteristrøm til tilsluttet elektronik. Opret forbindelse til 10 af de eksterne SMX120BP-batterienheder for at øge den tid, UPS'en kan levere batteristrøm til enheder (batteripakker sælges separat). Brug det intuitive LCD-interface og PowerChute-software til at konfigurere indstillinger og overvåge brug. En SmartSlot bag på UPS'en giver mulighed for at tilføje et netværkskort til fjernadministration af UPS'en over netværket (netværkskort sælges separat).
-
Product no 991254223
Model SMX2200HVNC
Brand APC
EAN 0731304327158
Weight 45 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | APC Smart-UPS X 2200 Rack/Tower LCD - UPS - 1980 watt - 2200 VA - med APC UPS Network Management Card |
| Enhedstype | UPS - stativ-monterbar / ekstern |
| Rackstørrelse | 4U |
| Vægt | 38.64 kg |
| Indgangskabler | 1-faset |
| Indgangspænding | AC 208/240 V |
| Udgangspænding | AC 208/230 V |
| Strømkapacitet | 1980 watt / 2200 VA |
| Input-stik | 1 x strøm IEC 60320 C20 |

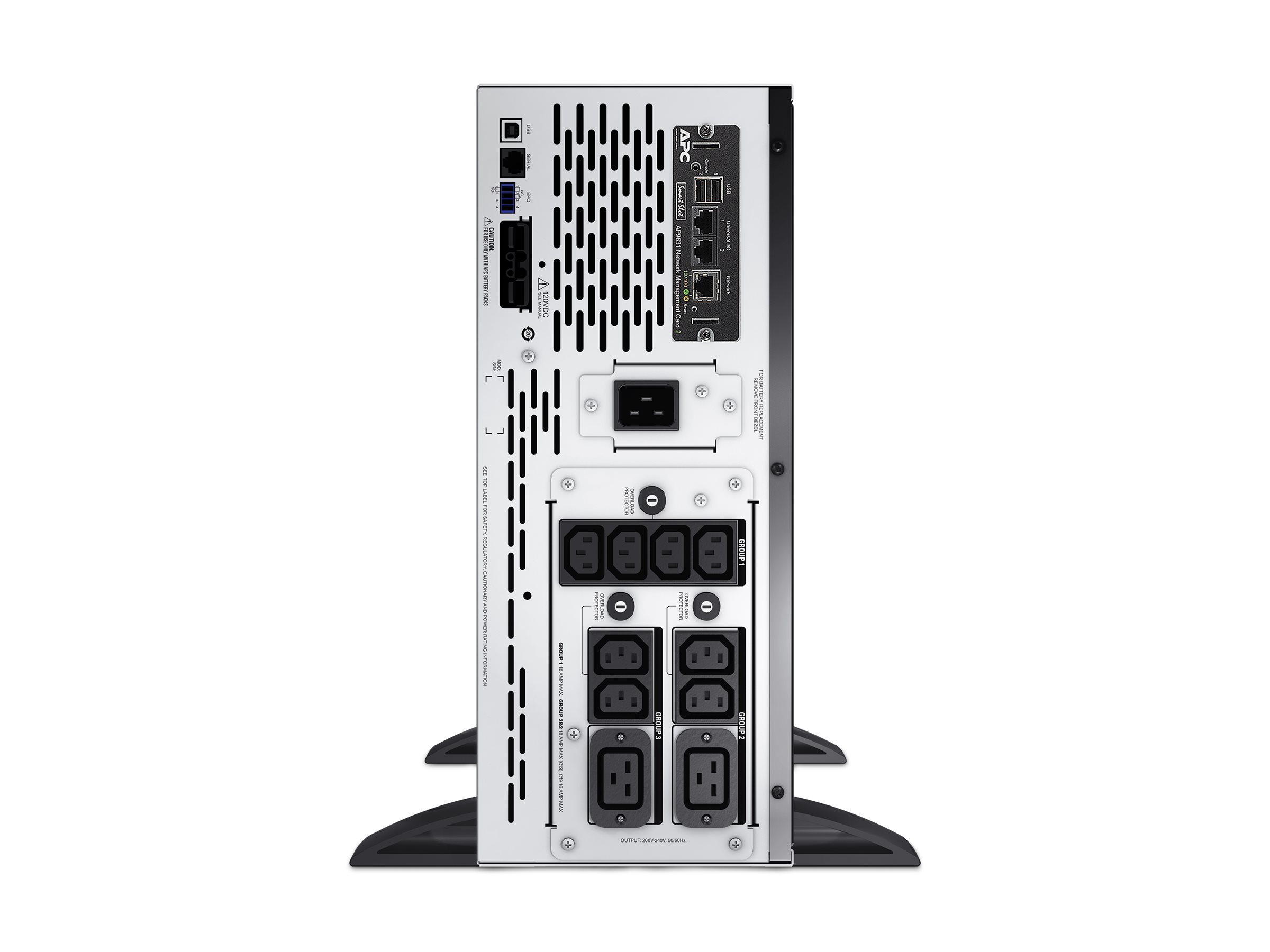

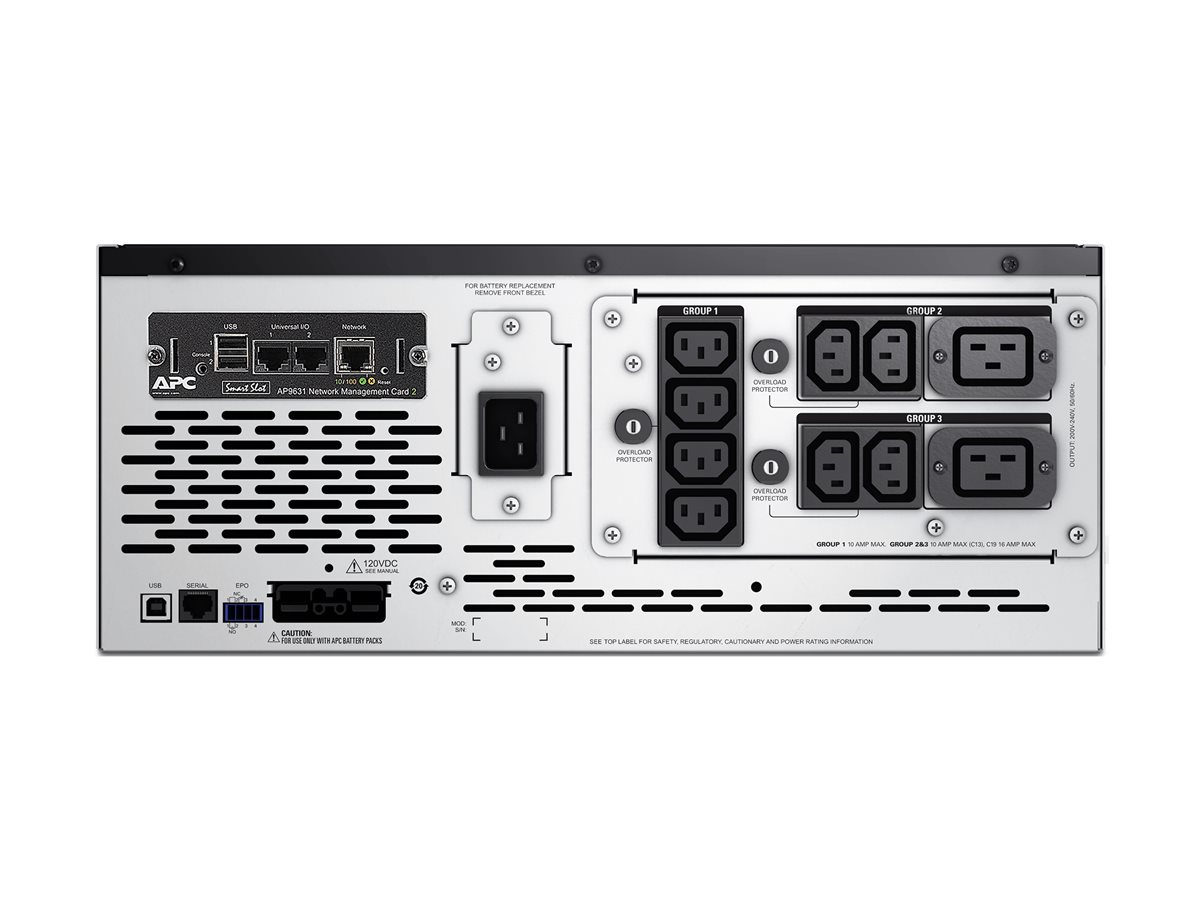

| Output-stikforbindelser | 8 x power IEC 60320 C13<br>2 x IEC-lus<br>2 x strøm IEC 60320 C19 |
| Batteri | Blysyre |
| Antal batterier | 1 |
| Driftstid (op til) | 9.8 min ved fuld belastning |
| Netværk | Ethernet 10/100, RS-232, USB |
| Protokol til fjernadministration | SNMP |
| Farve | Sort |
| Pristype | APC Take-Back |
| Dimensioner (B x D x H) | 43.2 cm x 48.3 cm x 17.8 cm |
| Producentgaranti | 3 års garanti |
| Bundtet med | APC UPS Network Management Card |
| General | |
|---|---|
| Bundled with | APC UPS Network Management Card |
| Color | Black |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 4U |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 98.1% |
| Frequency Provided | 47 - 53 / 57 - 63 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 140 - 280 V |
| Output Voltage | AC 230 V 47 - 53 / 57 - 63 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1980 Watt / 2200 VA |
| Power Output Connectors Details | 8 x power IEC 60320 C13 | 2 x power IEC 60320 C19 |
| Surge Energy Rating | 645 Joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Battery | |
| Quantity | 1 |
| Recharge Time | 3 hours |
| Run Time (Up To) | 9.8 min at full load | 25.3 min at half load |
| Technology | Lead acid |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB |
| Remote Management Protocol | SNMP |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 0 (free) x SmartSlot |
| Interfaces | 1 x USB | 1 x RS-232 | 1 x EPO (emergency power off) |
| Miscellaneous | |
| Cables Included | Serial cable | USB cable | Power cable 1.83 m |
| Compliant Standards | CSA, C-Tick, GOST, UL 1449, UL 1778, VDE, IEC 60950, EN 50091-2, IRAM, RoHS, EN 50091-1, FCC Part 15 A, REACH |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), overload protection, cold-start function |
| Rack Mounting Kit | Included |
| Software / System Requirements | |
| Software Included | APC PowerChute Business Edition |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years | Limited warranty - batteries - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Dimensions & Weight | |
| Depth | 48.3 cm |
| Height | 17.8 cm |
| Weight | 38.64 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 63.3 cm |
| Shipping Height | 33 cm |
| Shipping Weight | 47.73 kg |
| Shipping Width | 58.6 cm |
| Compatibility Information | |
| Designed For | P/N: ACDC2513, AR106SH6, AR109SH6, AR112SH6, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3003, AR3003SP, AR3006, AR3006SP, AR3100G, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3103, |
