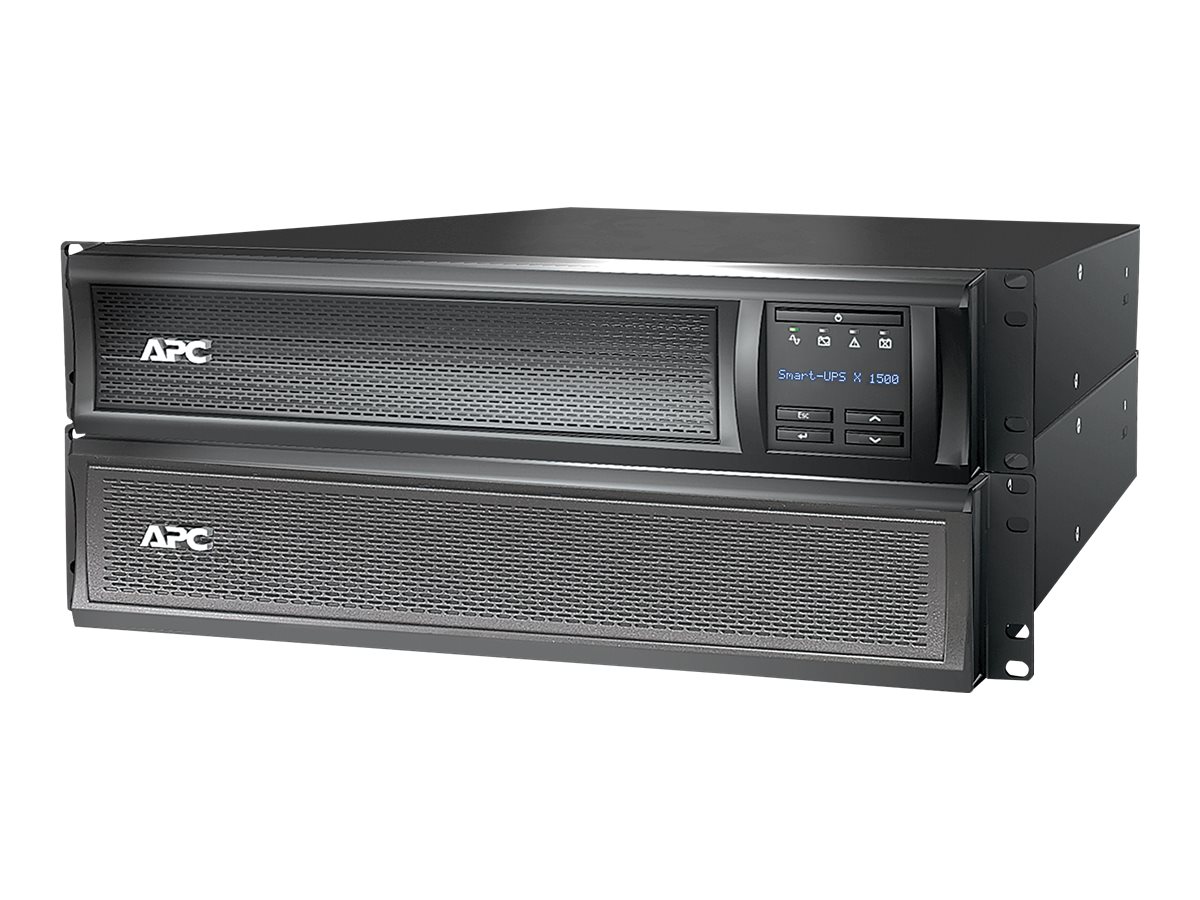

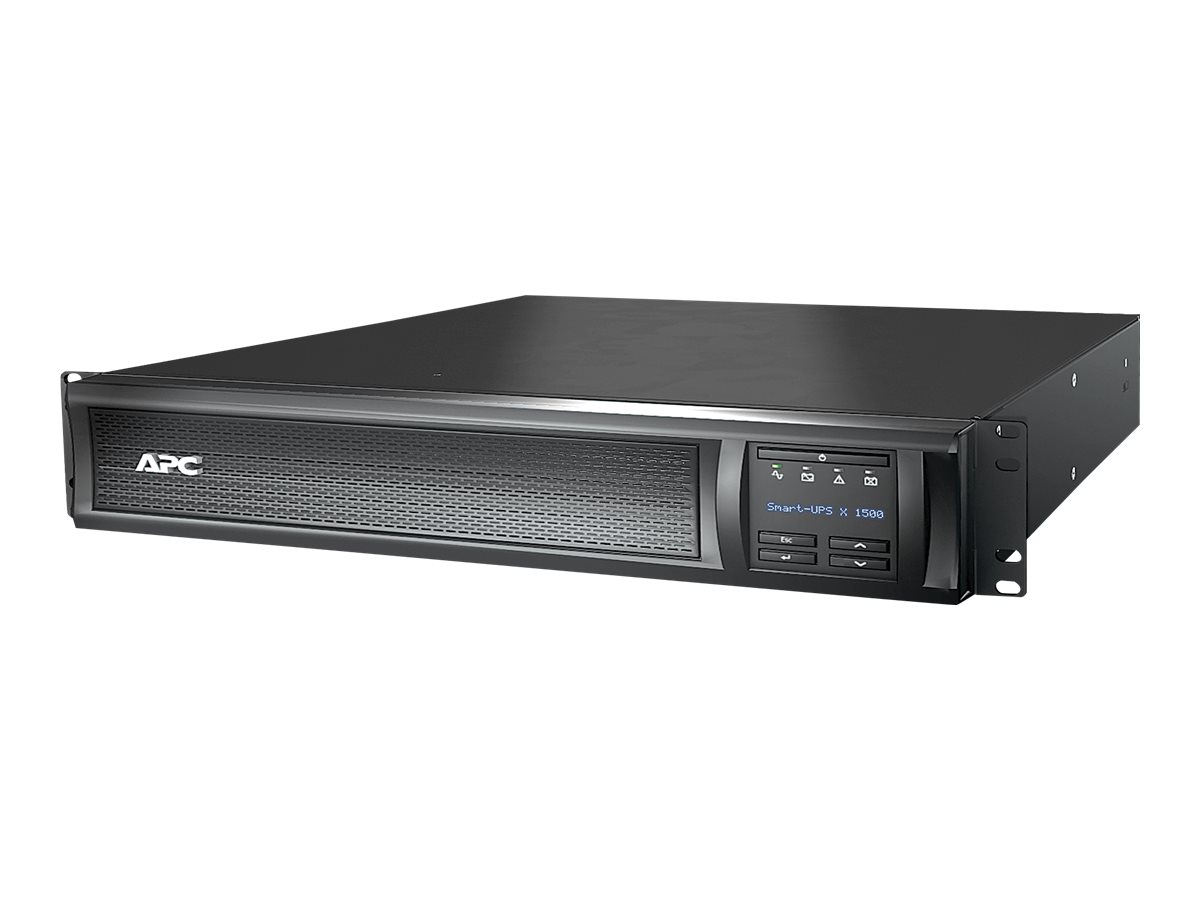

APC Smart-UPS X 1500 Rack/Tower LCD UPS

APC Smart-UPS X 1500 Rack/Tower LCD - UPS (rackversion) - AC 230 V - 1200 Watt - 1500 VA - Ethernet, RS-232, USB - output-stikforbindelser: 8 - 2U - sort - for P/N: AR106SH6, AR106V, AR106VI, AR109SH6, AR112SH6, AR3103, AR3103SP, AR3106, AR3106SP
16 303,00DKK13 042,40DKK excl. VAT

Smart-UPS er en strømforsyningsbeskyttelse med høj ydelse til beskyttelse af erhvervskritisk udstyr. Smart-UPS er en online-UPS som kan anvendes enten som fritstående enhed eller som rackmontering.

  • Product no 527184

    Model SMX1500RMI2UNC

    Brand APC

    EAN 0731304281702

    Weight 32.08 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse APC Smart-UPS X 1500 Rack/Tower LCD - UPS - 1200 Watt - 1500 VA
Enhedstype UPS - rackversion
Rackstørrelse 2U
Vægt 24.8 kg
Indgangspænding AC 230 V
Udgangspænding AC 230 V
Strømkapacitet 1200 Watt / 1500 VA
Input-stik Strøm IEC 60320 C14
Output-stikforbindelser 8 x power IEC 60320 C13
Batteri Blysyre
Batteri formfaktor Indstiksmodul
Antal batterier 1
Driftstid (op til) 5.8 min ved fuld belastning
Netværk Ethernet, RS-232, USB
Farve Sort
Dimensioner (B x D x H) 8.9 cm x 49 cm x 43.2 cm
Producentgaranti 3 års garanti
Designet for P/N: AR106SH6, AR106V, AR106VI, AR109SH6, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3140G, AR3340G, AR3357X674, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, NBWL0356A
General
Battery Enclosure Type Plug-in module
Color Black
Device Type UPS - rack-mountable
Height (Rack Units) 2U
Power Device
Circuit Protection Circuit breaker
Frequency Provided 47 - 63 Hz
Frequency Required 50/60 Hz
Input Connectors Power IEC 60320 C14
Input Voltage AC 230 V
Input Voltage Range AC 160 - 285 V
Input Voltage Range (Adjustable) AC 151 - 302 V
Output Voltage AC 230 V 47 - 63 Hz
Output Waveform Sinewave
Power Capacity 1200 Watt / 1500 VA
Power Output Connectors Details 8 x power IEC 60320 C13
Surge Energy Rating 645 Joules
Surge Suppression Yes
UPS Technology Line interactive
Battery
Quantity 1
Recharge Time 3 hours
Run Time (Up To) 5.8 min at full load | 17.2 min at half load
Technology Lead acid
Networking
Remote Management Interface Ethernet, RS-232, USB
Expansion / Connectivity
Expansion Slots 1 (total) / 0 (free) x SmartSlot
Interfaces 1 x management (RS-232) | 1 x management (USB) | 1 x EPO (emergency power off) | 1 x management (Ethernet) - RJ-45
Miscellaneous
Cables Included Serial cable - external | USB cable - external | Power cable - integrated - 1.8 m
Compliant Standards C-Tick, UL 1449, VDE, EN 50091-2, RoHS Exemption 7b, EN 50091-1
Features Audible alarm, emergency power off, LCD display
Rack Mounting Kit Included
Software / System Requirements
Software Included APC PowerChute Business Edition
Manufacturer Warranty
Service & Support Limited warranty - 3 years | Limited warranty - batteries - 2 years
Environmental Parameters
Humidity Range Operating 0 - 95%
Max Operating Temperature 45 °C
Min Operating Temperature 0 °C
Sound Emission 40 dBA
Dimensions & Weight
Depth 49 cm
Height 43.2 cm
Weight 24.8 kg
Width 8.9 cm
Dimensions & Weight (Shipping)
Shipping Depth 62 cm
Shipping Height 58.9 cm
Shipping Weight 30 kg
Shipping Width 24.6 cm
Compatibility Information
Designed For P/N: ACDC2513, AR106SH6, AR106V, AR106VI, AR109SH6, AR112SH6, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3003, AR3003SP, AR3006, AR3006SP, AR3100G, AR3100TAA, AR3100W, AR3103, AR3103S
