Product no 993933140
Model AK-NU-12
Brand Akyga
EAN 5901720134905
Weight 0.34 kg

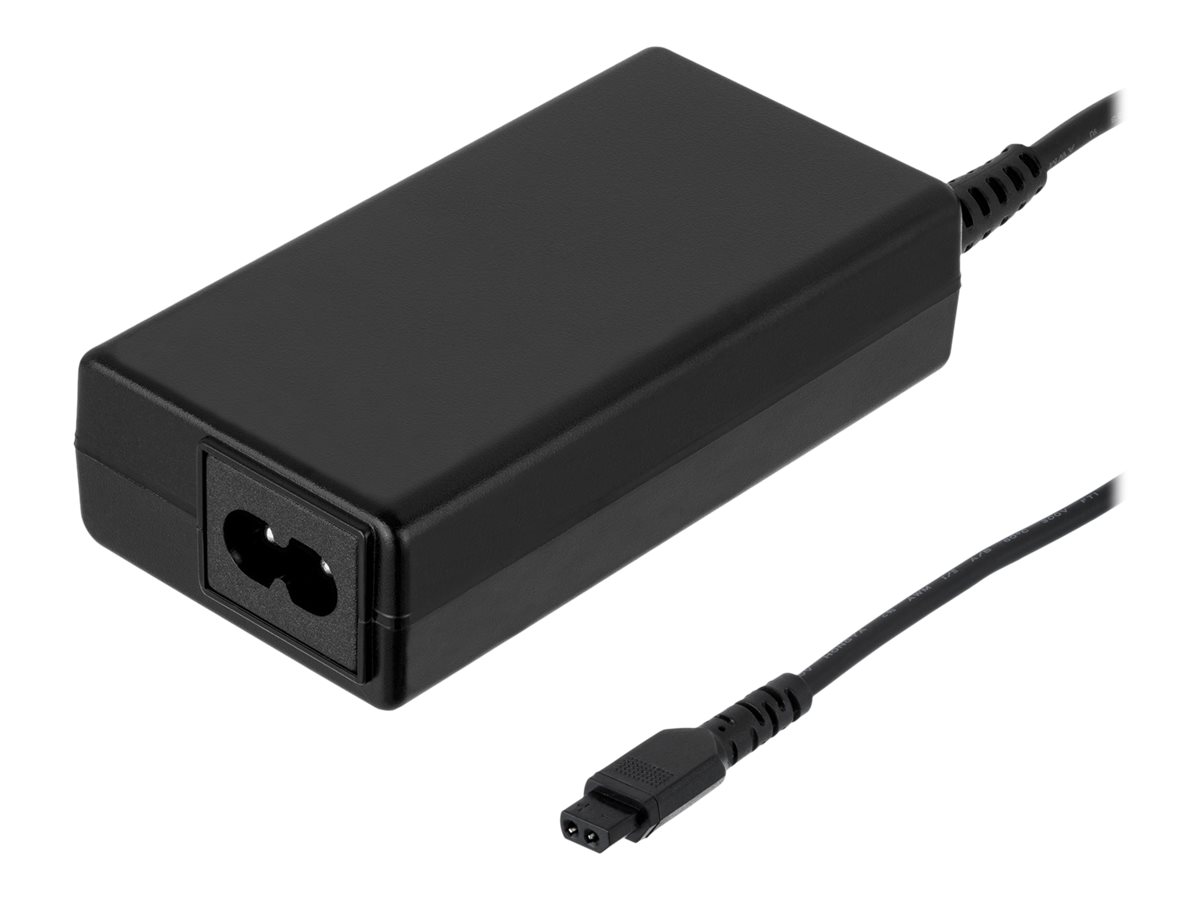

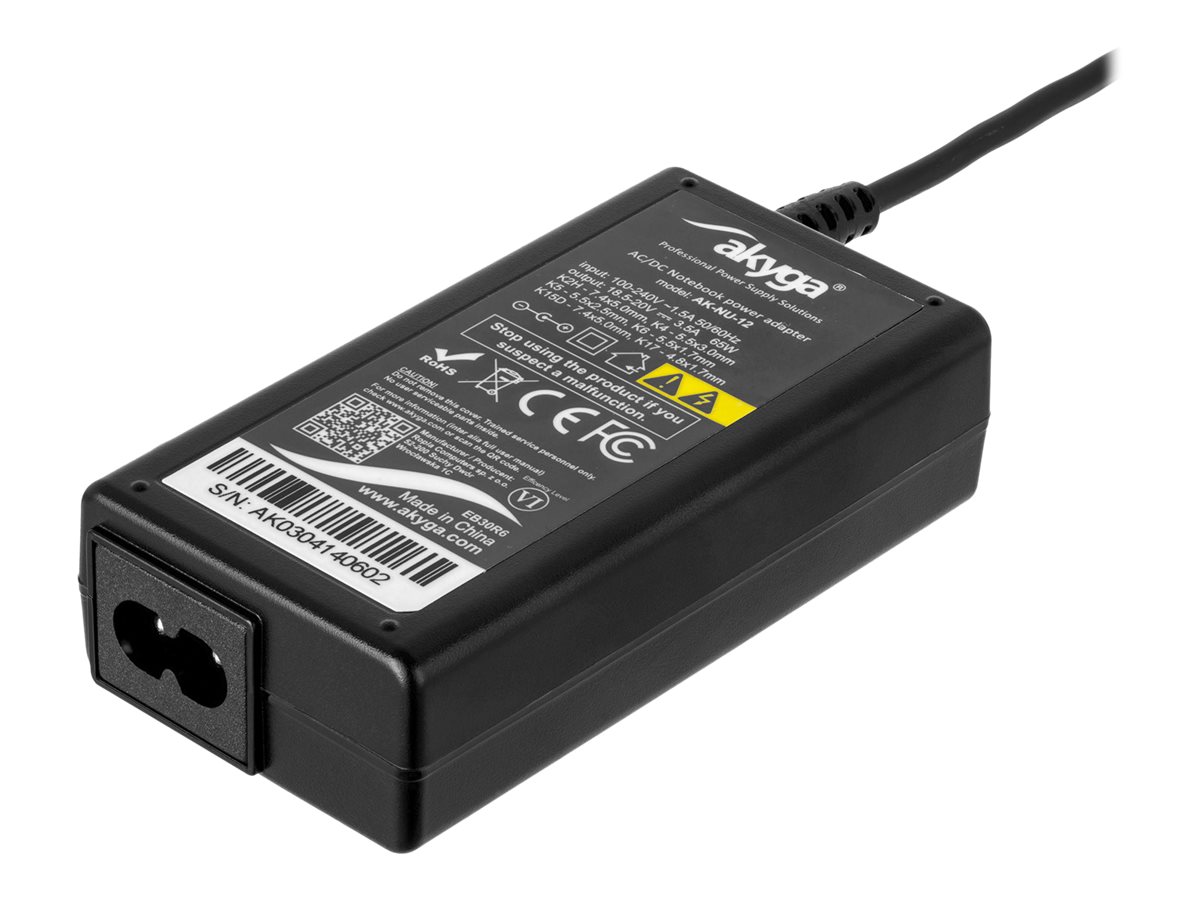

Produktbeskrivelse | Akyga Universal Series AK-NU-12 - strømforsyningsadapter - 65 Watt |
Enhedstype | Strømforsyningsadapter - ekstern |
Vægt | 322.5 g |
Indgangspænding | AC 110-240 V |
Udgangspænding | 18.5 / 19 / 19.5 / 20 V |
Strømkapacitet | 65 Watt |
Input-stik | 1 x strøm IEC 60320 C8 |
Output-stikforbindelser | 1 x strøm DC jackstik 7,4 mm (ID: 5 mm)<br>1 x strøm DC jackstik 5,5 mm (ID: 3,0 mm) - 19 V<br>1 x strøm DC jackstik 5,5 mm (ID: 2,5 mm) - 19 V<br>1 x strøm DC jackstik 5,5 mm (ID: 1,7 mm)<br>1 x strøm DC jackstik 7,4 mm (ID: 5 mm) - 19.5 V<br>1 x strøm DC jackstik 4,8 mm (ID: 1,7 mm) |

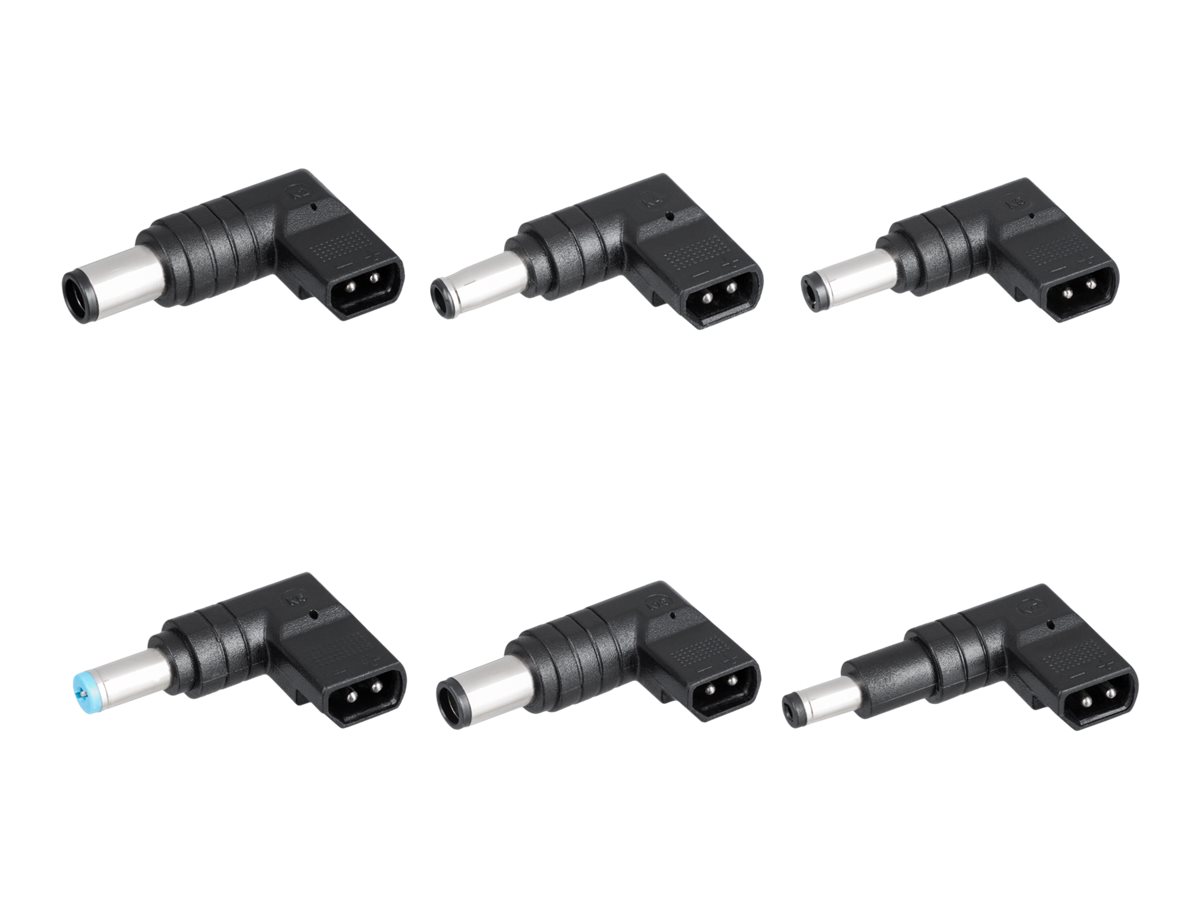

Udstyr inkluderet | 6 notebook-strømspidser |
Farve | Sort |
Dimensioner (B x D x H) | 4.9 cm x 9.5 cm x 2.7 cm |
Producentgaranti | 2 års garanti |
General | |
---|---|
Color | Black |
Device Type | Power adapter - external |
Power Device | |
Efficiency | 80%+ |
Frequency Required | 50/60 Hz |
Input Connectors | 1 x power IEC 60320 C8 |
Input Voltage | AC 110-240 V |
Max Electric Current | 3.5 A |
Output Voltage | 18.5 / 19 / 19.5 / 20 V |
Power Capacity | 65 Watt |
Power Output Connectors Details | 1 x power DC jack 7.4 mm (ID: 5 mm) | 1 x power DC jack 5.5 mm (ID: 3.0 mm) - 19 V | 1 x power DC jack 5.5 mm (ID: 2.5 mm) - 19 V | 1 x power DC jack 5.5 mm (ID: 1.7 mm) | 1 x power DC jack 7.4 mm (ID: 5 mm) - 19.5 V | 1 x power DC jack 4.8 mm (ID: 1 |
Miscellaneous | |

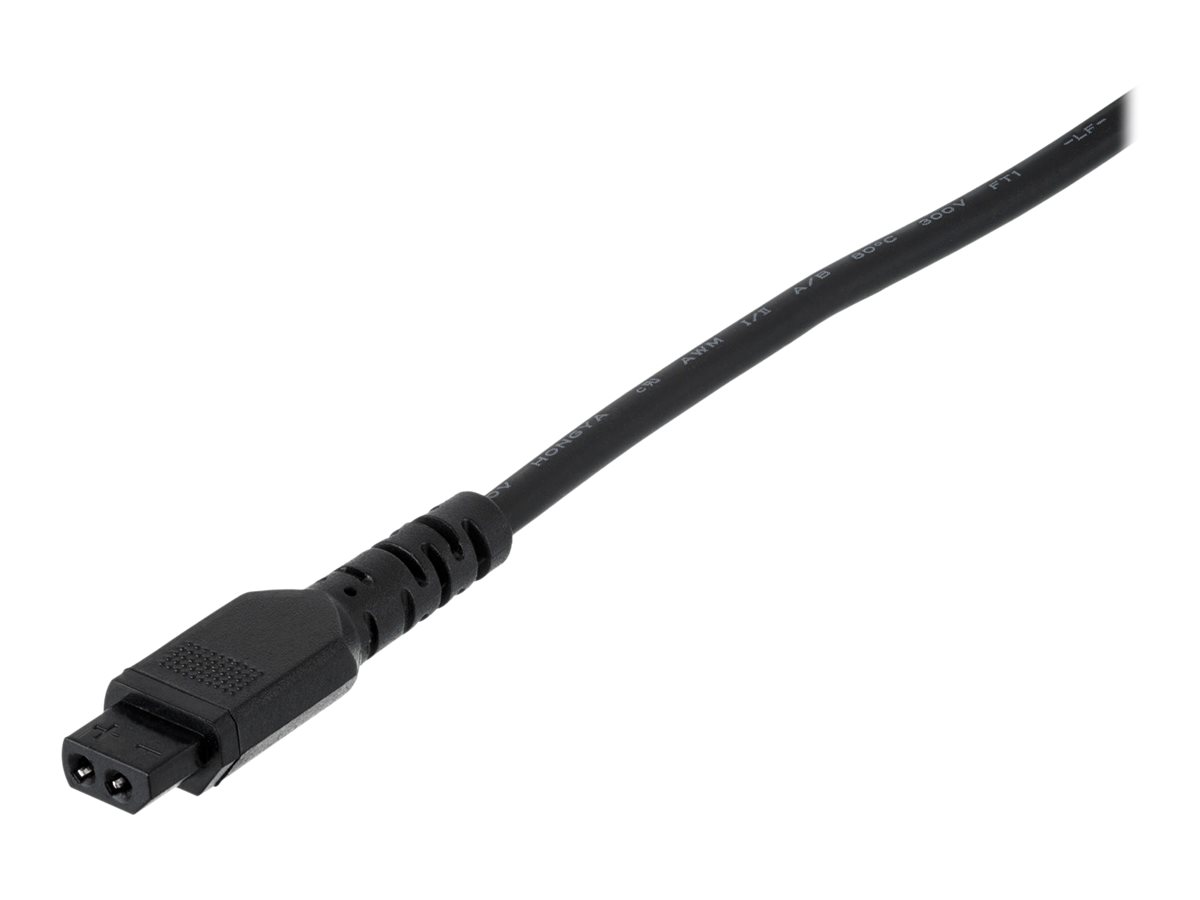

Cables Included | Power cable - integrated - 1.5 m |
Compliant Standards | FCC, RoHS, REACH |
Features | EcoBox package, overheat protection, Automatic Voltage Regulation (AVR), overcurrent protection, overvoltage protection, overpower protection, short-circuit protection, Soft Start Technology (SST) |
Included Accessories | 6 notebook power tips |
MTBF | 100,000 hours |
Manufacturer Warranty | |
Service & Support | Limited warranty - 2 years |
Environmental Parameters | |
Max Operating Temperature | 50 °C |
Min Operating Temperature | 5 °C |
Dimensions & Weight | |
Depth | 9.5 cm |
Height | 2.7 cm |
Weight | 322.5 g |
Width | 4.9 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 19 cm |
Shipping Height | 3.8 cm |
Shipping Weight | 371.5 g |
Shipping Width | 9.2 cm |
