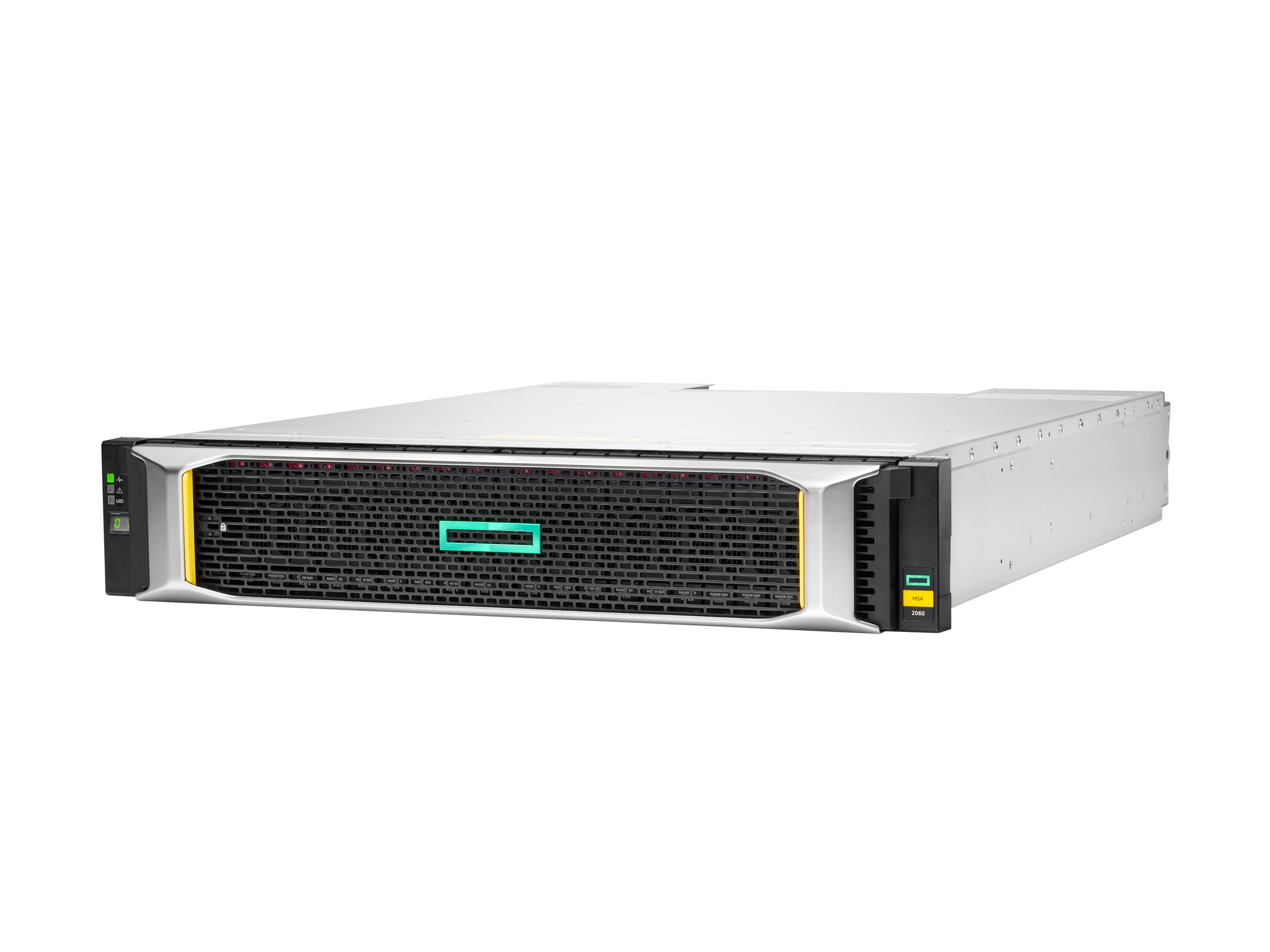

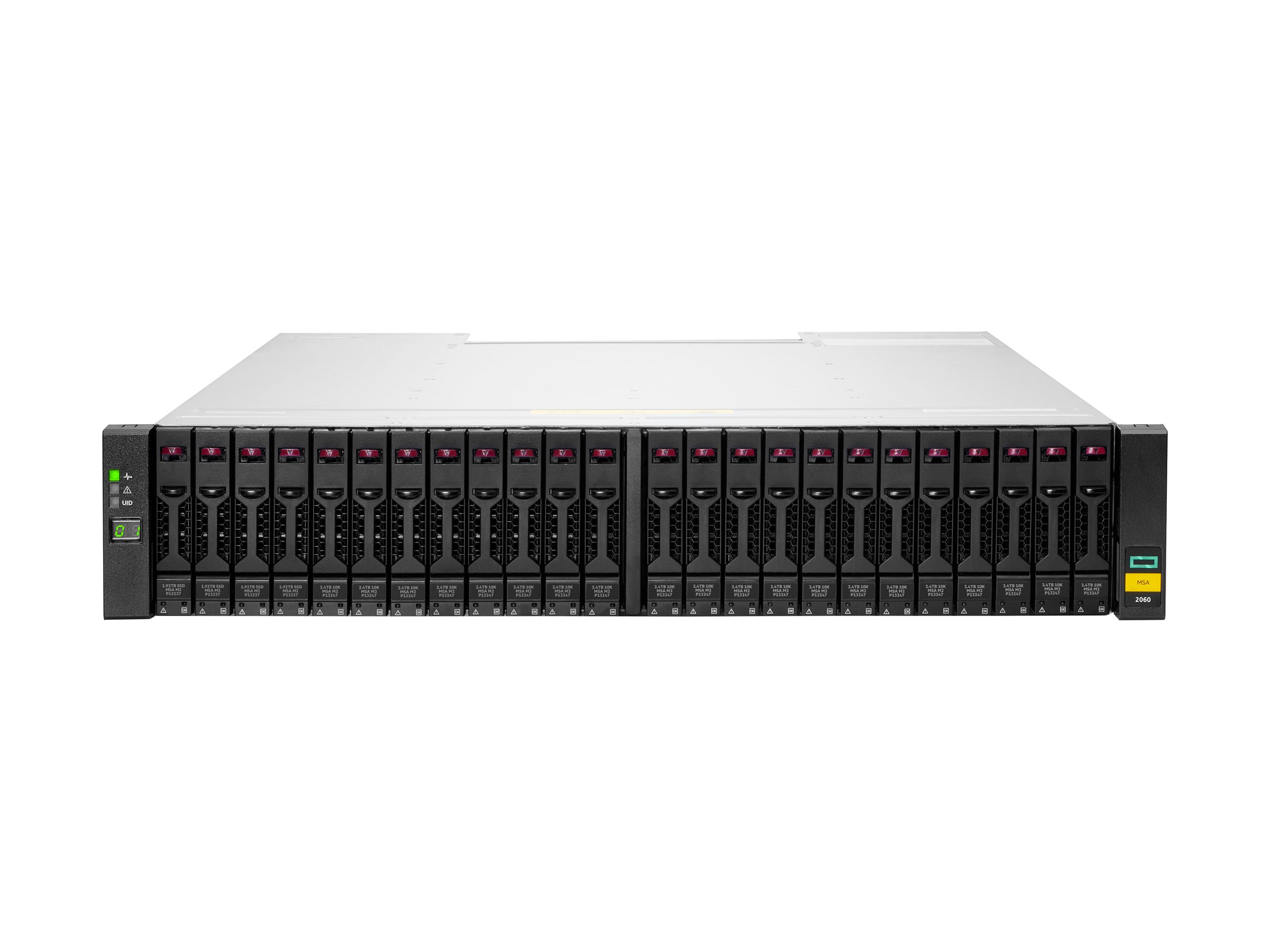

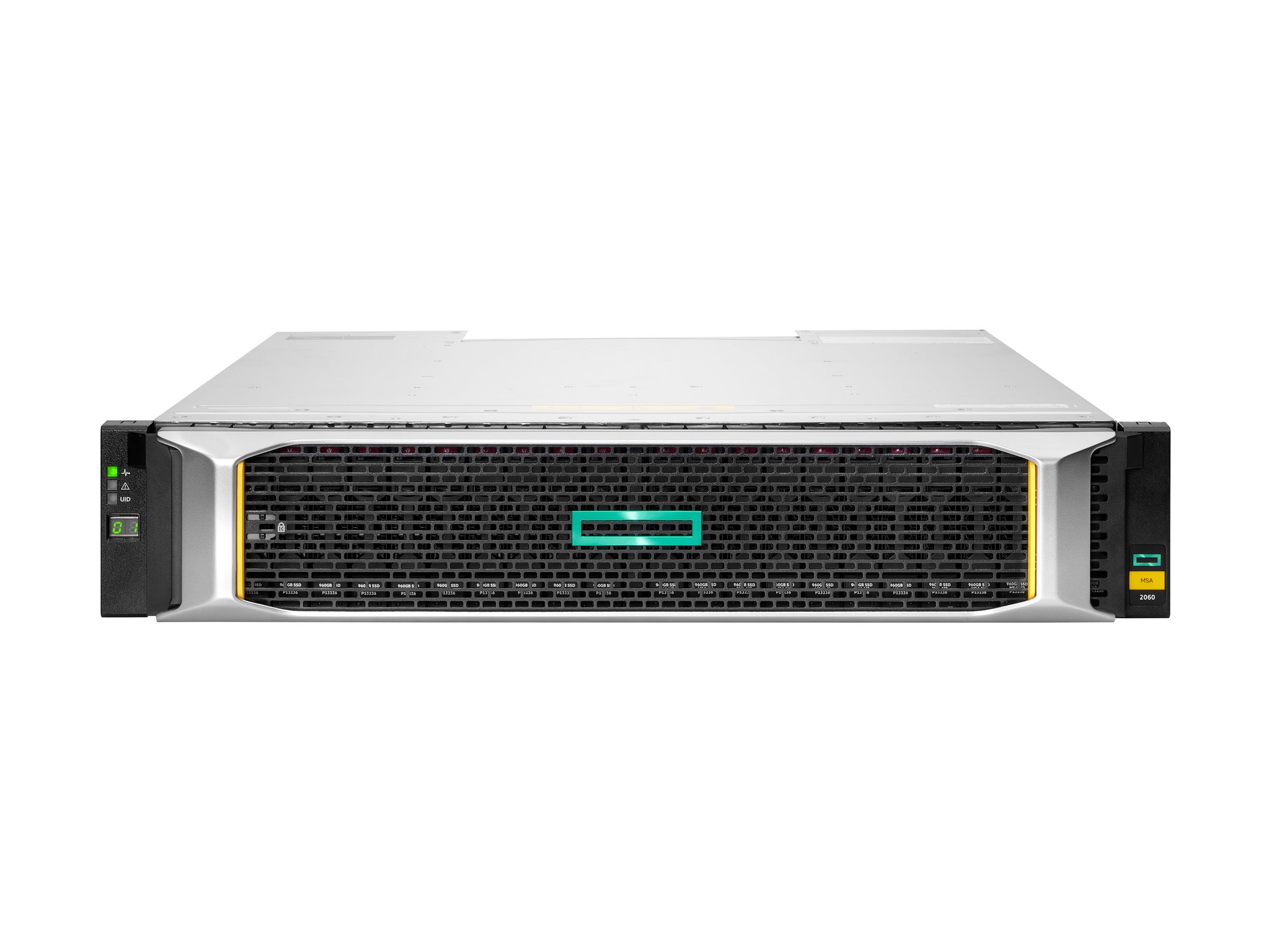

HPE Modular Smart Array 2060 SFF 2x12Gb SAS 4-port Controller Storage Array 24Moduler
HPE Modular Smart Array 2060 SFF 2x12Gb SAS 4-port Controller Storage Array - Solid state/harddisk array - 0 TB - 24 bays (SAS-3) - SAS 12Gb/s (ekstern) - rackversion - 2U - Smart Choice
77 658,00 DKK
62 126,40 DKK excl. VAT
-
Product no 1003967701
Model P89064-B25
Brand Hewlett Packard Ente
EAN 0190017837109
Weight 5 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | HPE Modular Smart Array 2060 SFF 2x12Gb SAS 4-port Controller Storage Array - solid state/harddisk array |
| Enhedstype | Solid state/harddisk array |
| Pakningstype | Rackversion - 2U |
| Totale array-kapacitet | 0 TB |
| Maks. antal understøttet | 737.28 TB |
| Grænseflade | SAS 12Gb/s |
| Installeret udstyr/antal moduler | 0 (installeret) / 24 (maks.) |
| Understøttede drev | SAS-3 |
| Controller for lagring | RAID (SAS 12Gb/s) - RAID 0, 1, 5, 6, 10, MSA-DP+ |
| Controller for lagring Antal | 2 |
| Harddisk | Ingen HDD |
| OS nødvendig | Microsoft Windows Server 2022, Microsoft Windows Server 2019, Microsoft Windows Server 2016, VMware vSphere 6.7 (ESXi), Red Hat Linux 8.0, SUSE Linux Enterprise Server 15 |
| Effekt | AC 100-240 V 50/60 Hz |
| Overskudsspænding | Ja |
| Fabrikant Sælger Program | HPE Smart Choice |
| Dimensioner (B x D x H) | 48.3 cm x 50.8 cm x 8.9 cm |
| Vægt | 5 kg |
| Miljømæssige standarder | ENERGY STAR kvalificeret |
| Producentgaranti | 3 års garanti |
HPE MSA 2060 SFF 2x12Gb SAS 4-port Controller Storage Array
Is your company looking for easy-to-use, affordable, and high-performance shared storage? The HPE MSA 2060 Storage is a flash-ready hybrid storage system designed to deliver hands-free, affordable application acceleration for small and remote office deployments. Don’t let the low cost fool you. It gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced array. Start small and scale as needed with any combination of solid state drives (SSDs), high-performance Enterprise SAS HDDs, or lower-cost Midline SAS HDDs. With the ability to deliver up to 395,000 IOPS, the new HPE MSA 2060 is up to 80% faster than its prior generation with ample horsepower for even the most demanding workloads.1
Customer configurable HPE MSA 2060 storage array models and storage media options available through the HPE Smart Choice program.
HPE Smart Choice MSA Gen6 storage array bundles with up to 240 TB of raw storage capacity included, supporting 16 Gb Fibre Channel, 10 GbE iSCSI, and 12 Gb SAS host connectivity.
MSA Gen6 HDD and SSD media options supporting an increase in MSA 2060 raw capacity of up to a maximum of 7.37 PB.
All MSA Gen6 and Gen7 storage array models are now fully certified for use with HPE Morpheus VM Essentials Software.
Accelerate Applications Affordably
- The HPE MSA 2060 Storage is capable of delivering up to 395,000 IOPS for affordable application acceleration for small to medium-sized businesses.1
- The HPE MSA 2060 Storage allows users to define and deploy hybrid or flash storage configurations from day one and grow as their needs change.
HPE MSA’s "Set It and Forget It" Data Services Do Not Require a Dedicated Storage Administrator
- The HPE MSA 2060 Storage is easy to install, easy to use, and easy to maintain, even for an IT generalist. Administrators will find the MSA 2060’s new Storage Management Utility intuitive and easy to navigate.
- HPE MSA’s automated tiering engine dynamically responds to workload changes so you don’t have to, ensuring the hottest data will be moved to the fastest media automatically and in real time.
Leverage Data Protection Features to Keep Your Business Running in the Event of a Disaster
- The HPE MSA 2060 Storage delivers virtualized snapshot technology, making data protection and instant recovery a snap.
- Remote replication via Fibre Channel (FC) or iSCSI facilitates an affordable disaster recovery solution.
- Encrypted SSDs and HDDs with local key management can be deployed to deliver a secure, encrypted hybrid flash array.
Flexible, Modular Architecture That Facilitates Growth into the Future
- The HPE MSA 2060 Storage solution supports a mixture of 3.5-inch LFF and 2.5-inch SFF expansion enclosures for a maximum of nine enclosures (10 total including the array).
- Start small and scale as needed with any combination of SSDs, Enterprise SAS HDDs, or Midline SAS HDDs.
Specifications
| TechnicalSpecifications | |
|---|---|
| Capacity | Up to 7.37 PB (all SFF) depending on model and drive mix, with full expansion |
| Form factor | 2U rack mount (base array model) |
| Storage expansion options | 24 drive bay 2060 SFF drive enclosure or 12 drive bay 2060 LFF drive enclosure (add up to 9 with any combination) |
| Drive description | Up to 24 SFF HDD and/or SSD per array base model |
| Storage controller | 2x 12 Gb SAS controllers per array, 4-ports each (8-ports total) |
| Compatible operating systems | Windows Server® 2022 Windows Server® 2019 Windows Server® 2016 VMWare vSphere™ 6.7 Red Hat® Linux 8 SUSE™ SLES 15 See HPE SPOCK for more details. |
| Warranty | Three-year limited warranty, parts exchange next business day delivery on all base arrays and drive enclosures. MSA drives and other options carry a separate warranty. |
| Product dimensions (metric) | 8.9 x 44.5 x 50.8 cm |
| Weight | 5 kg |
