Case Type
|
Mid Tower
|
|
Dimensions
|
411 x 285 x 447 mm
|
|
Side Panel
|
3mm Tempered Glass x 2
|
|
Color
|
Snow
|
|
Material
|
SPCC
|
|
Expansion Slots
|
7
|
|
Motherboard
|
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
|
|

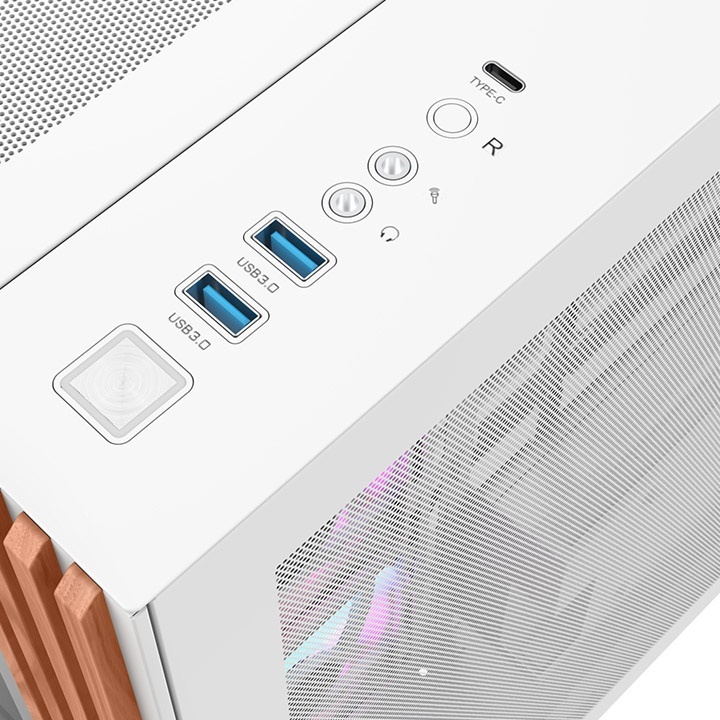

I/O Port
|
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
|
|
Fan Support Top
|
3 x 120mm, 2 x 120mm, 1 x 120mm,
|
|
Fan Support Right
|
3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm
|
|
Fan Support Rear
|
1 x 120mm
|
|
Fan Support Bottom
|
3 x 120mm, 2 x 120mm, 1 x 120mm
|
|
Radiator Support Top
|
1 x 360mm, 1 x 240mm, 1 x 120mm
|
|
Radiator Support Right
|
1 x 240mm, 1 x 120mm, 1 x 280mm, 1 x 140mm
|
|
Radiator Support Rear
|
1 x 120mm
|
|
Radiator Support Bottom
|
1 x 360mm, 1 x 240mm, 1 x 120mm
|
|
VGA length limitation
|
415mm
|
|
PSU length limitation
|
200mm
|
|
CPU Cooler length limitation
|
160mm
|
|

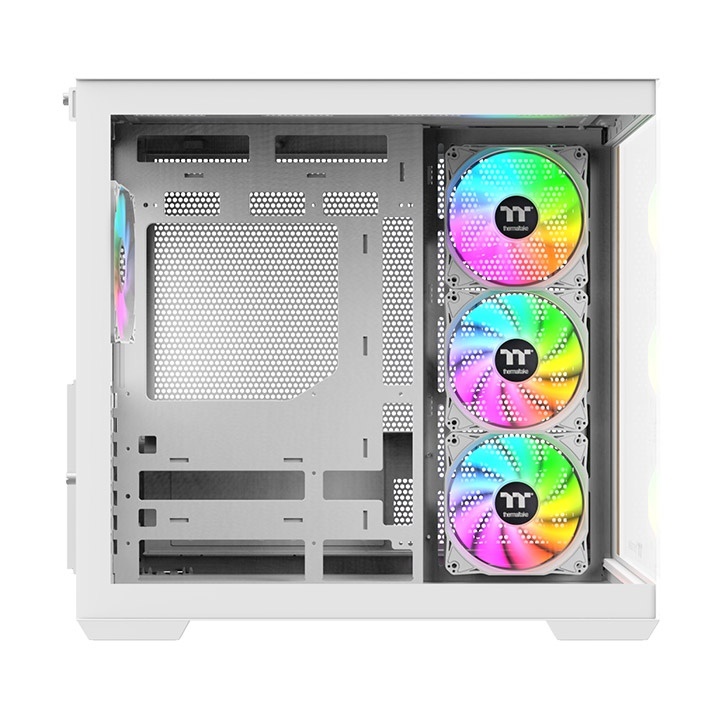

Cooling system
|
Right: 3x 120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA), Rear: 1x 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA)
|
|
Drive Bays
|
1 x 3.5”, 2 x 2.5”
|
|
Hidden-Connector Motherboard
|
Yes - 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
|
