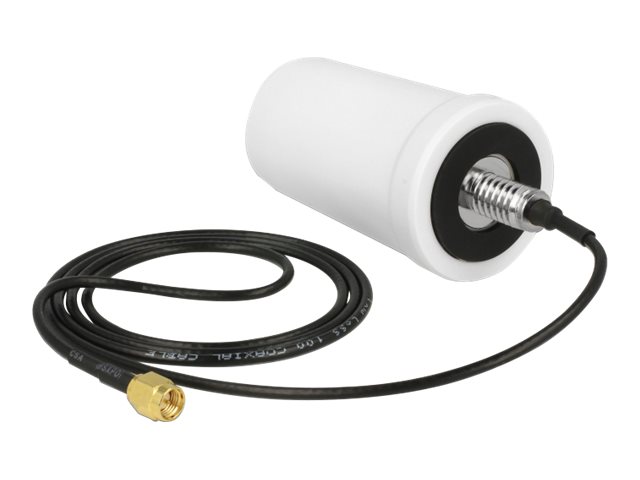

Delock LoRa Antenne 7.7cm Hvid
Delock LoRa - Antenne - mobil, Wi-Fi, Bluetooth - 1,7 dBi (til 1710 - 2170 MHz), 2,01 dBi (til 2300 - 2700 MHz), 1,7 dBi (til 698 - 960 MHz) - omni-directional - udendørs - hvid
515,00 DKK
412,00 DKK excl. VAT
-
Product no 993707936
Model 12545
Brand DeLOCK
EAN 4043619125456
Weight 0.13 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Delock LoRa antenne |
| Produkttype | Antenne |
| Pakke Indhold | Antennekabel (1 m) |
| Dimensioner (B x D x H) | 4.5 cm x 7.7 cm x 7.7 cm |
| Produktmateriale | Polykarbonat |
| Farve | Hvid |
| Beregnet til | Mobil, Wi-Fi, Bluetooth |
| Antenneplacering/montering | Udendørs |
| Kompatibilitet | DECT, UMTS, GSM, TETRA, LTE, ISM, Bluetooth, ZigBee, Z-Wave, LoRa, NB-IoT |
| Frekvensrækkevidde | 2.3 - 2.7 GHz, 1.7 - 2.17 GHz, 698 - 960 MHz |
| Forstærkning | 1,7 dBi (til 1710 - 2170 MHz), 2,01 dBi (til 2300 - 2700 MHz), 1,7 dBi (til 698 - 960 MHz) |
| Direktivitet | Omni-directional |
| General | |
|---|---|
| Cable Length | 1 m |
| Depth | 7.7 cm |
| Enclosure Color | White |
| Height | 7.7 cm |
| Package Content | Antenna cable (1 m) |
| Product Material | Polycarbonate |
| Product Type | Antenna |
| Width | 4.5 cm |
| Antenna | |
| Antenna Placing / Mounting | Outdoor |
| Compatibility | DECT, UMTS, GSM, TETRA, LTE, ISM, Bluetooth, ZigBee, Z-Wave, LoRa, NB-IoT |
| Directivity | Omni-directional |
| Frequency Range | 2.3 - 2.7 GHz, 1.7 - 2.17 GHz, 698 - 960 MHz |
| Gain | 1.7 dBi (for 1710 - 2170 MHz), 2.01 dBi (for 2300 - 2700 MHz), 1.7 dBi (for 698 - 960 MHz) |
| Intended For | Cellular, Wi-Fi, Bluetooth |
| Voltage Standing Wave Ratio (VSWR) | 2.5:1 (for 1710 - 2170 MHz), 2.5:1 (for 2300 - 2700 MHz), 2.0:1 (for 698 - 960 MHz) |
| Cabling & Wiring | |
| Connector Provided | 1 x SMA |
| Miscellaneous | |
| Features | IP67 protection |
| Environmental Parameters | |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
