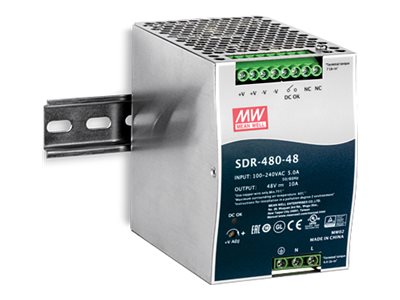

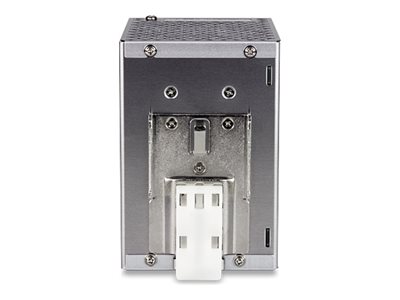

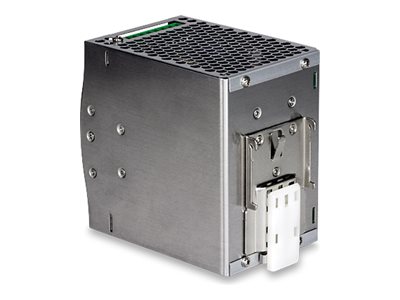

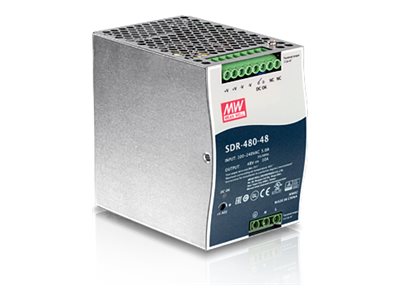

TRENDnet TI-S48048 Strømforsyning 480Watt

TRENDnet TI-S48048 - Strømforsyning (monterbar på DIN rail) - AC 115/230 V - 480 Watt - aktiv PFC - TAA-kompatibel
1 884,00DKK1 507,20DKK excl. VAT

  • Product no 994602836

    Model TI-S48048

    Brand
    Go to brand's website

    EAN 0710931161441

    Weight 1.64 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse TRENDnet TI-S48048 - strømforsyning - 480 Watt - TAA-kompatibel
Enhedstype Strømforsyning - aktiv Power Factor Correction (PFC) - monterbar på DIN rail
Vægt 1.6 kg
Indgangspænding AC 115/230 V
Udgangspænding DC 48 V
Strømkapacitet 480 Watt
TAA kompatibel TAA-kompatibel
Dimensioner (B x D x H) 8.55 cm x 12.85 cm x 12.5 cm
Producentgaranti 3 års garanti
General
Device Type Power supply - active Power Factor Correction (PFC) - DIN rail mountable
Power Device
Efficiency 94%
Frequency Required 47 - 63 Hz
Input Voltage AC 115/230 V
Input Voltage Range AC 90 - 264 / DC 127 - 370 V
Max Electric Current 10 A
Output Voltage DC 48 V
Power Capacity 480 Watt
Power Factor (PF) 0.94
Miscellaneous
Compliant Standards TUV, EN 61000-3-2, EN55022, EN55024, CISPR 22, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, EN 61000-4-8, EN 60950-1, UL 508, EN 55011, CB 60950-1, EN 61204-3 Class B, SEMI F47, GL
Features Overheat protection, LED indicators, overvoltage protection, overload protection, fanless, short-circuit protection
MTBF 1,129,000 hours
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Environmental Parameters
Humidity Range Operating 95% (non-condensing)
Max Operating Temperature 70 °C
Min Operating Temperature -25 °C
Dimensions & Weight
Depth 12.85 cm
Height 12.5 cm
Weight 1.6 kg
Width 8.55 cm
