CPU
|
Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
|
|
Chipset
|
Intel® B860
|
|
Memory
|
4x DDR5 DIMM Slots, Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC) Max: 256GB
|
|
BIOS
|
256Mb AMI UEFI Legal BIOS with GUI support
|
|
Graphics
|
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3, 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3
|
|
Audio
|
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
|
LAN
|
Dragon RTL8125BG - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
|
|
Wireless LAN
|
802.11axe 2x2 Wi-Fi 6E Module, Bluetooth 5.3
|
|
Slots
|
1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
|
|
Storage
|
1x Blazing M.2 Socket, supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, 1x M.2 Socket, supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 1x Hyper M.2 Socket, supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 4x SATA3 6.0 Gb/s Connectors
|
|
USB
|
1x USB 3.2 Gen2x2 Type-C (Rear), 1x USB 3.2 Gen1 Type-C (Front), 8x USB 3.2 Gen1 (6 Rear, 2 Front), 6x USB 2.0 (2 Rear, 4 Front)
|
|

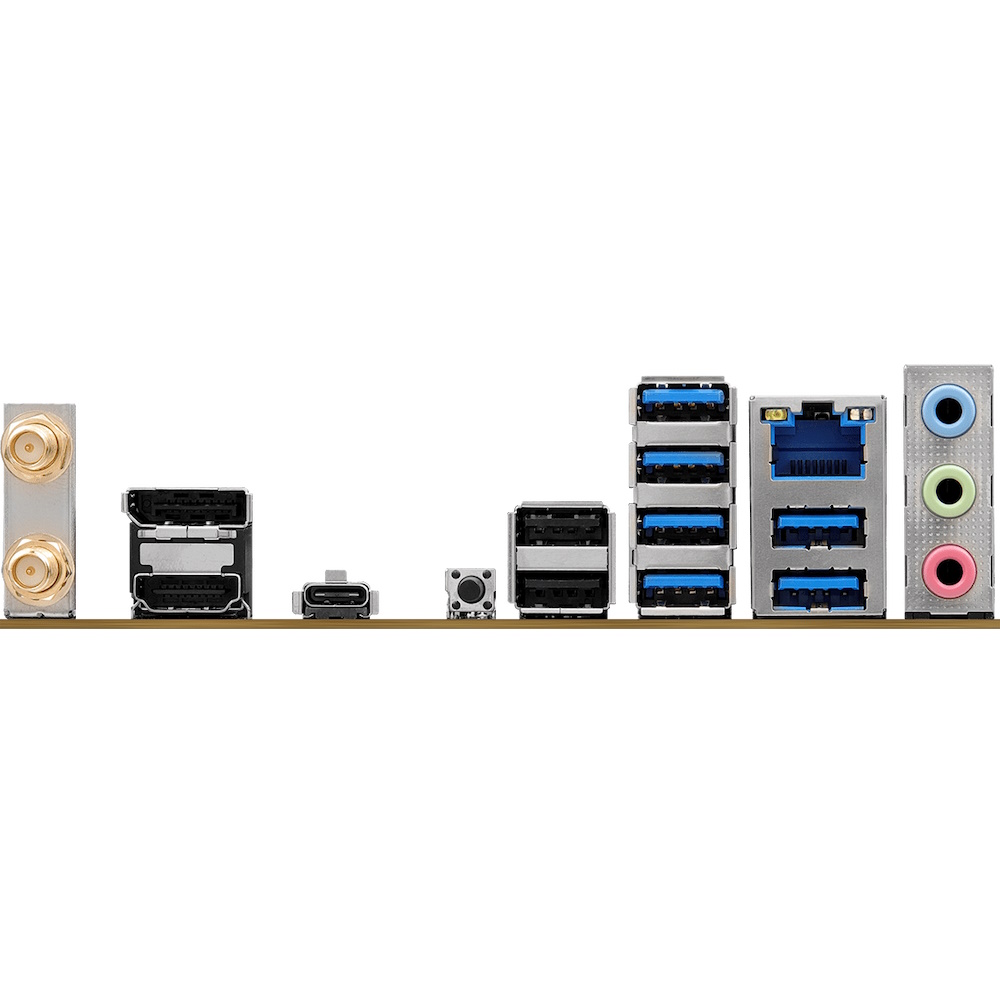

Rear Panel I/O
|
2x Antenna Ports, 1x HDMI Port, 1x DisplayPort 1.4, 1x USB 3.2 Gen2x2 Type-C Port (20 Gb/s), 6x USB 3.2 Gen1 Ports, 2x USB 2.0 Ports, 1x RJ-45 LAN Port, 1x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone
|
|
Accessories
|
1x I/O Shield, 2x SATA Data Cables, 2x ASRock WiFi 2.4/5/6 GHz Antennas
|
|
Form Factor
|
ATX Form Factor: 30.5 cm x 24.4 cm
|
|
Certifications
|
FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)
|
FRI FRAGT TIL PAKKESHOP PÅ ALLE ORDRER OVER 1000,- KRONER

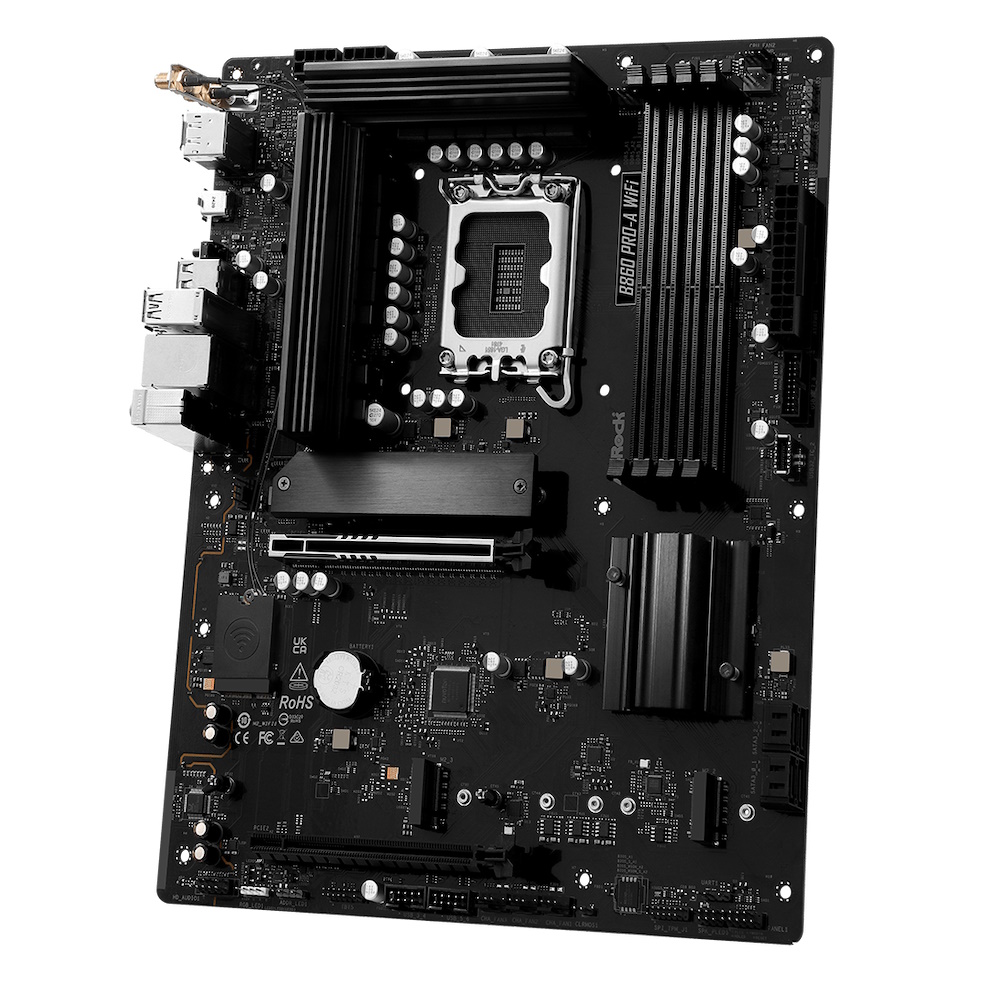

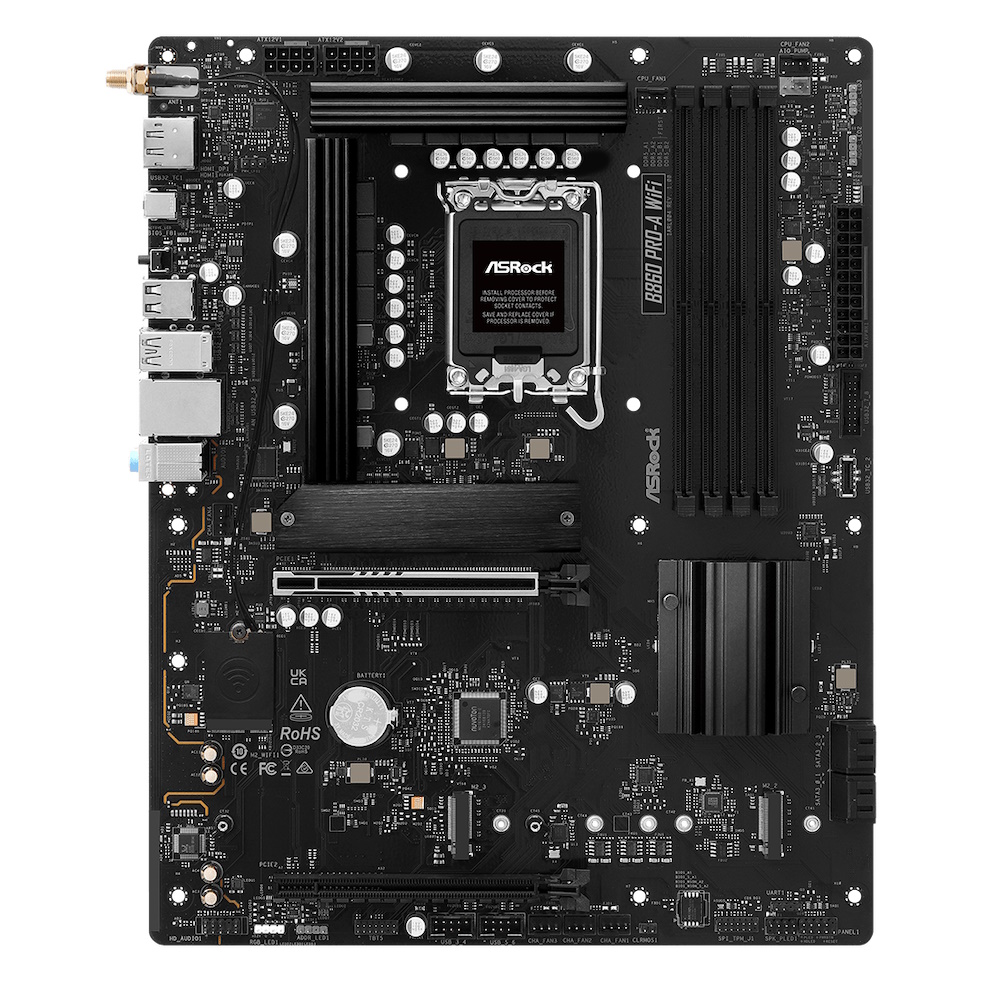

ASRock B860 Pro-A WiFi ATX S1851
ASRock B860 Pro-A WiFi - ATX - Socket LGA1851 - WiFi 6E - 4x DDR5 slots - HDMI 2.1 - DisplayPort 1.4 - Dragon RTL8125BG
Varenummer:
1002951777
Model:
90-MXBRL-A0UAYZ
EAN:
4711581490253
Producent:
Vægt:
1.59 kg
Specifikationer
Udv. specifikationer
|
Generelt
|
|
|---|---|
|
Chipsættype
|
Intel B860
|
|
Kompatible processorer
|
(understøtter Intel Core Ultra-processorer (Serie 2))
|
|
Max antal processorer
|
1
|
|
Processor-socket
|
LGA1851 sokkel
|
|
Produkttype
|
Bundkort - ATX
|
|
Understøttet RAM
|
|
|
Bus Clock
|
8666 MHz (O.C.), 5600 MHz, 6800 MHz (O.C.), 6533 MHz (O.C.), 4800 MHz, 5600 MHz (O.C.), 4400 MHz
|
|
Egenskaber
|
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 3.0
|
|
Maks. størrelse
|
256 GB
|
|
Registreret eller buffer
|
Ikke bufferet
|
|
Teknologi
|
DDR5
|
|
Understøttet RAM-integritetskon
|
Ikke-ECC
|
|
Audio
|
|
|
Audio codec
|
Realtek ALC897
|
|
Overensstemmelsesstandarder
|
High Definition Audio
|
|
Type
|
HD Audio (8-kanaler)
|
|
LAN
|
|
|
Netværk controller
|
Dragon RTL8125BG
|
|
Netværks interfaces
|
802.11a/b/g/n/ac/ax (Wi-Fi 6E), 2.5 Gigabit Ethernet, Bluetooth 5.3
|
|
Ekspansion / Konnektivitet
|
|
|
Ekspansionsåbninger
|
1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 5.0 x16 | 1 x PCIe 4.0 x4 | 1 x M.2 socket (Key E, til trådløs modul) | 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M åbning) | 2 x M.2 socket (2280 M.2 Key M-åbning)
|
|
Grænseflade (lagring)
|
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 4.0 -stikforbindelser: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 5.0 -stikforbindelser: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
|
|
Interface
|
2 x antenne | 1 x LAN (2.5Gigabit Ethernet) | 1 x HDMI | 1 x DisplayPort | 1 x USB-C 3.2 Gen2x2 | 6 x USB 3.2 Gen 1 | 2 x USB 2.0 | 1 x audio linje-ind - mini-jack | 1 x højttaler - mini-jack | 1 x mikrofon - mini-jack
|
|
Interne interfaces
|
1 x USB-C 3.2 Gen 1 - intern stik | 2 x USB 3.2 Gen 1 - intern stik | 4 x USB 2.0 - intern stik | 1 x SPI - intern stik | 1 x audio - intern stik
|
|
Strømkontakter
|
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
|
|
Egenskaber
|
|
|
BIOS-egenskaber
|
UEFI BIOS
|
|
BIOS-type (Basic Input/Output System)
|
AMI
|
|
Hardware egenskaber
|
10+1+1+1+1 Power Phase Design, ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), Dr.MOS MOSFET, VRM kølelegemedesign, DIY Friendly Design, aluminiumkølelegemedesign, ASRock FAN-Tastic Tuning, Nahimic Audio Enhacer, ASRock Polychrome RGB, præmonteret I/O-skjold
|
|
Diverse
|
|
|
Bredde
|
30.5 cm
|
|
Dybde
|
24.4 cm
|
|
Med software
|
ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software, ASRock A-Tuning, Drivers & Utilities
|
|
Overensstemmelsesstandarder
|
FCC, EuP Ready, ErP Ready
|
