CPU
|
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
|
|
Chipset
|
AMD B850
|
|
Memory
|
4x DDR5 DIMM Slots, Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) Max: 256GB
|
|
BIOS
|
256Mb AMI UEFI Legal BIOS with GUI support
|
|
Graphics
|
1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3, 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3
|
|
Audio
|
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
|
LAN
|
Dragon RTL8125BG - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
|
|
Wireless LAN
|
802.11axe 2x2 Wi-Fi 6E Module, Bluetooth 5.2
|
|
Slots
|
1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode, 1x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
|
|
Storage
|
1x Blazing M.2 Socket, supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, 2x Hyper M.2 Socket, supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 4x SATA3 6.0 Gb/s Connectors
|
|
USB
|
1x USB 3.2 Gen2 Type-C (Rear), 1x USB 3.2 Gen2 Type-A (Rear), 1x USB 3.2 Gen1 Type-C (Front), 6x USB 3.2 Gen1 Type-A (2 Rear , 4 Front), 8x USB 2.0 (4 Rear, 4 Front)
|
|

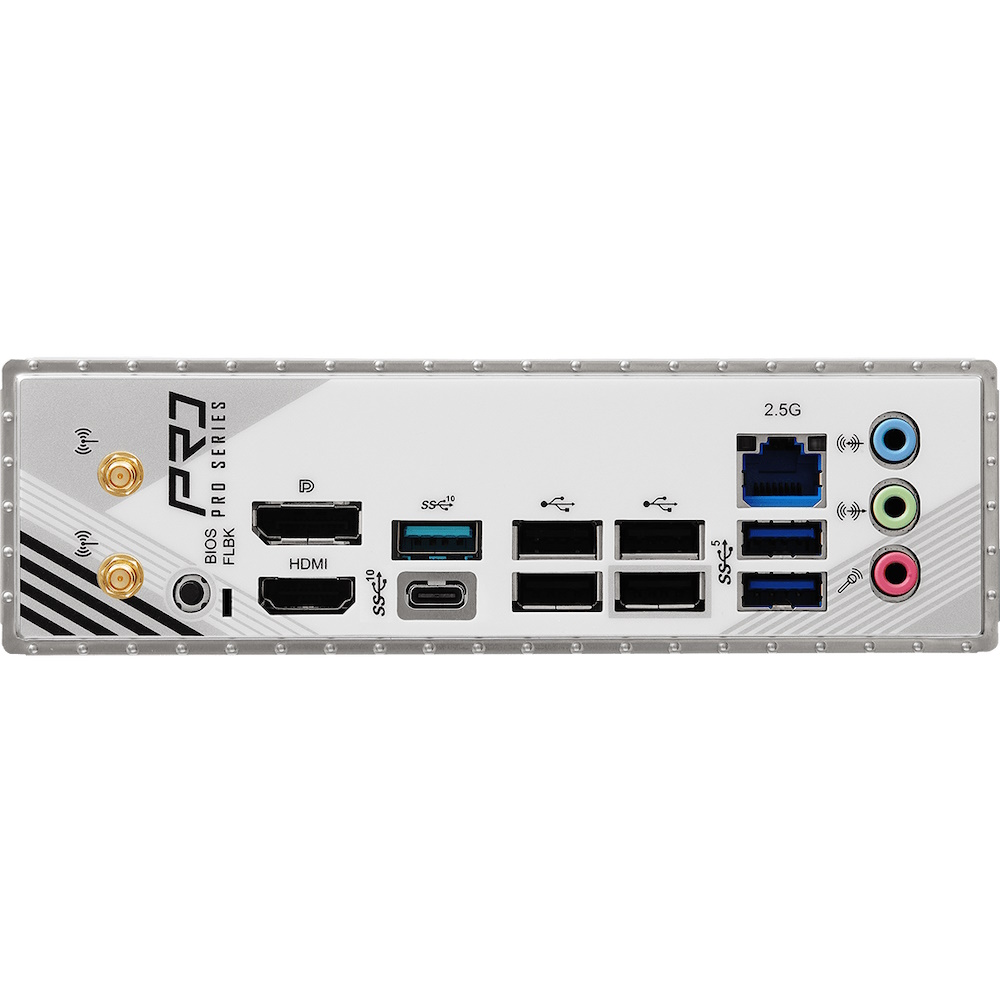

Rear Panel I/O
|
2x Antenna Ports, 1x HDMI Port, 1x DisplayPort 1.4, 1x USB 3.2 Gen2 Type-C Port (10 Gb/s), 1x USB 3.2 Gen2 Type-C Port, 2x USB 3.2 Gen1 Ports, 4x USB 2.0 Ports, 1x RJ-45 LAN Port, 1x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone
|
|
Accessories
|
2x SATA Data Cables, 2x ASRock WiFi 2.4/5/6 GHz Antennas, 1x Screw for M.2 Socket
|
|
Form Factor
|
Micro ATX Form Factor: 24.4 cm x 24.4 cm
|
|
Certifications
|
FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)
|
FRI FRAGT TIL PAKKESHOP PÅ ALLE ORDRER OVER 1000,- KRONER

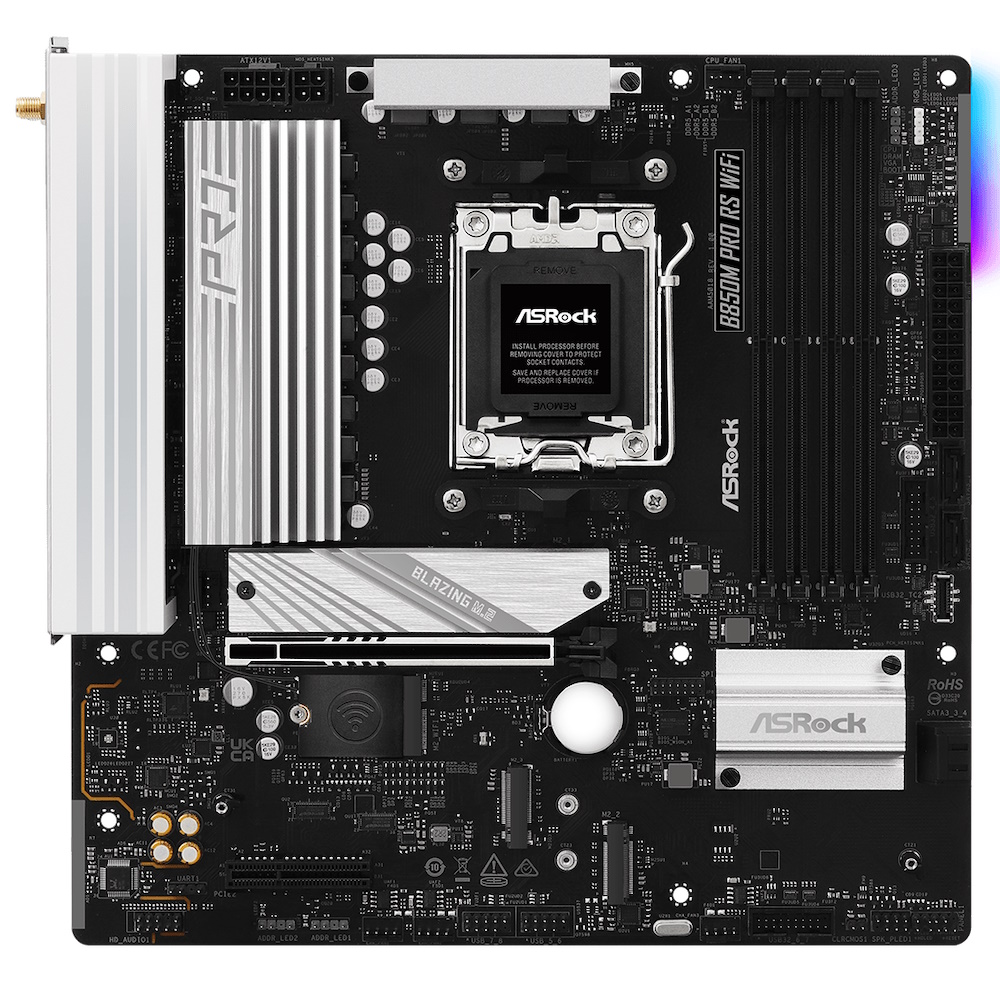

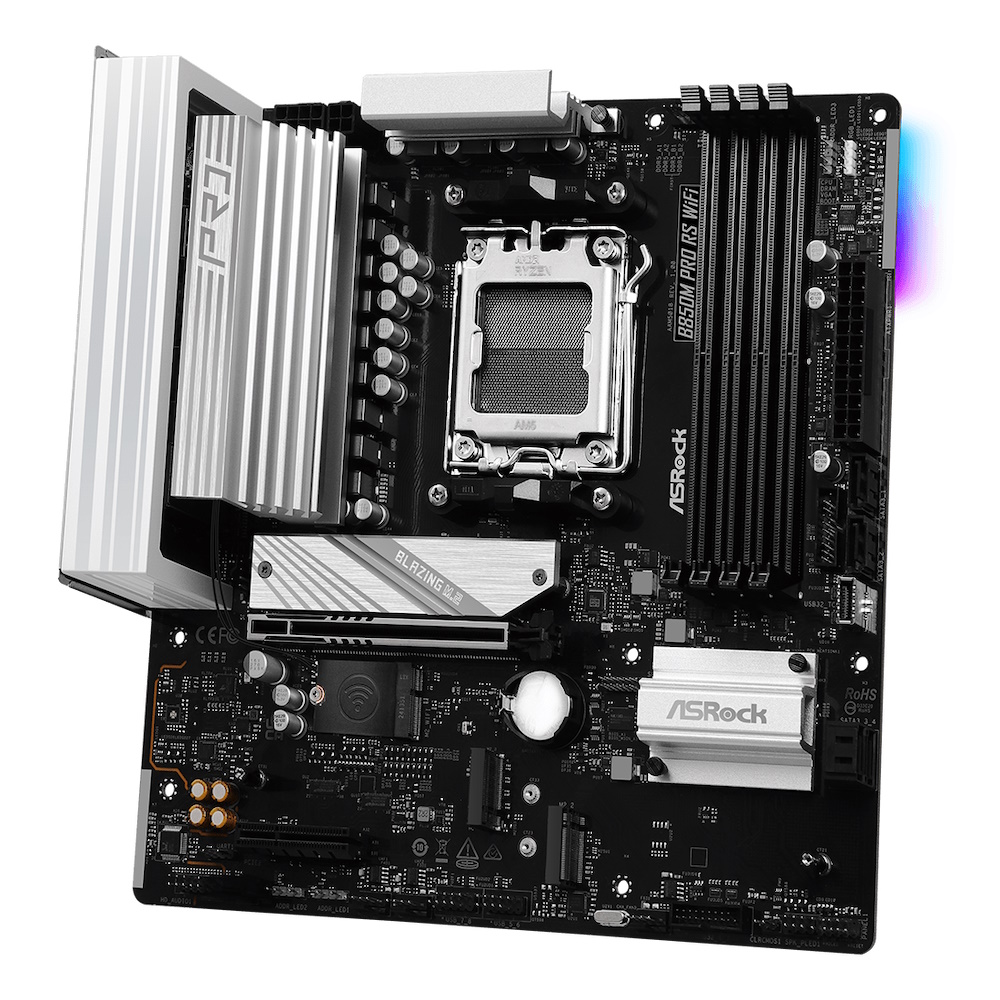

ASRock B850M Pro RS WiFi mATX AM5
ASRock B850M Pro RS WiFi - mATX - Socket AM5 - WiFi 6E - 4x DDR5 slots - HDMI 2.1 - DisplayPort 1.4 - Dragon RTL8125BG
Varenummer:
1002936292
Model:
90-MXBR7-A0UAYZ
EAN:
4711581490352
Producent:
Vægt:
1.29 kg
Specifikationer
Udv. specifikationer
|
Generelt
|
|
|---|---|
|
Chipsættype
|
AMD B850
|
|
Kompatible processorer
|
Ryzen (understøtter Ryzen 7000/8000/9000 Serien)
|
|
Max antal processorer
|
1
|
|
Processor-socket
|
Socket AM5
|
|
Produkttype
|
Bundkort - micro ATX
|
|
Understøttet RAM
|
|
|
Bus Clock
|
8000 MHz (O.C.)
|
|
Egenskaber
|
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), AMD EXPO-teknologi
|
|
Maks. størrelse
|
256 GB
|
|
Registreret eller buffer
|
Ikke bufferet
|
|
Teknologi
|
DDR5
|
|
Understøttet RAM-integritetskon
|
Ikke-ECC, ECC
|
|
Audio
|
|
|
Audio codec
|
Realtek ALC897
|
|
Overensstemmelsesstandarder
|
High Definition Audio
|
|
Type
|
HD Audio (8-kanaler)
|
|
LAN
|
|
|
Netværk controller
|
Dragon RTL8125BG
|
|
Netværks interfaces
|
2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
|
|
Ekspansion / Konnektivitet
|
|
|
Ekspansionsåbninger
|
1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 5.0 x16 | 1 x PCIe 4.0 x16 (x4-modus) | 1 x M.2 socket (Key E, til trådløs modul) | 3 x M.2 socket (2280 M.2 åbning)
|
|
Grænseflade (lagring)
|
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 | PCIe 5.0 -stikforbindelser: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 -stikforbindelser: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10
|
|
Interface
|
1 x HDMI | 1 x DisplayPort | 1 x USB 3.2 Gen 2 | 1 x USB-C 3.2 Gen 2 | 2 x USB 3.2 Gen 1 | 4 x USB 2.0 | 1 x højttaler - mini-jack | 1 x mikrofon - mini-jack | 1 x audio linje-ind - mini-jack | 2 x antenne | 1 x LAN (2.5Gigabit Ethernet)
|
|
Interne interfaces
|
1 x USB-C 3.2 Gen 1 - intern stik | 4 x USB 3.2 Gen 1 - intern stik | 4 x USB 2.0 - intern stik | 1 x SPI - intern stik | 1 x audio - intern stik
|
|
Strømkontakter
|
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt, 4-pin ATX12V konnektor
|
|
Egenskaber
|
|
|
BIOS-egenskaber
|
UEFI BIOS
|
|
BIOS-type (Basic Input/Output System)
|
AMI
|
|
Hardware egenskaber
|
8+2+1 Phase Power Design, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, Dr.MOS MOSFET, 6 Layer PCB, DIY Friendly Design, aluminiumkølelegemedesign, ASRock FAN-Tastic Tuning, ASRock Polychrome RGB, Hi-Density Power Connectors, præmonteret I/O-skjold
|
|
Diverse
|
|
|
Bredde
|
24.4 cm
|
|
Dybde
|
24.4 cm
|
|
Med software
|
ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC, ASRock A-Tuning
|
|
Overensstemmelsesstandarder
|
FCC, ErP Ready, EuP Ready
|
