Radxa Rock Pi 4 Model B Plus OP1 2GB/16GB

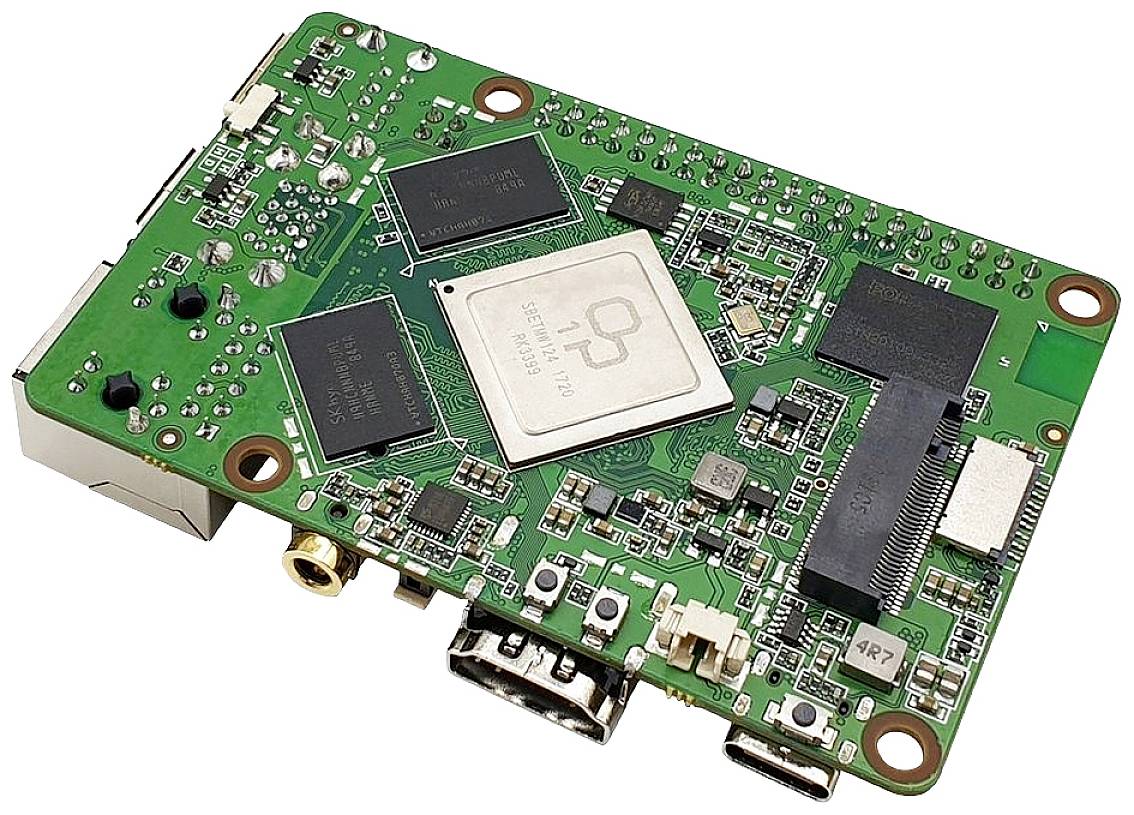

Rock Pi 4 Model B+ OP1 2GB/16GB (Dualband 2,4/5GHz WLAN/Bluetooth 5.0) internal Antenna
847,00DKK677,60DKK ekskl. moms
-
Varenummer 999522003
Model RS114B+D2E16
Producent ALLNET
EAN 4038816206084
Vægt 0.06 kg
-
Informationer/specifikationer på siden er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder.
| CPU/SOC | Rockchip OP1 - Dual Cortex-A72, freqency 2.0Ghz with quad Cortex-A53, frequency 1.6Ghz |
| GPU | Mali T860MP4 gpu |
| GPU 3D support | OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11. |
| Ram | 2GB LPDDR4@3200Mb/ |
| Storage | 16G on board eMMC, microSD card, M.2 NVMe SSD |
| M.2 SSD | up to 2T M.2 NVME SSD |
| MicroSD card | up to 128G uSD card |
| HDMI | Full size HDMI 2.0 up to 4k@60(Type A) |
| MIPI DSI | MIPI DSI 2 lanes via FPC connector HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode. |
| 3.5mm Headphone Jack | HD codec that supports up to 24-bit/96kHz audio |
| MIPI CSI | MIPI CSI 2 lanes via FPC connector, support up to 800MP camera(1mm pitch connector) |
| Wireless | WiFi5 / BT5 |
| USB | USB 3.0 OTG x1 hardware switch for host/device switch, upper one - USB 3.0 HOST x1 dedicated USB3.0 channel, lower one - USB 2.0 HOST x2 |
| Ethernet | GbE LAN with PoE support (additional HAT is required for powering from PoE) |
| Power | USB C PD (Support USB Type C PD 2.0, 9V/2A, 12V/2A) - Qualcomm® Quick Charge™ (Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A) - GPIO +5v (Power from GPIO pin2&4 GPIO +5V) |
