Produktbeskrivelse | goobay Two-Device Antenna Amplifier - antennesignalforstærker for TV |
Produkttype | Antennesignalforstærker |
Beregnet til | TV |
Dimensioner (B x D x H) | 86 mm x 58.5 mm x 77.5 cm |
Vægt | 214 g |
Generelt | |
---|---|
Bredde | 86 mm |
Dybde | 58.5 mm |
Frekvensinterval | 47 - 862 MHz |
Højde | 77.5 cm |
Produkttype | Antennesignalforstærker |
Vægt | 214 g |
Antennesignalforstærkere til mobiltelefoner | |
Impedans | 75 Ohm |
Maks. gevinst | 15 dB |

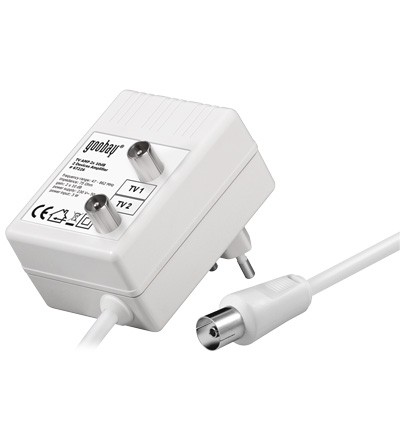

two device amplifier
1 x input, 2 x output; 2 x 10 dB gain
A CATV (broadband cable)- fitting two device amplifier
has to be interconnected to the existing antenna
installation and affords at the output possible
connections for two receivers
(TV or radio, depending on IEC (antenna-) connection).
technical data:
- frequency range: 47 - 862 MHz
- impedance: 75 Ohm
- input: ~ 1,3m coaxial cable with IEC jack (female)
- output: 2 x IEC plug (male)
- gain: 2 x 10 dB
- power supply: 230 V~ 50 Hz
- power input: 3 W
