CPU support
|
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
|
|
Socket
|
AM5
|
|
Chipset
|
AMD B840
|
|
Memory
|
4x DDR5 UDIMM - Max 256GB
|
|
Memory Support
|
DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Non-ECC, Un-buffered memory
|
|
Onboard Graphics Connectors
|
1x HDMI
|
|
Slots
|
2x PCI-E x16 slot (1x 4.0 x16, 1x 3.0 x4)
|
|
Audio
|
Realtek® ALC897
|
|
Storage
|
3x M.2 (2x 4.0 x4, 1x 3.0 x4), 4x SATA 6G
|
|
USB
|
4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front), 1x USB 5Gbps Type C (Front), 1x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear)
|
|
LAN
|
Realtek® 8125D 2.5G LAN
|
|
Wireless
|
Wi-Fi 6E, Bluetooth 5.3
|
|

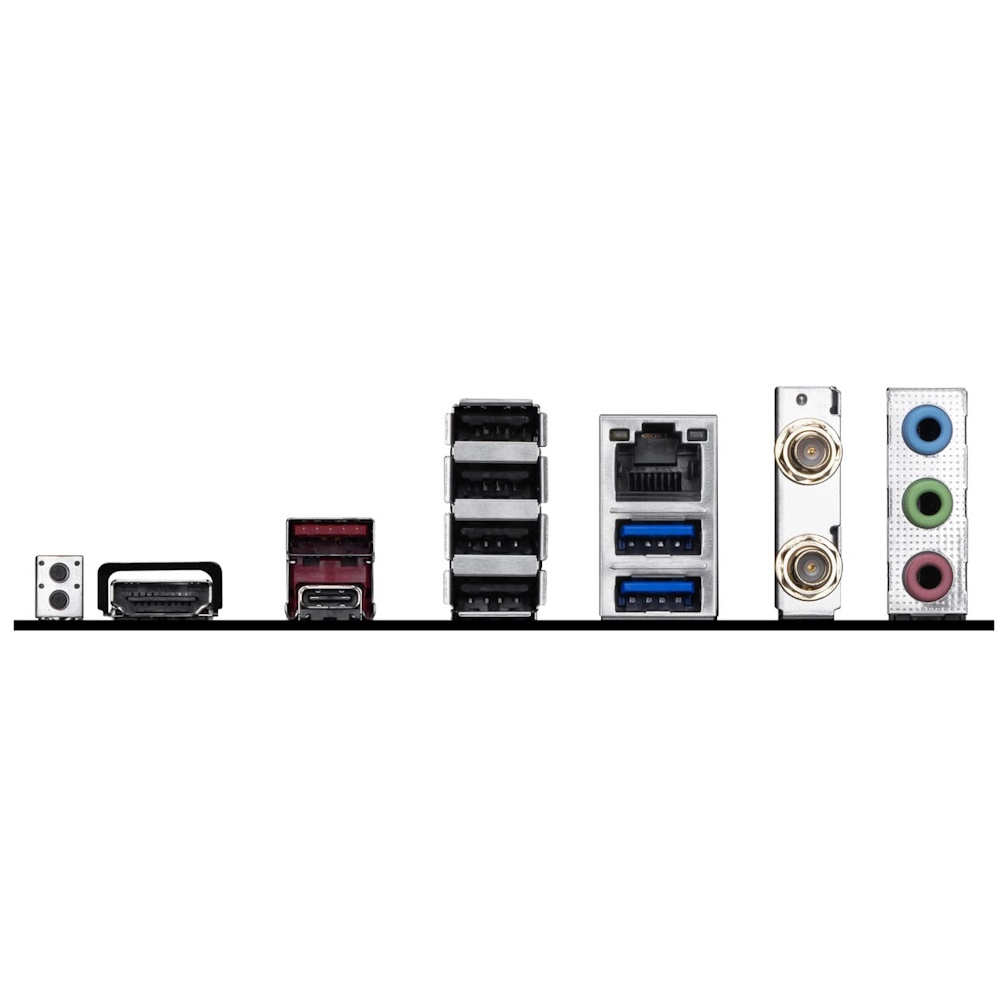

Back I/O
|
1x USB 10Gbps Type-A, 4x USB 2.0, 1x 2.5G LAN, 2x Antenna, 3x Audio sockets, 1x HDMI, 1x USB 10Gbps Type-C, 2x USB 5Gbps Type-A
|
|
PCB Info
|
ATX - 243.84 x 304.8 mm
|
|
Included
|
EZ M.2 Clip II Remover, 2x EZ M.2 Clip II, EZ Wi-Fi Antenna, Sata Cable, European Regulatory Notice, Quick Installation Guide
|
FRI FRAGT TIL PAKKESHOP PÅ ALLE ORDRER OVER 1000,- KRONER

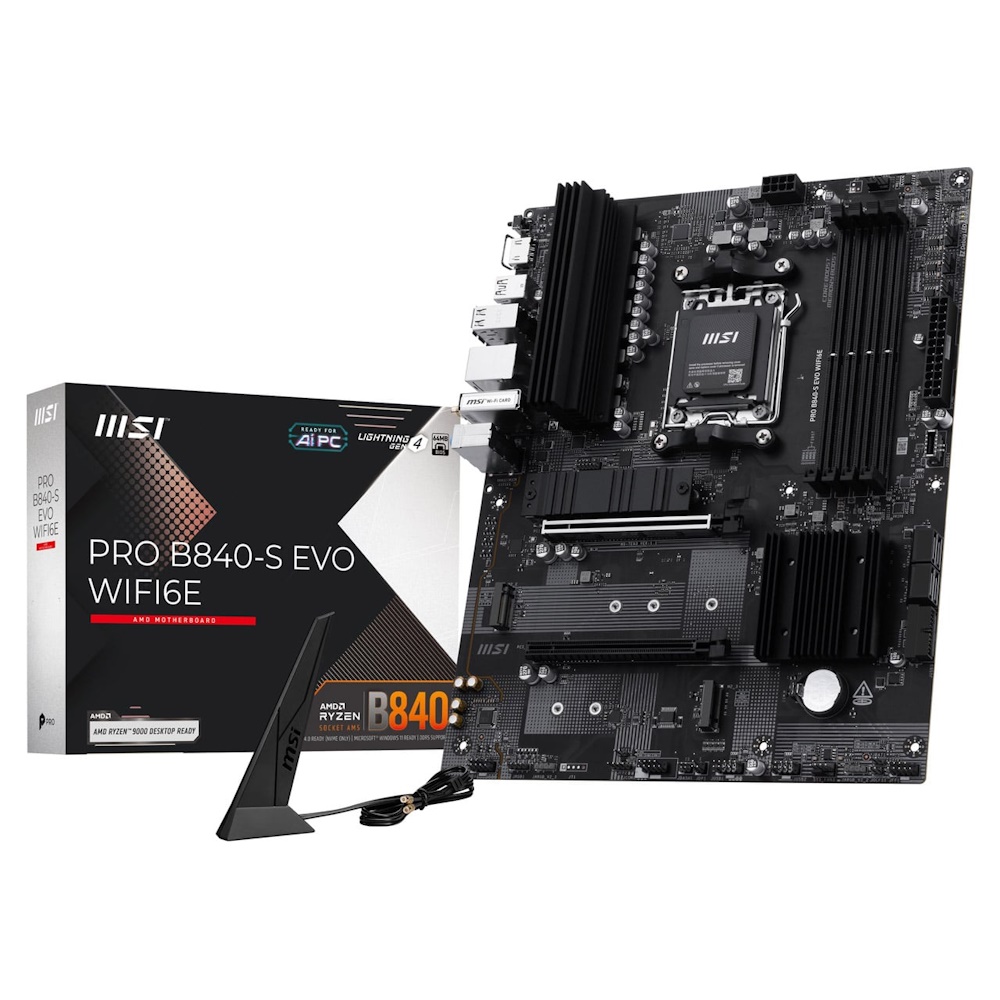

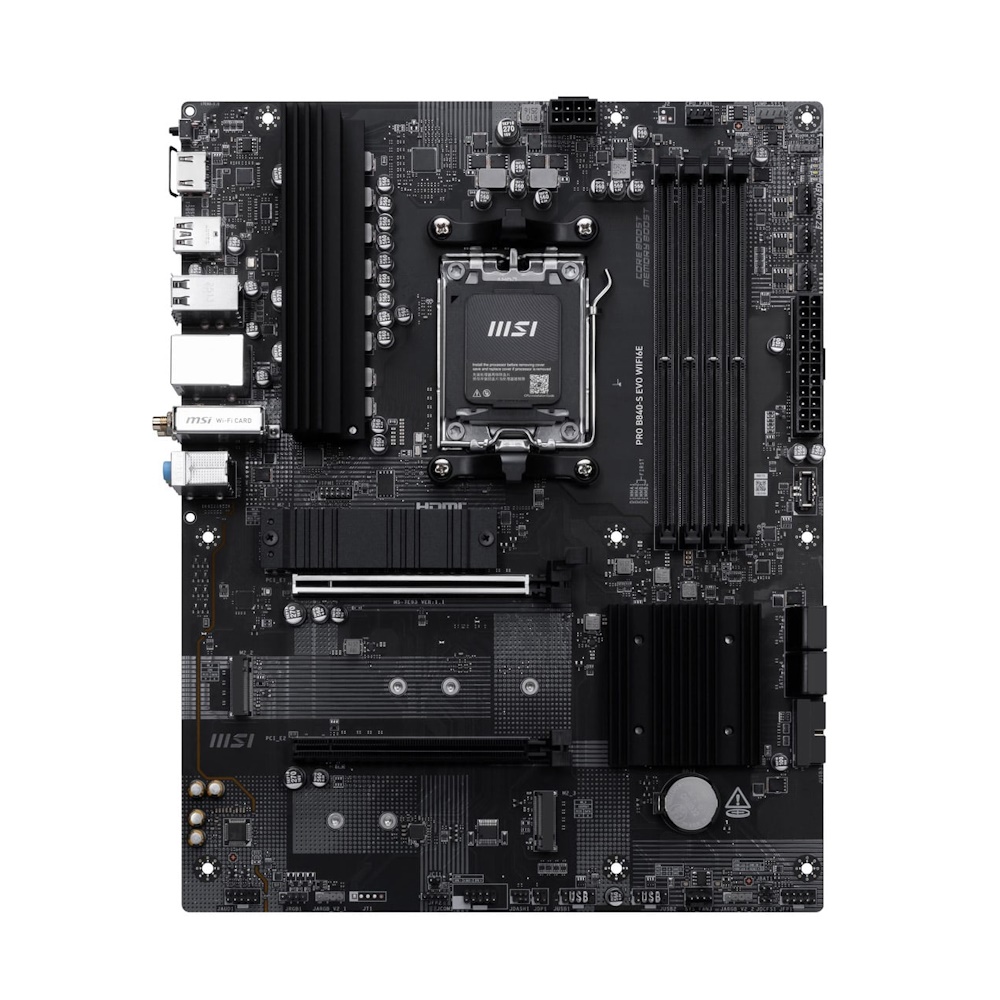

MSI Pro B840-S Evo WiFi6E ATX AM5
MSI Pro B840-S Evo WiFi6E - ATX - Socket AM5 - 4x DDR5 slots - HDMI - USB 10Gbps - Realtek 8125D - WiFi 6E
DKK 1 168,00
DKK 934,40 ekskl. moms
DKK 1 168,00
DKK 934,40 ekskl. moms
Varenummer:
1003781949
Model:
7E93-001R
EAN:
4711377404167
Producent:
Vægt:
1.47 kg
Specifikationer
Udv. specifikationer
|
Generelt
|
|
|---|---|
|
Chipsættype
|
AMD B840 / Nuvoton NCT6687D-R
|
|
Kompatible processorer
|
(understøtter Ryzen 7000/8000/9000 Serien)
|
|
Max antal processorer
|
1
|
|
Processor-socket
|
Socket AM5
|
|
Produkttype
|
Bundkort - ATX
|
|
Understøttet RAM
|
|
|
Bus Clock
|
8000 MT/s (O.C.), 5600 MT/s (O.C.), 5600 MT/s, 4800 MT/s, 6400 MT/s (O.C.)
|
|
Egenskaber
|
AMD EXPO-teknologi, dobbelt kanal hukommelses arkitektur
|
|
Maks. størrelse
|
256 GB
|
|
Registreret eller buffer
|
Ikke bufferet, clocked unbuffered
|
|
Teknologi
|
DDR5
|
|
Understøttet RAM-integritetskon
|
Ikke-ECC
|
|
Audio
|
|
|
Audio codec
|
Realtek ALC897
|
|
Overensstemmelsesstandarder
|
High Definition Audio
|
|
Type
|
HD Audio (8-kanaler)
|
|
LAN
|
|
|
Netværk controller
|
Realtek RTL8125D
|
|
Netværks interfaces
|
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
|
|
Ekspansion / Konnektivitet
|
|
|
Ekspansionsåbninger
|
1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 4.0 x16 | PCIe 3.0 x4 | 2 x M.2 socket (2260/2280 M.2 Key M-åbning) | 1 x M.2 socket (2260/2280/22110 M.2 Key M åbning) | 1 x M.2 socket (Key E)
|
|
Grænseflade (lagring)
|
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 | PCIe 3.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1
|
|
Interface
|
1 x HDMI | 1 x USB-C 3.2 Gen 2 | 2 x USB 3.2 Gen 1 | 1 x USB 3.2 Gen 2 | 4 x USB 2.0 | 1 x LAN (2.5Gigabit Ethernet) | 1 x audio linje-ind - mini-jack | 1 x mikrofon - mini-jack | 1 x audio linje-ud - mini-jack | 2 x antenne
|
|
Interne interfaces
|
4 x USB 2.0 - intern stik | 4 x USB 3.2 Gen 1 - intern stik | 1 x USB-C 3.2 Gen 1 - intern stik | 1 x audio - intern stik | 1 x seriel - intern stik | 1 x SPI - intern stik
|
|
Strømkontakter
|
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
|
|
Egenskaber
|
|
|
BIOS-egenskaber
|
MSI ClickBIOS, UEFI BIOS, ACPI 6,5 support, SMBIOS 3,7 support
|
|
BIOS-type (Basic Input/Output System)
|
AMI
|
|
Hardware egenskaber
|
2oz Copper PCB, BIOS FlashBack-knap, Clear CMOS Button, Cooling Wizard, EZ Debug LED, EZ LED control, EZ Memory Detection, Frozr AI Cooling, lightning gen4-løsning, MSI AI Engine, MSI AI LAN Manager, MSI Audio Boost, MSI Companion, MSI Core Boost, MSI EZ DIY, MSI Memory Boost, MSI Mystic Light, MSI Steel Armor II, 6 Layer PCB, 7+2+1 fase strømdesign, M.2 Shield FROZR, MSI EZ OC, MSI Stainless Steel Back I/O, overstrømsbeskyttelse, transiente spændingsdæmpere, Enlarged Chipset Heatsink
|
|
Diverse
|
|
|
Bredde
|
30.5 cm
|
|
Dybde
|
24.4 cm
|
|
Med software
|
Drivers & Utilities, MSI Center, Adobe Creative Cloud (gratis prøve), AIDA64 Extreme - MSI Edition, MSI CPU-Z, Norton 360, Dropbox
|
|
Medfølgende ledninger
|
1 x Seriel ATA kabel
|
|
Overensstemmelsesstandarder
|
JEDEC
|
|
Udstyr inkluderet
|
EZ Wi-Fi antenne, 3 x EZ M.2 clip II, EZ M.2 klips II fjerner, IO-skjold
|
