Product no 1000773043
Model R0Q76B
Brand Hewlett Packard Ente
EAN 4549821495375
Weight 5 kg

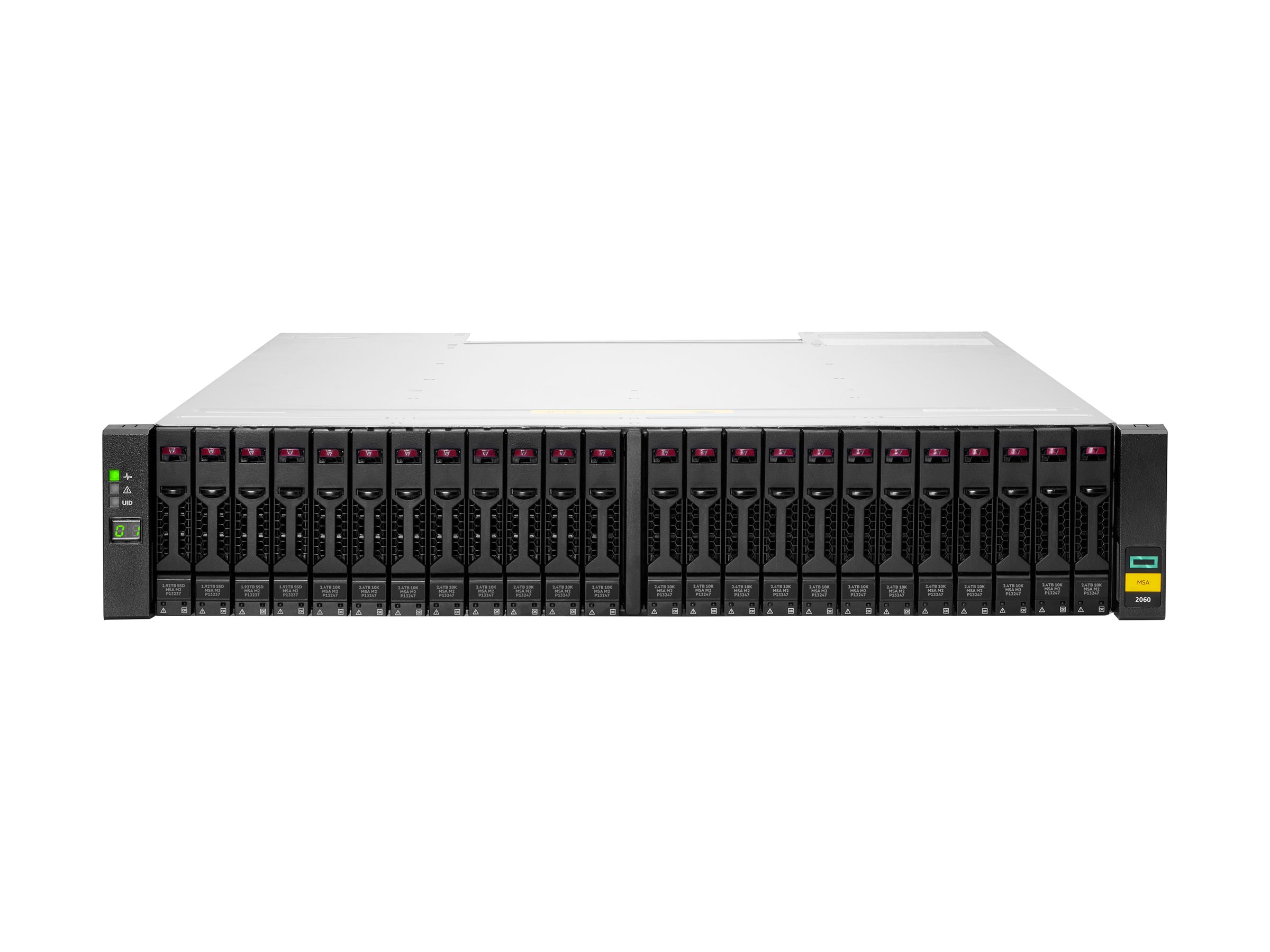

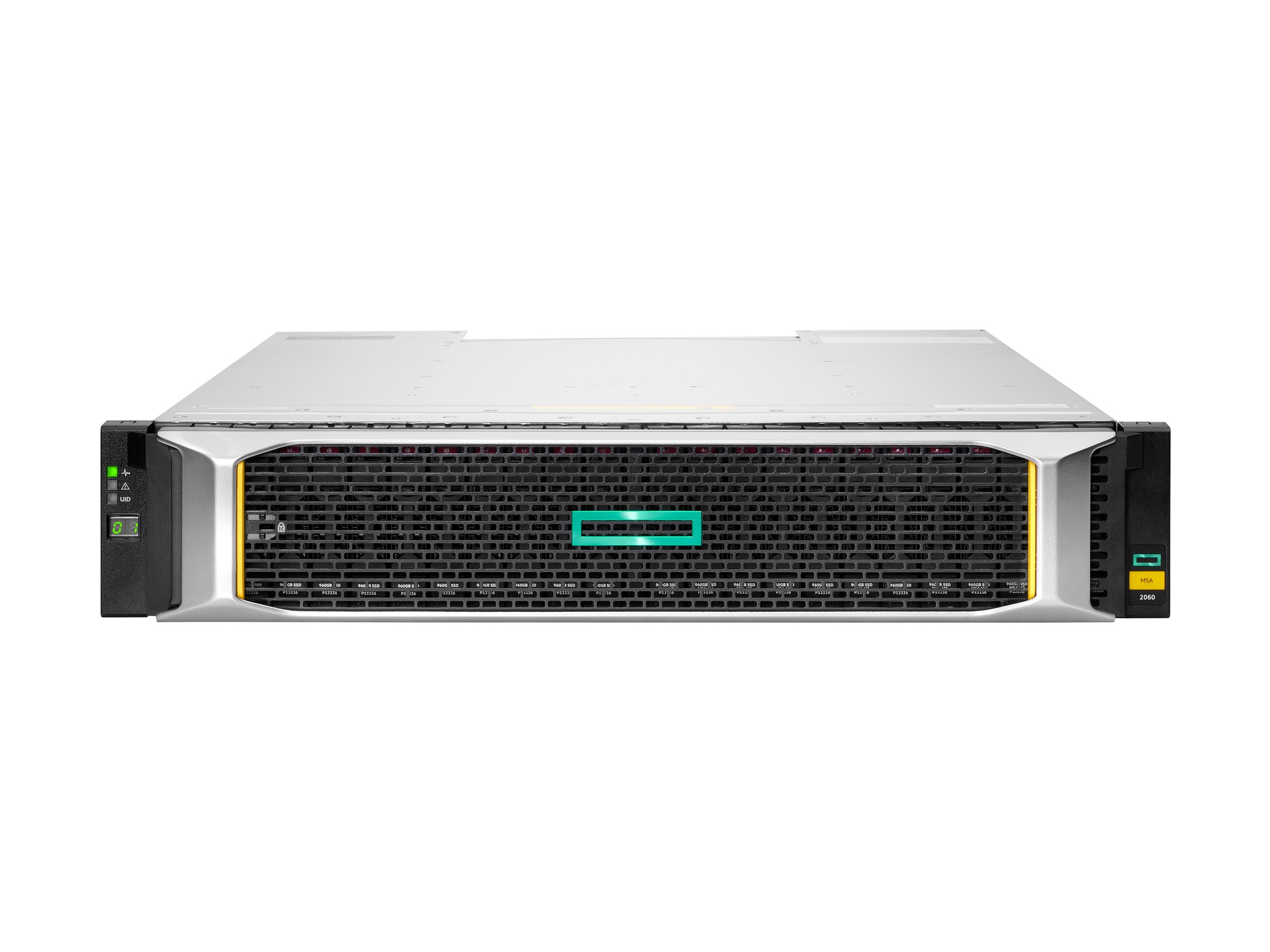

Produktbeskrivelse | HPE Modular Smart Array 2060 10GbE iSCSI SFF Storage - harddisk-array |
Enhedstype | Harddisk-array |
Pakningstype | Rackversion - 2U |
Totale array-kapacitet | 0 TB |
Maks. antal understøttet | 921.6 TB |
Grænseflade | iSCSI (25 GbE) |
Maksimum antal LUN'er | 512 |
Installeret udstyr/antal moduler | 0 (installeret) / 24 (maks.) |
Understøttede drev | SAS-3 |
Controller for lagring | RAID (SAS 12Gb/s) - RAID RAID 0, 1, 3, 5, 6, 10, 50 |
Controller for lagring Antal | 2 |
Harddisk | Ingen HDD |
OS nødvendig | HP-UX, SuSe Linux, Apple MacOS X, Microsoft Windows, Red Hat Enterprise Linux, HP OpenVMS, Microsoft Windows Server 2012, VMware ESXi 5.x, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012 R2 med Hyper-V, VMware ESXi 6.x |
Overskudsspænding | Ja |
Dimensioner (B x D x H) | 44.5 cm x 50.8 cm x 8.9 cm |
Vægt | 5 kg |
Miljømæssige standarder | ENERGY STAR kvalificeret |
Producentgaranti | 3 års garanti |
General | |
---|---|
Device Type | Hard drive array |
Enclosure Type | Rack-mountable - 2U |
Chassis | |
Installed Devices / Modules Qty | |
Supported Devices / Modules Qty | 24 |
Supported Drives | SAS-3 |
Storage | |
HDD Array External Interface | iSCSI (25 GbE) |
Max Supported Capacity | 921.6 TB |
Maximum LUNs | 512 |
Total Array Capacity | 0 TB |
Processor | |
CPU | No CPU |
Storage Controller | |
Cache / Buffer Size (Max) | 24 GB |
Data Transfer Rate | 1.2 GBps |
Installed Qty | 2 |
Interface Type | SAS 12Gb/s |
Max Storage Devices Qty | 240 |
RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50 |
Type | RAID (SAS-3) |
Storage Controller (2nd) | |
Installed Qty | 2 |
Hard Drive | |
Type | No HDD |
Expansion / Connectivity | |
Expansion Bays | 24 (total) / 24 (free) - 2.5" SFF |
Interfaces | 8 x iSCSI 25Gb/s | 2 x mini-USB 2.0 (management) | 2 x Ethernet 1000Base-T (management) - RJ-45 |
System Requirements | |
OS Required | HP-UX, SuSe Linux, Apple MacOS X, Microsoft Windows, Red Hat Enterprise Linux, HP OpenVMS, Microsoft Windows Server 2012, VMware ESXi 5.x, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012 R2 with Hyper-V, VMware ESXi 6.x |
Miscellaneous | |
Features | SNMP support, SMTP support |
Included Accessories | Rack mounting kit |
Environmental Standards | |
ENERGY STAR Certified | Yes |
Power | |
Max Supported Qty | 2 |
Power Device | 2 x internal power supply - hot-plug |
Power Provided | 764 Watt |
Power Redundancy | Yes |
Power Redundancy Scheme | 1+1 |
Dimensions & Weight | |
Depth | 50.8 cm |
Height | 8.9 cm |
Weight | 5 kg |
Width | 44.5 cm |
Manufacturer Warranty | |
Service & Support | Limited warranty - parts - 3 years |
Environmental Parameters | |
Sound Emission | 74 dBA |
TechnicalSpecifications | |
---|---|
Capacity | 1843.2 TB with SFF expansion / 2344.32 TB with LFF expansion (with maximum expansion) |
Form factor | 2U |
Storage expansion options | 24 drive bay 2060 SFF drive enclosure and/or 12 drive bay 2060 LFF drive enclosure (add up to 9) |
Systems Insight Manager support | No |
Storage mirroring support | No |
SAN backup support | Yes |
Clustering support | Yes |
Host interface | 8-ports 10/25GbE iSCSI, 4 ports per controller |
Drive description | Up to 24 SFF HDD and/or SSD per array model |
Storage controller | (2) HPE MSA 2060 10/25Gb iSCSI storage controllers, 4-ports each |
Compatible operating systems | Windows Server 2022 Windows Server 2019 Windows Server 2016 VMWare vSphere 6.7 Red Hat Linux 8 SuSE SLES 15 |
Warranty | Three-year limited warranty, parts exchange next business day delivery. Disk enclosures, hard drives and options for the HPE MSA 2060 carry their own warranty. |
Product dimensions (metric) | 8.9 x 44.5 x 50.8 cm |
Weight | 5 kg |
