Product no 998434639
Model 90-MXBEE0-A0UAYZ
Brand
Go to brand's website
EAN 4710483932786
Weight 1.34 kg

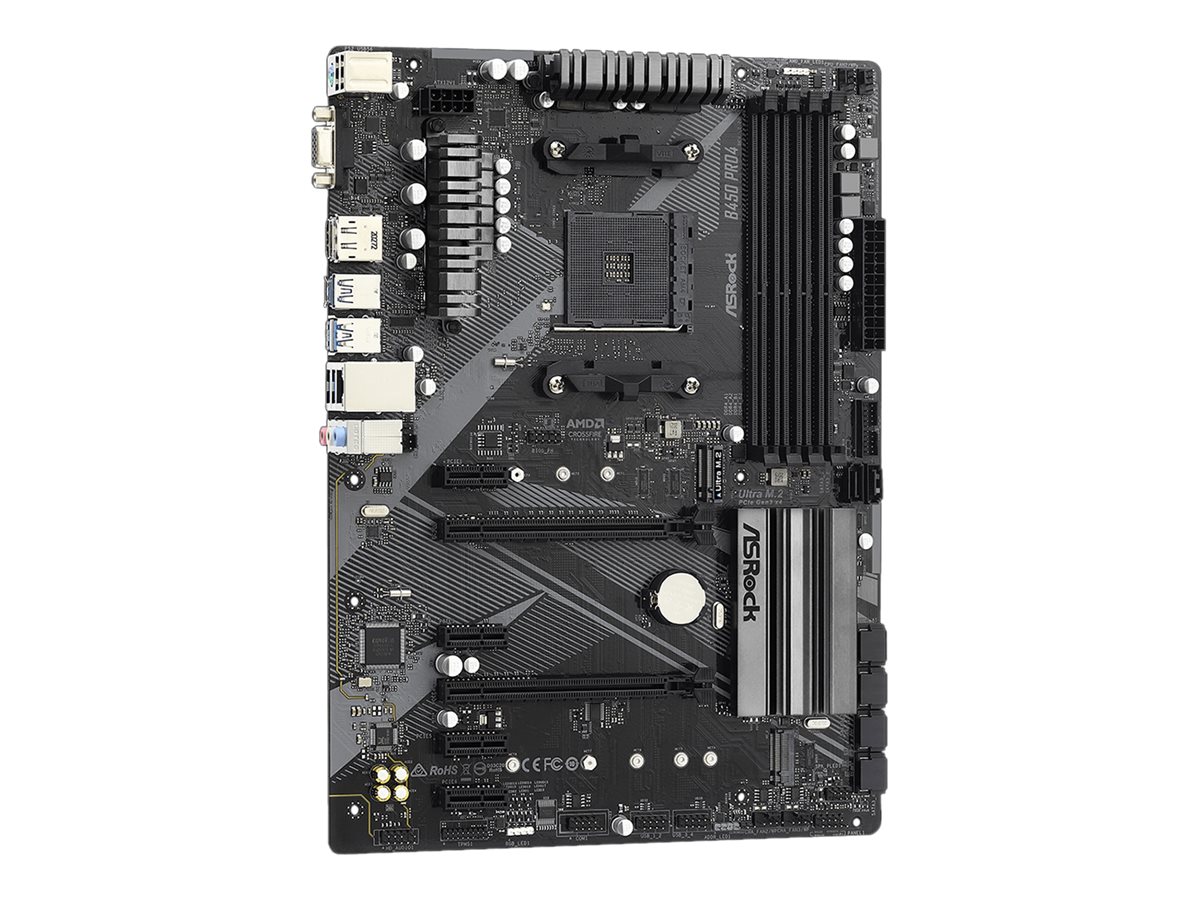

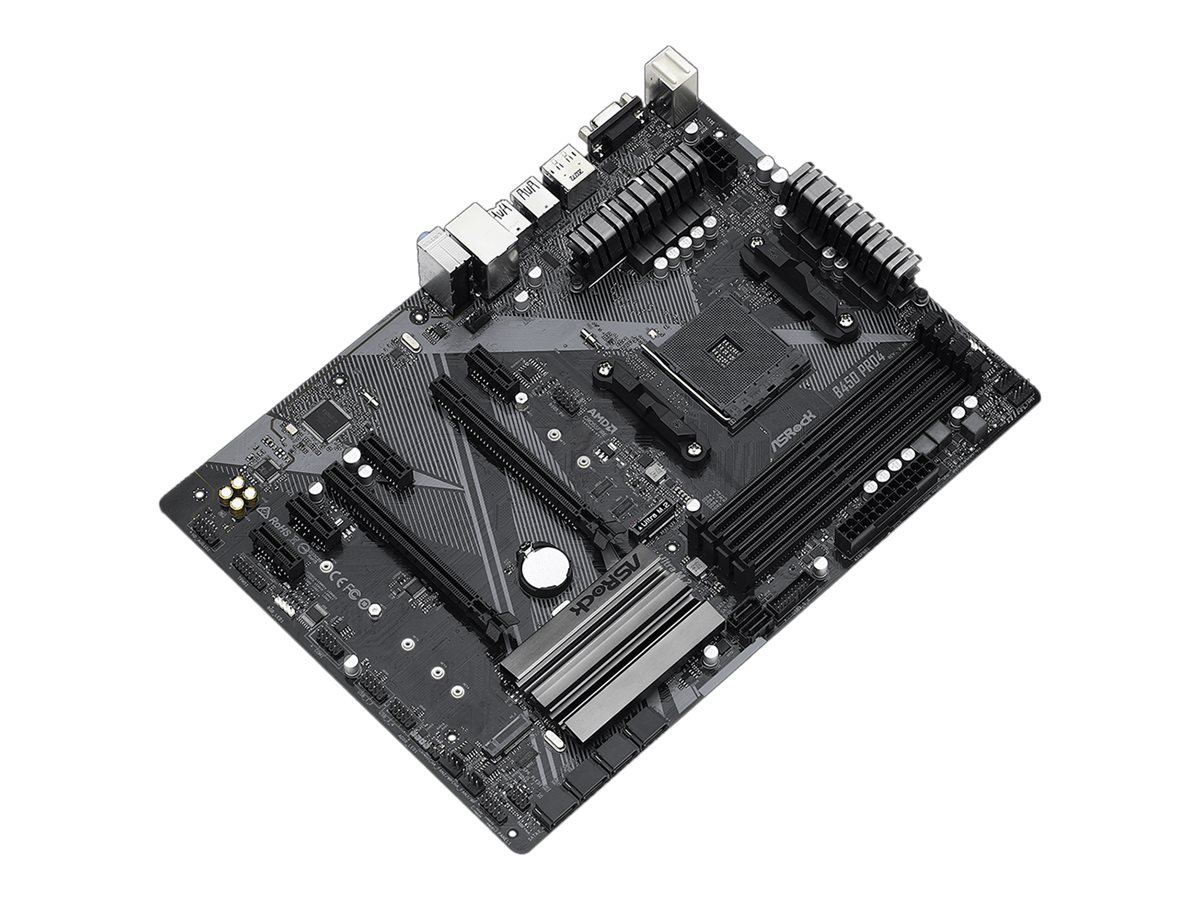

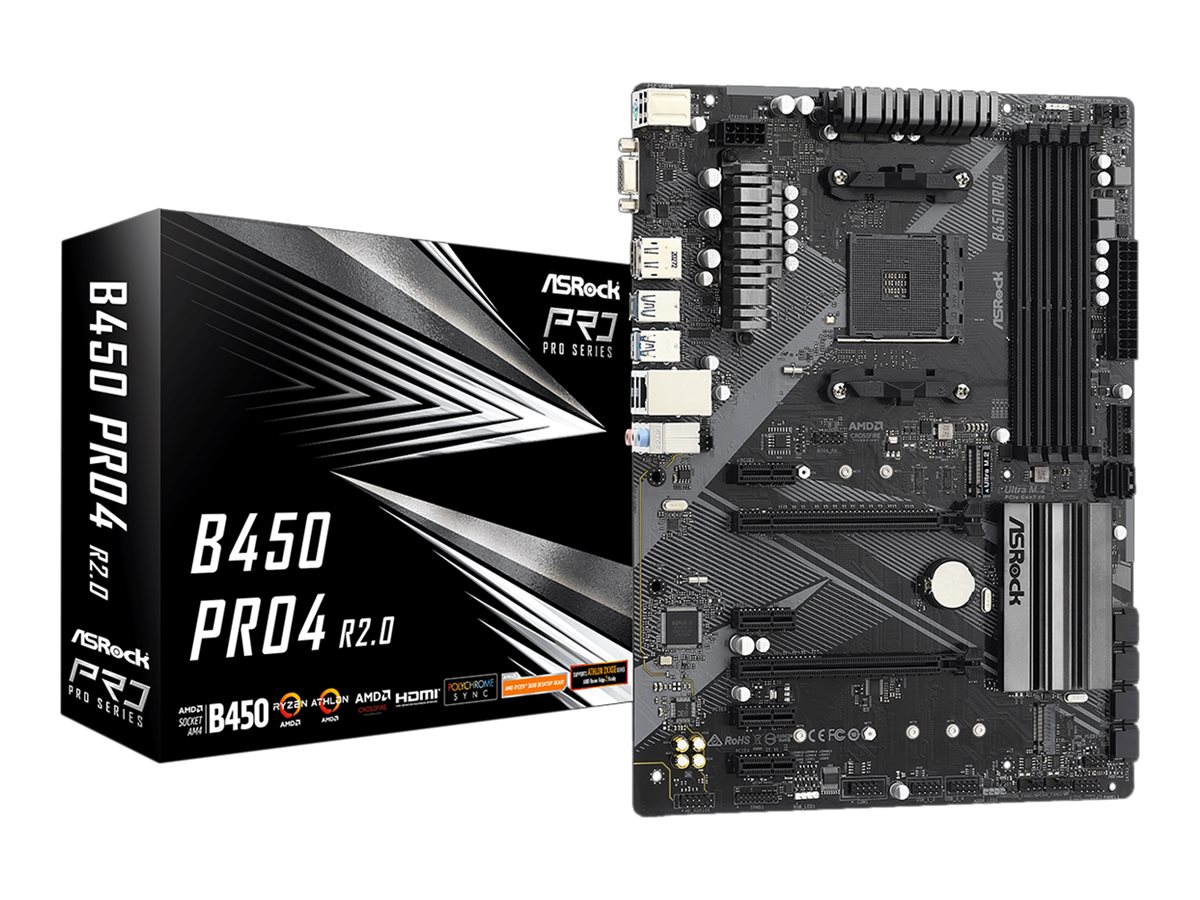

Produktbeskrivelse | ASRock B450 Pro4 R2.0 - bundkort - ATX - Socket AM4 - AMD B450 |
Produkttype | Bundkort - ATX |
Chipsættype | AMD B450 |
Processor-socket | 1 x Socket AM4 |
Kompatible processorer | Ryzen |
Max RAM-størrelse | 128 GB |
RAM understøttet | 4 DIMM åbninger - DDR4, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet |
Lagringsporte | 4 x SATA-600 (RAID), 2 x SATA-600, 1 x M.2, 1 x Ultra M.2 |
USB / FireWire porte | 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
Maks. allokeret RAM-størrelse | 2 GB |
Audio | HD Audio (8-kanaler) |
LAN | Gigabit Ethernet |
General | |
---|---|
Chipset Type | AMD B450 |
Compatible Processors | Ryzen |
Max Processors Qty | 1 |
Processor Socket | Socket AM4 |
Product Type | Motherboard - ATX |
Supported RAM | |
Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3200 MHz |
Features | Dual channel memory architecture, supported ECC modules operate in non-ECC mode |
Max Size | 128 GB |
Registered or Buffered | Unbuffered |
Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
Technology | DDR4 |
Graphics | |
Max Allocated RAM Size | 2 GB |
Audio | |
Audio Codec | Realtek ALC892/ALC897 |
Compliant Standards | High Definition Audio |
Type | HD Audio (8-channel) |
LAN | |
Network Controller | Realtek RTL8111H |
Network Interfaces | Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 2 x PCIe 3.0 x16 (dual x16, x4 mode; single card: x16 mode) | 4 x PCIe 2.0 x1 |

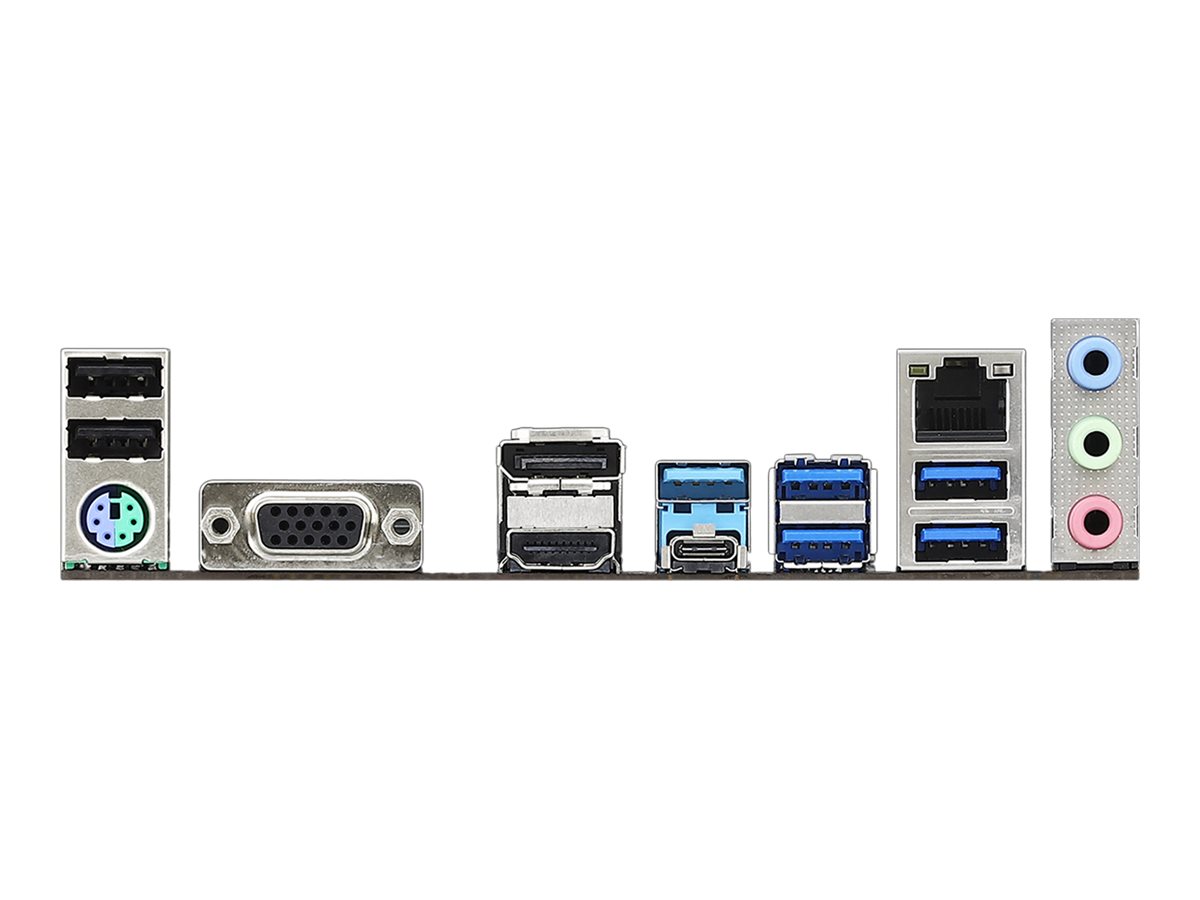

Interfaces | 1 x PS/2 keyboard / mouse | 1 x LAN (Gigabit Ethernet) | 1 x VGA | 1 x DisplayPort | 1 x HDMI | 2 x USB 2.0 | 4 x USB 3.2 Gen 1 | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x USB 3.2 Gen 2 | 1 x US |
Internal Interfaces | 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x serial - header | 1 x audio - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2 | PCIe 3.0 -connectors: 1 x Ultra M.2 | SATA-600 -connectors: 2 x 7pin Serial ATA |
Features | |
BIOS Features | Multilingual BIOS, JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support |
BIOS Type | AMI |
Hardware Features | ASRock Instant Flash, HDCP compliant, 15µ Gold Contact, Loss-less content protection technology, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot |
Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
Sleep / Wake Up | Wake on LAN (WOL) |
Miscellaneous | |
Cables Included | 2 x Serial ATA cable |
Compliant Standards | Plug and Play, FCC, EuP Ready, ErP Ready, DisplayPort 1.2, HDCP 1.4 |
Depth | 22.4 cm |
Included Accessories | I/O back plate, 2 x M.2 screws |
Software Included | Drivers & utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN, ASRock Polychrome RGB |
Width | 30.5 cm |
